Nilspad

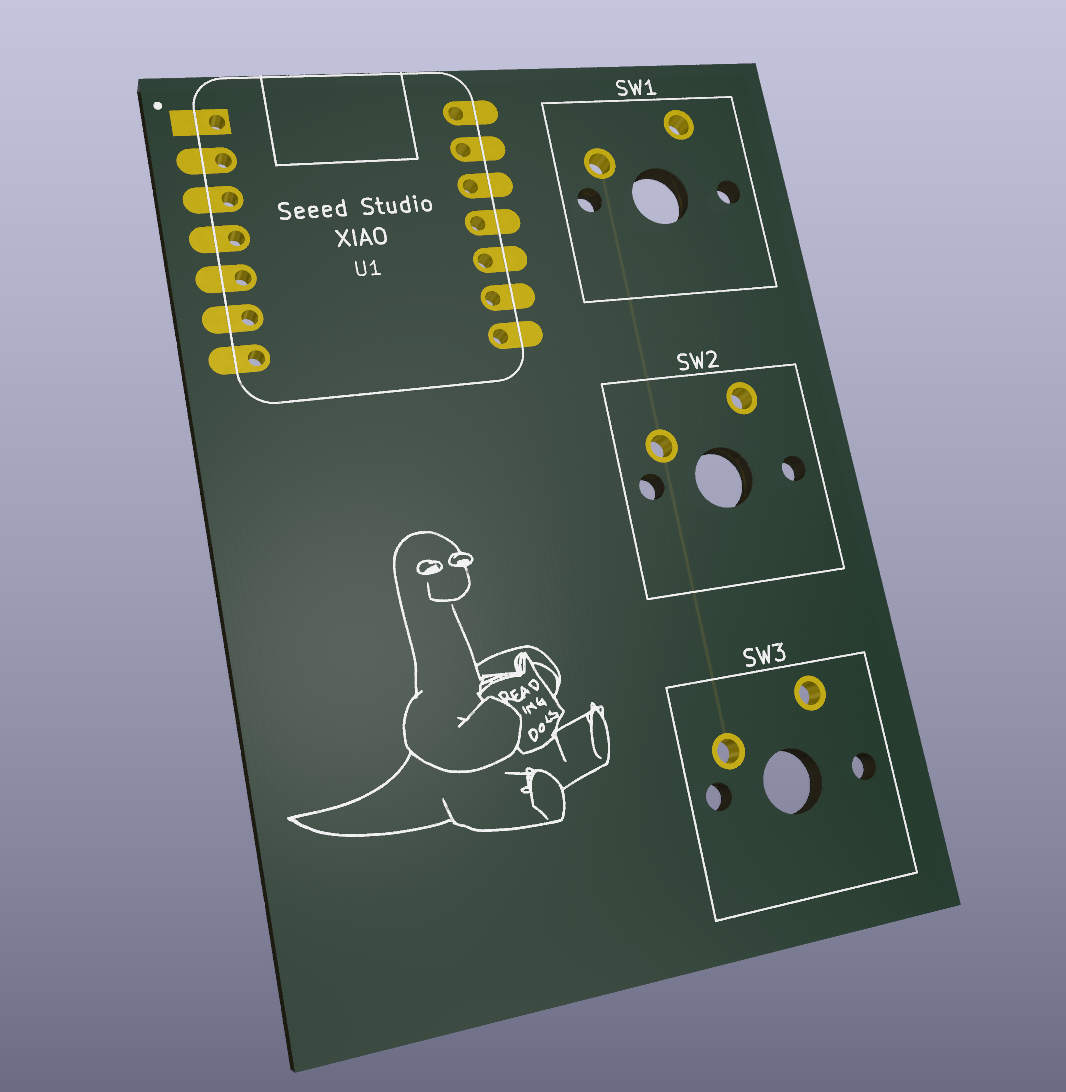

About the Nilspad PCB
Nilspad is an open source PCB design by Nils1024, published on GitHub. It is a 2-layer board measuring 42 × 58 mm, with 4 components from 2 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 3 switches and 1 IC.
From the project
View it in your web browser: [](https://kicanvas.org/?github=https://github.com/Nils1024/nilspad/tree/main/pcb)
Main components on the Nilspad
Nilspad bill of materials (BOM)
4 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 3 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3 |
Nilspad design files
The KiCad project lives in the Nils1024/nilspad repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/nilspad.kicad_pcb
- Schematicpcb/nilspad.kicad_sch
- BOMBOM.csv
Nilspad: common questions
How big is the Nilspad PCB?
The Nilspad measures 42 × 58 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Nilspad?
4 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Nilspad design files?
From the Nils1024/nilspad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Nilspad design in my own project?
The repository has no license, so all rights stay with Nils1024. Use it as a reference, and ask the author before reusing the design.
