Aeromax throttle module
About the Aeromax throttle module
Aeromax throttle module is an open source PCB design by ninemind, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 42 × 15 mm, with 5 components from 4 distinct parts.
Other key parts include the MT6701CT-STD-R. By type, the board carries 2 crystals, 1 IC, 1 capacitor and 1 resistor.
From the project
Unofficial, open-source DIY throttle module for the VIRPIL CDT-AEROMAX, with 3D-printable parts, KiCad PCB files, and assembly documentation.

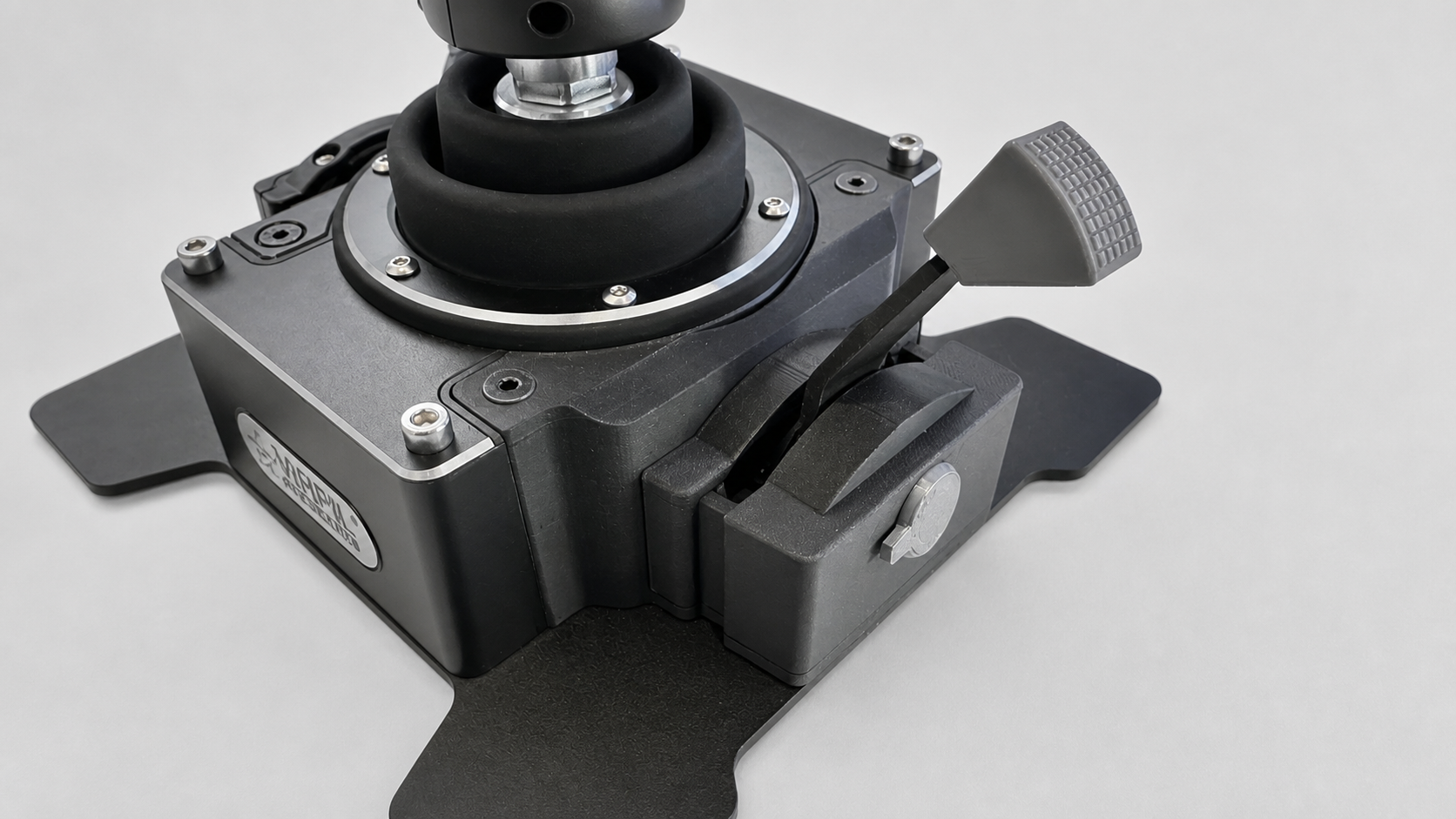

An unofficial, community-built throttle module for the VIRPIL CDT-AEROMAX. This project began as a working replacement for the unavailable factory throttle module, but the interface can support much more than the original-style lever.
The design combines 3D-printed mechanical parts, a custom KiCad sensor PCB, and a magnetic position sensor. The module interface also provides a connection for an additional button, leaving room for custom levers, collectives, twin-throttle designs, and other original controls.
Main components on the Aeromax throttle module
Aeromax throttle module bill of materials (BOM)
5 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MT6701CT-STD-R Novosense | SO-8_3.9x4.9mm_P1.27mm | U1 |
| 2 | 829-22-003-20-001101 | MILL-MAX_829-22-003-20-001101 | X1, X2 |
| 1 | 1uF Generic | C_0603_1608Metric | C1 |
| 1 | 100R Generic | R_0603_1608Metric | R1 |
Aeromax throttle module design files
The KiCad project lives in the ninemind/aeromax-throttle-module repository on GitHub; these links point at the commit this page was built from.
Aeromax throttle module: common questions
How big is the Aeromax throttle module?
The Aeromax throttle module measures 42 × 15 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Aeromax throttle module?
5 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Aeromax throttle module design files?
From the ninemind/aeromax-throttle-module repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Aeromax throttle module design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which ninemind chose for the repository.
