LibreHDMI

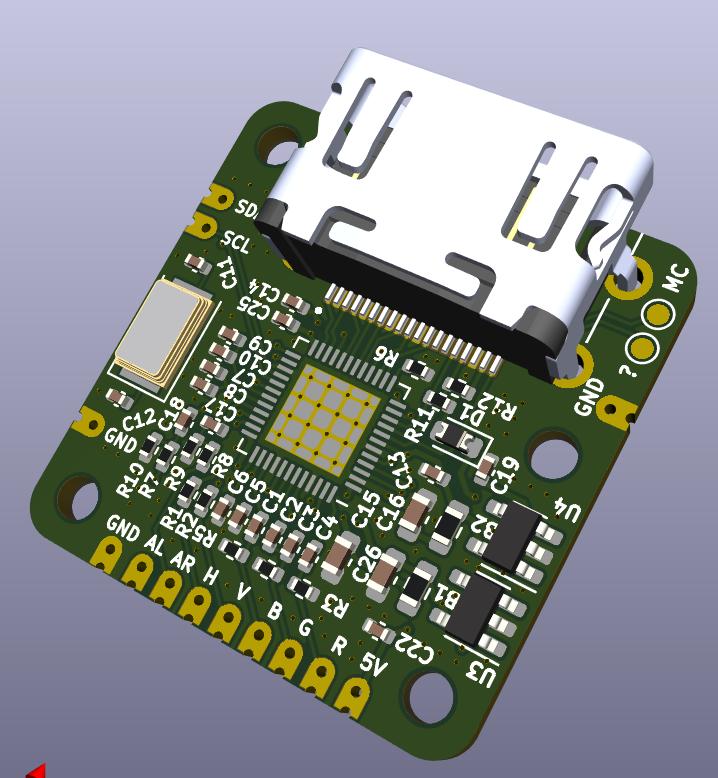

About the LibreHDMI PCB
LibreHDMI is an open source PCB design by Nold360, published on GitHub. It is a 2-layer board measuring 25.6 × 24.6 mm, with 55 components from 34 distinct parts.
Other key parts include the BU33SD5WG and TLV70018DDCR. By type, the board carries 22 capacitors, 13 test points, 12 resistors, 3 ICs, 2 inductors and 1 crystal.
From the project
MS9288A based VGA / YPbPr to HDMI Converter PCB
The MS9288A is a low-cost, low-power, high performance device, which consists of HDMI Transmitter, three 10-bit video Analog-to-Digital Converters and audio encoder, which can convert VGA or YPbPr signals to HDMI, maximum conversion rate of 165MHz. MS9288A support L/R audio input.MS9288A with embedded MCU and ROM code.
Source: http://en.macrosilicon.com/info.asp?baseid=2&thirdid=16
Main components on the LibreHDMI
LibreHDMI bill of materials (BOM)
55 components, 34 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ~ | QFN-48-1EP_6x6mm_P0.4mm_EP4.2x4.2mm_ThermalVias | U1 |
| 1 | BU33SD5WG TLV70033DDCR | SOT-23-5 | U3 |
| 1 | TLV70018DDCR | SOT-23-5 | U4 |
| 1 | Crystal | Crystal_SMD_5032-2Pin_5.0x3.2mm | Y1 |
| 1 | SS-53000-001 | STEWART_SS-53000-001 | J1 |
| 1 | AL | CasPowerPad 2x1 | TP1 |
| 1 | AR | CasPowerPad 2x1 | TP2 |
| 1 | H | CasPowerPad 2x1 | TP3 |
| 1 | V | CasPowerPad 2x1 | TP4 |
| 1 | B | CasPowerPad 2x1 | TP5 |
| 1 | G | CasPowerPad 2x1 | TP6 |
| 1 | R | CasPowerPad 2x1 | TP7 |
| 1 | 5V | CasPowerPad 2x1 | TP8 |
| 3 | GND | CasPowerPad 2x1 | TP10, TP12, TP15 |
| 1 | SDA | CasPowerPad 2x1 | TP13 |
| 1 | SCL | CasPowerPad 2x1 | TP14 |
| 1 | SD0805S020S0R5 | D_0603_1608Metric | D1 |
| 2 | 220R | R_0603_1608Metric | FB1, FB2 |
| 1 | 47NF 47nf | C_0402_1005Metric | C1 |
| 1 | 1n | C_0402_1005Metric | C2 |
Show 14 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 47N 47n | C_0402_1005Metric | C3, C4 |
| 3 | 4U7 4u7 | C_0402_1005Metric | C5, C8, C10 |
| 3 | 220N 220n | C_0402_1005Metric | C6, C7, C9 |
| 2 | 22P 22p | C_0402_1005Metric | C11, C12 |
| 2 | 1u | C_0402_1005Metric | C13, C19 |
| 2 | 100NF 100nf | C_0402_1005Metric | C14, C25 |
| 2 | 10U 10u | C_0603_1608Metric | C15, C16 |
| 2 | 470N 470n | C_0402_1005Metric | C17, C18 |
| 1 | 10U 10u | C_0402_1005Metric | C22 |
| 1 | 1u | C_0603_1608Metric | C26 |
| 2 | 100 | R_0402_1005Metric | R1, R2 |
| 3 | 75 | R_0402_1005Metric | R3, R4, R5 |
| 2 | 1k | R_0402_1005Metric | R6, R11 |
| 5 | 10K 10k | R_0402_1005Metric | R7, R8, R9, R10, R12 |
LibreHDMI design files
The KiCad project lives in the Nold360/LibreHDMI repository on GitHub; these links point at the commit this page was built from.
LibreHDMI: common questions
How big is the LibreHDMI PCB?
The LibreHDMI measures 25.6 × 24.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LibreHDMI?
55 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LibreHDMI design files?
From the Nold360/LibreHDMI repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the LibreHDMI design in my own project?
The repository has no license, so all rights stay with Nold360. Use it as a reference, and ask the author before reusing the design.
