Vga sync combiner audi rnse
About the Vga sync combiner audi rnse PCB
Vga sync combiner audi rnse is an open source PCB design by noobychris, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 31 × 31 mm, with 17 components from 12 distinct parts.
Other key parts include the CD74HCT86M96. By type, the board carries 6 resistors, 5 connectors, 4 capacitors, 1 IC and 1 diode.
From the project

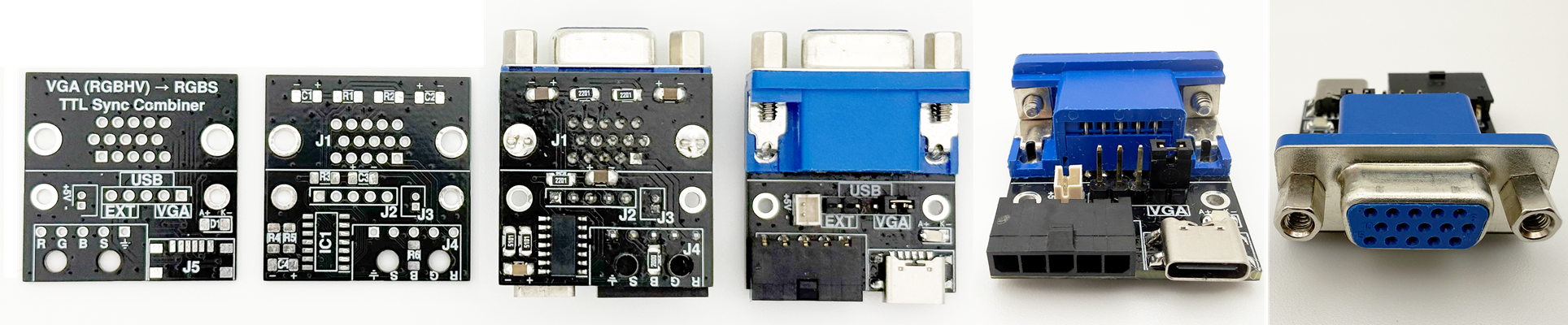

VGA RGBHV to RGBS sync combiner PCB for converting separate H/V sync into composite sync, tested with Audi RNS-E.
This project contains a small KiCad PCB for converting a VGA-style RGBHV signal into an RGBS signal suitable for the RGB video input of an Audi RNS-E navigation unit.
The board was designed for use with HDMI-to-VGA adapters or similar VGA/RGBHV sources. It passes the red, green and blue video signals through and combines the separate horizontal and vertical sync signals into one composite sync signal.
Main components on the Vga sync combiner audi rnse
Vga sync combiner audi rnse bill of materials (BOM)
17 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CD74HCT86M96 74HCT86 | SOIC127P600X175-14N | IC1 |
| 1 | L77HDE15SD1CH4F VGA_RGBHV_IN | L77HDE15SD1CH4F | J1 |
| 1 | 61300511121 POWER_SOURCE_JUMPER_HEADER | HDRV5W64P0X254_1X5_1270X254X854P | J2 |
| 1 | B2B-ZR(LF)(SN) JST ZR 1x2 Header | SHDR2W50P0X150_1X2_450X350X450P | J3 |
| 1 | 2-1445098-5 RGBS_OUT_PCB_HEADER | 214450985 | J4 |
| 1 | USB4135-GF-A USB-C | USB4135GFA | J5 |
| 1 | HSMQ-C150 PWR_LED | LEDC3216X120N | D1 |
| 3 | C1206C226M4PACTU 22uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2, C3 |
| 1 | C1206C104J4RACTU 100nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C4 |
| 3 | ERJ-P08F2201V 2k2 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2, R3 |
| 2 | ERJ-P08F5101V 5k1 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R4, R5 |
| 1 | ERJ-P08F2000V 200R | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R6 |
Vga sync combiner audi rnse design files
The KiCad project lives in the noobychris/vga-sync-combiner-audi-rnse repository on GitHub; these links point at the commit this page was built from.
Vga sync combiner audi rnse: common questions
How big is the Vga sync combiner audi rnse PCB?
The Vga sync combiner audi rnse measures 31 × 31 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Vga sync combiner audi rnse?
17 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Vga sync combiner audi rnse design files?
From the noobychris/vga-sync-combiner-audi-rnse repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Vga sync combiner audi rnse design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which noobychris chose for the repository.
