Fallout-NFC-Badge PCB layout, top view — open source board by NoseFa

About the Fallout-NFC-Badge PCB

Fallout-NFC-Badge is an open source PCB design by NoseFa, published on GitHub. It is a 2-layer board measuring 92 × 51 mm, with 5 components from 5 distinct parts.

Other key parts include the NT3H2111W0FHKH. By type, the board carries 1 IC, 1 antenna, 1 diode, 1 capacitor and 1 resistor.

It belongs with the wearables designs in this gallery.

From the project

An NFC badge made for Hack Club Fallout. This project was done on the first full day of Hack Club Fallout as a PCB sprint project. We had around like 7-8h from start to finish. The badge was made to fit the holders / landyards given to us at the event. The badge includes an nfc t

An NFC badge made for Hack Club Fallout. This project was done on the first full day of Hack Club Fallout as a PCB sprint project. We had around like 7-8h from start to finish. The badge was made to fit the holders / landyards given to us at the event. The badge includes an nfc tag and a whitescreen with a QR code to the fallout home page and a code to my github profile on the back side. I will probably program the nfc tag to forward to the photo site so I can quickly give people access to it. This was also one of my first KiCad projects with PCBA components so it's pretty bare bones and…

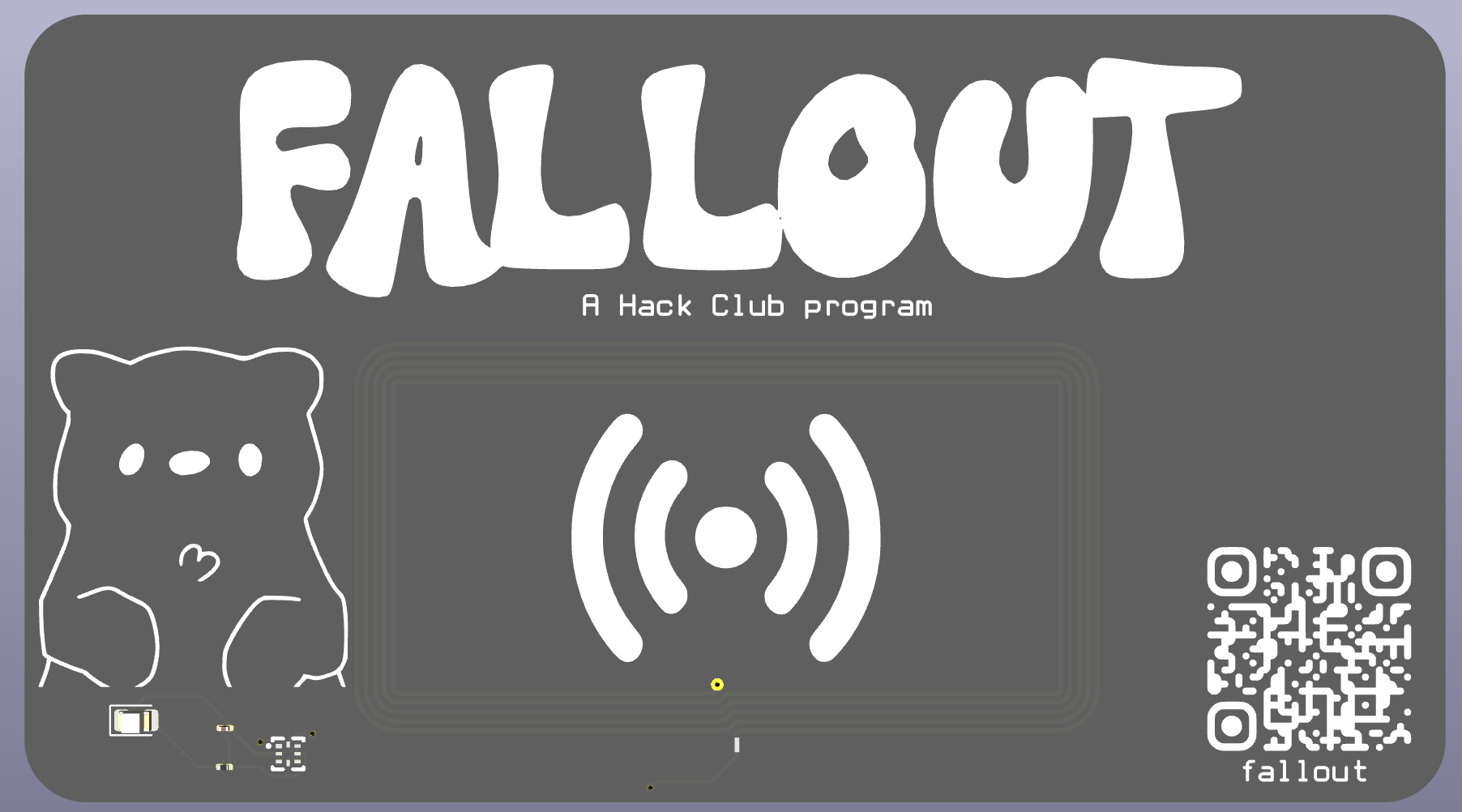

Fallout-NFC-Badge, from the project README
From the project README

Main components on the Fallout-NFC-Badge

NT3H2111W0FHKH

Fallout-NFC-Badge bill of materials (BOM)

5 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NT3H2111W0FHKH
U1
1
Antenna_Loop
AE1
1
LED
D1
1
C
C1
1
R
R1

Fallout-NFC-Badge design files

The KiCad project lives in the NoseFa/Fallout-NFC-Badge repository on GitHub; these links point at the commit this page was built from.

Fallout-NFC-Badge: common questions

How big is the Fallout-NFC-Badge PCB?

The Fallout-NFC-Badge measures 92 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Fallout-NFC-Badge?

5 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Fallout-NFC-Badge design files?

From the NoseFa/Fallout-NFC-Badge repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Fallout-NFC-Badge design in my own project?

The repository has no license, so all rights stay with NoseFa. Use it as a reference, and ask the author before reusing the design.
