Top

not-sample-text·ApexPad·hardware/pcb/top/top.kicad_pcb

Top PCB layout, top view — open source board by not-sample-text

About the Top PCB

Top is an open source PCB design by not-sample-text, published on GitHub. It is a 2-layer board measuring 65 × 120 mm, with 28 components from 6 distinct parts.

By type, the board carries 14 switches, 12 diodes and 2 connectors.

It belongs with the iot & wireless and displays & leds designs in this gallery.

From the project

The PROS3 Macropad is a versatile, open-source 12-key macropad built around the powerful ESP32-S3. Designed as a university thesis project, it features a rotary encoder, OLED display, RGB underglow, and a complete software ecosystem for deep customization.

The PROS3 Macropad is a versatile, open-source 12-key macropad built around the powerful ESP32-S3. Designed as a university thesis project, it features a rotary encoder, OLED display, RGB underglow, and a complete software ecosystem for deep customization.

A collection of renders showcasing the hardware.

This repository contains the complete engineering files (hardware, firmware, and software) for a highly programmable macropad designed to streamline digital workflows.

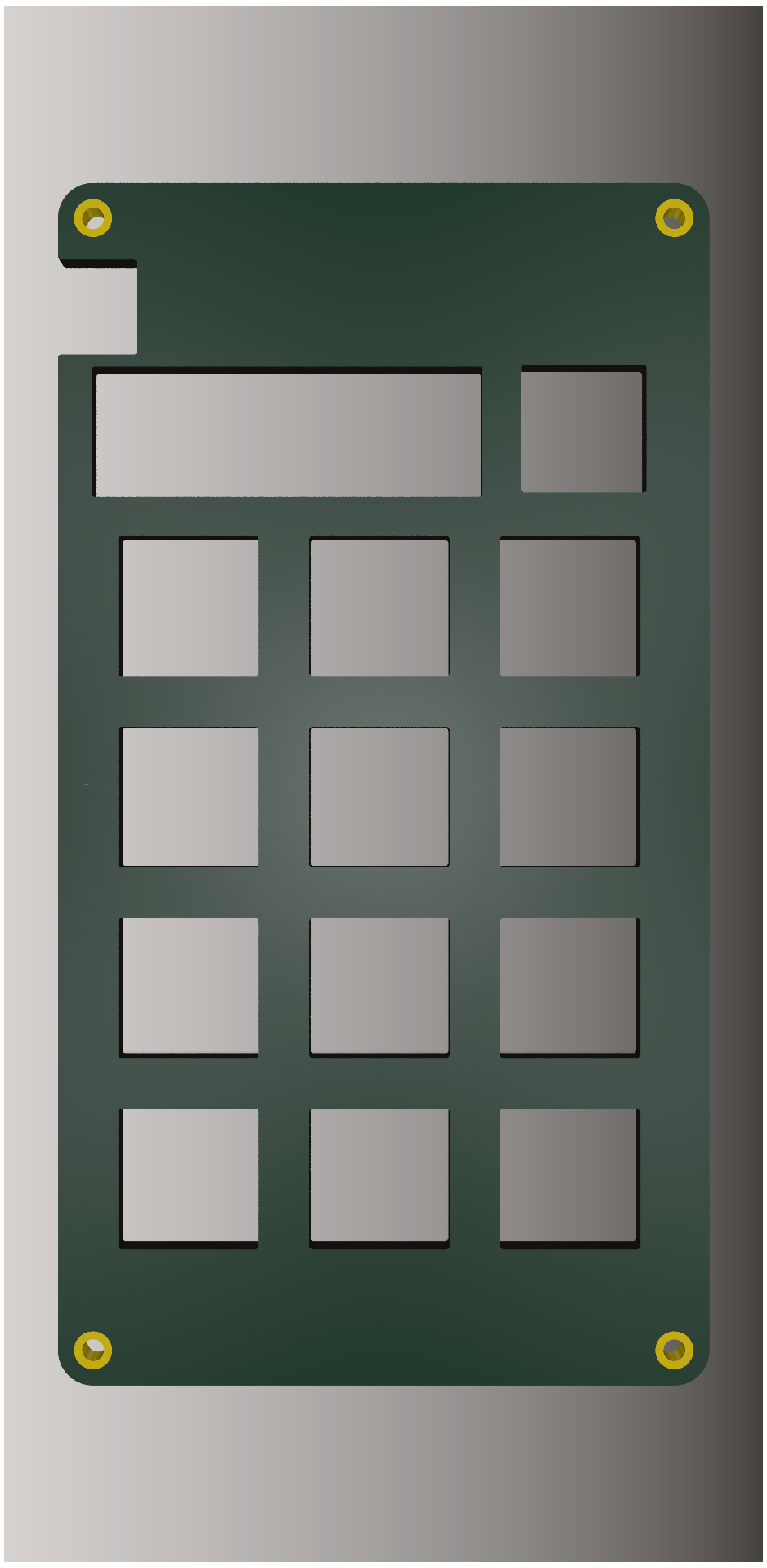

Top, from the project README
From the project README

Top bill of materials (BOM)

28 components, 6 distinct parts.

QtyPartRefs
1
OLED_128x32
J1
1
Conn_01x15
J2
12
Keyswitch
S1, S2, S3, S4, S5, S6, S7, S8 +4
1
SLW-864574-5A-RA-N-D
SW1
1
RotaryEncoder_Switch
SW2
12
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +4

Top design files

The KiCad project lives in the not-sample-text/ApexPad repository on GitHub; these links point at the commit this page was built from.

Top: common questions

How big is the Top PCB?

The Top measures 65 × 120 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Top?

28 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Top design files?

From the not-sample-text/ApexPad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Top design in my own project?

The repository has no license, so all rights stay with not-sample-text. Use it as a reference, and ask the author before reusing the design.
