Quacken zero
Nuclear-Squid·Quacken·zero/quacken_zero.kicad_pcb
About the Quacken zero PCB
Quacken zero is an open source PCB design by Nuclear-Squid, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 261.5 × 131.6 mm, with 42 components from 1 distinct parts.
It belongs with the iot & wireless designs in this gallery.
From the project

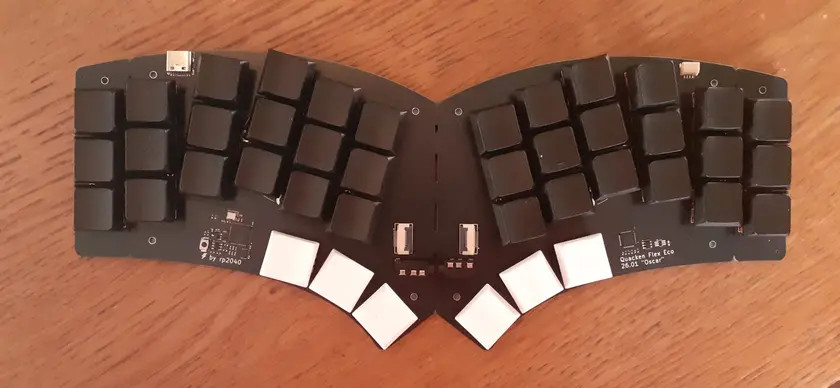

Libre, ergonomic, polymorphic: a single PCB for many possible layouts.
Libre, ergonomic, polymorphic: a single PCB for many possible layouts.
3×6, 3×5, hummingbird, and everything in between.
- [x] Quacken Zero: unibody - [x] first batch with a Pro Micro slot, to experiment geometry and design choices - [ ] next batches with an onboard nRF52840 (Bluetooth LE) and the updated geometry
- [x] Quacken Flex: unibody by default, splittable by choice - [x] onboard RP2040 (left) and I/O expander (right) - [x] splittable in two (I²C communication over a TRRS cable) - [x] splittable outer columns - [ ] hotswap sockets - [ ] optional Circle Trackpad - [x] optional…

Quacken zero bill of materials (BOM)
42 components, 1 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 42 | — | D_SOD-323 | D1, D2, D3, D4, D5, D6, D7, D8 +34 |
Quacken zero design files
The KiCad project lives in the Nuclear-Squid/Quacken repository on GitHub; these links point at the commit this page was built from.
Quacken zero: common questions
How big is the Quacken zero PCB?
The Quacken zero measures 261.5 × 131.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Quacken zero?
42 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Quacken zero design files?
From the Nuclear-Squid/Quacken repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Quacken zero design in my own project?
Yes, under the terms of its GPL-3.0 license, which Nuclear-Squid chose for the repository.
