VGA2HDMI
About the VGA2HDMI PCB
VGA2HDMI is an open source PCB design by OLIMEX, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 31 × 55 mm, with 89 components from 33 distinct parts.
Other key parts include the CV8986(QFN56_7x7mm). By type, the board carries 27 resistors, 26 capacitors, 3 LEDs, 2 inductors, 1 IC and 1 transistor.
From the project
VGA to HDMI converter

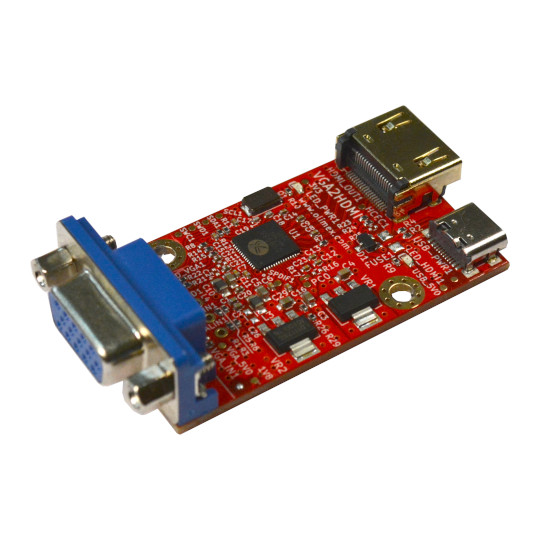

VGA input connector HDMI output connector USB-C for power supply Power supply status LED VGA signal status LED HDMI signal status LED Dimensions 51x33mm 2 mount holes
Hardware is released under CERN Open Hardware Licence Version 2 - Strongly Reciprocal, all silkscreen credits to Olimex should remain; Documentation is released under CC BY-SA 4.0
Main components on the VGA2HDMI
VGA2HDMI bill of materials (BOM)
89 components, 33 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CV8986(QFN56_7x7mm) | QFN56_7x7_Pitch_0.4mm_EPad_5.4x5.4mm | U1 |
| 1 | Q24.576MHZ/20PF/20PPM/2P/5X3.2MM Q24.576MHz/20pF/20ppm/2P/5x3.2mm | HCX-4S_2Pins_5.0x3.2mm_TEST | Q1 |
| 11 | TESTPAD | TESTPAD_40-ROUND | 1V8, 3V3, HCEC1, PC0, SCL1, SDA1, SPDIF1, SWC1 +3 |
| 3 | TESTPAD | TEST_PAD_40x70_Round | ALIN1, ARIN1, GND1 |
| 1 | NA(FSMD035-1206) | FUSE-1206 | FUSE1 |
| 1 | HDMI-SWM-19 | HDMI-SWM-19_Paste | HDMI_OUT1 |
| 2 | Mounting_hole_Shield_3.3mm | Mounting_hole_Shield_3.3mm | Mount-Hole-3.3mm1, Mount-Hole-3.3mm3 |
| 1 | NA(HN1x2(SMD)_H-WX-1x2-LF) | HN1x2(SMD)_H-WX-1x2-LF | PWR1 |
| 5 | NA(GG0402052R542P) | D_0402_5MIL_DWS | TVS1, TVS2, TVS3, TVS4, TVS5 |
| 1 | USB-C-16P-F(A40-00119-A52-12) | USB2.0_TYPE-C(A40-00119-A52-12)_Paste | USB-PWR1 |
| 1 | HDR15-3.08-14.5T/VGA15/14.5mm | VGA15-F(HDR15-3.08-14.5T)_DrillSlot | VGA_IN1 |
| 1 | LD1117AG-33-AA3-A-R | SOT223 | VR1 |
| 1 | LD1117AG-AD-AA3-A-R | SOT223 | VR2 |
| 3 | LED/RED/0603 | LED_0603_KA | LED_HDMI1, LED_PWR1, LED_VGA1 |
| 1 | CH213K(SOT23-3) | SOT23-3 | D1 |
| 2 | IND/600OHM/2A/UPZ2012E-601-2R0TF/L0805 | L_0805_5MIL_DWS | L3, L4 |
| 2 | 4.7uF/X5R/20%/10V/C0402 | C_0402_5MIL_DWS | C1, C2 |
| 5 | 22uF/6.3V/20%/X5R/C0603 | C_0603_5MIL_DWS | C3, C4, C5, C10, C29 |
| 12 | 100nF/10V/20%/X5R/C0402 | C_0402_5MIL_DWS | C6, C7, C8, C9, C11, C12, C13, C14 +4 |
| 2 | 33pF/50V/5%/C0G/C0402 | C_0402_5MIL_DWS | C18, C19 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 47nF/50V/10%/X7R/C0402 | C_0402_5MIL_DWS | C20, C21, C22 |
| 1 | NA(1nF/C0402) | C_0402_5MIL_DWS | C24 |
| 1 | NA(22uF/6.3V/20%/X5R/C0603) | C_0603_5MIL_DWS | C26 |
| 8 | 10K/R0402 10k/R0402 | R_0402_5MIL_DWS | R1, R3, R5, R6, R21, R22, R23, R24 |
| 2 | 5.1k/1%/R0402 | R_0402_5MIL_DWS | R2, R4 |
| 1 | 1k/1%/R0402 | R_0402_5MIL_DWS | R7 |
| 3 | 2.2K/R0402 2.2k/R0402 | R_0402_5MIL_DWS | R8, R9, R10 |
| 1 | NA(4.7k/R0402) | R_0402_5MIL_DWS | R11 |
| 7 | 75R/1%/R0402 | R_0402_5MIL_DWS | R12, R13, R14, R15, R18, R19, R20 |
| 2 | NA(10k/R0402) | R_0402_5MIL_DWS | R16, R25 |
| 1 | 0R/R0402/Board_Mounted | R_0402_5MIL_0R(Board_Mounted) | R17 |
| 1 | 100R/1%/R0402 | R_0402_5MIL_DWS | R26 |
| 1 | 220R/1%/R0402 | R_0402_5MIL_DWS | R29 |
