BYTE Capacitive
About the BYTE Capacitive PCB
BYTE Capacitive is an open source PCB design by oneohm, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 18 × 23 mm, with 13 components from 9 distinct parts.
Other key parts include the AD7147PACPZ-1500R7 and DRV2605LDGST. By type, the board carries 5 capacitors, 3 resistors, 2 ICs, 1 module, 1 connector and 1 transformer.
From the project

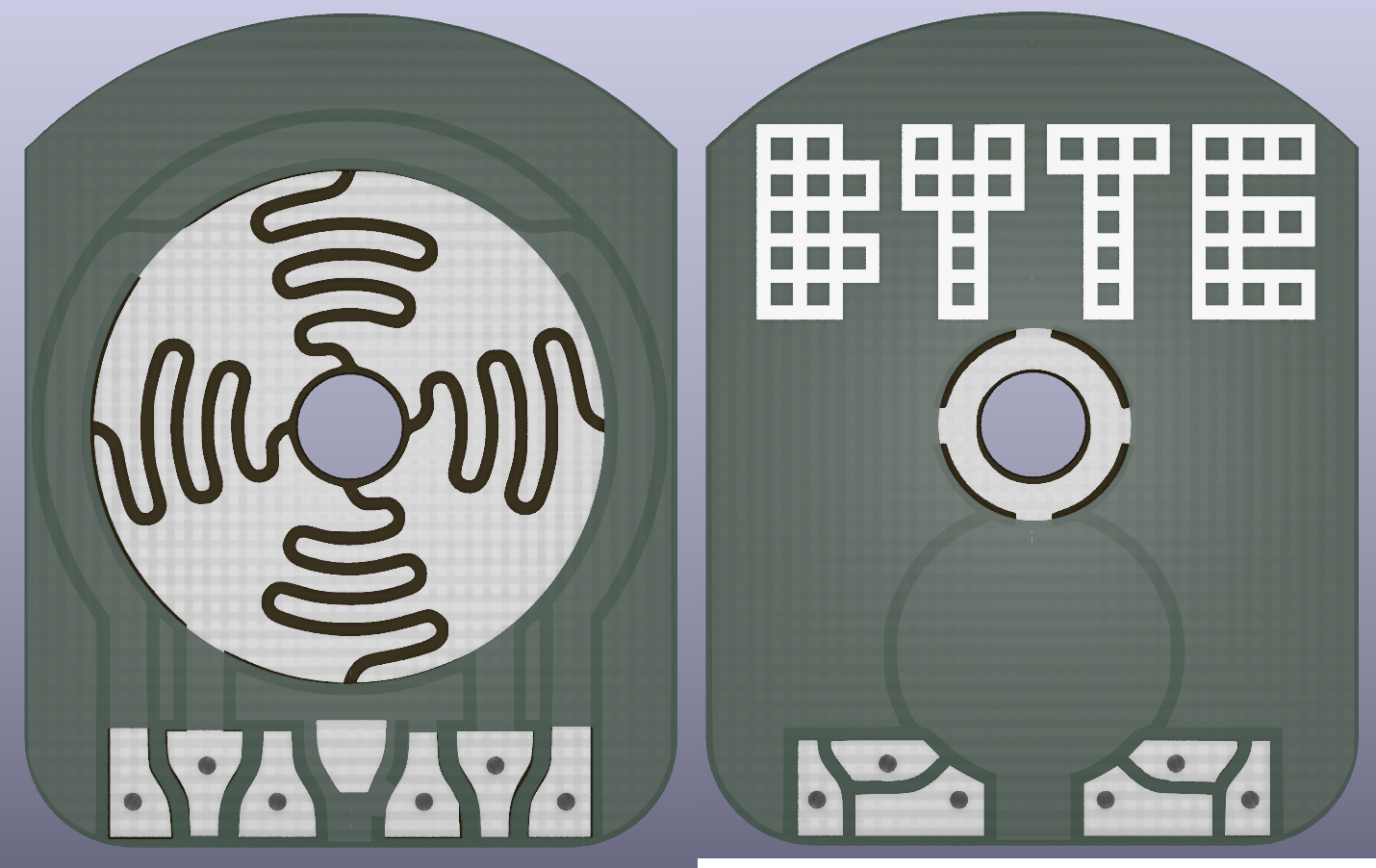

The BYTE hands free interface
Details are available on the Hackaday project page:` https://hackaday.io/project/171778-the-byte
You'll find here the KiCad projects for the different sensor packs.
- BYTE_Sensors.pretty: Library folder for all the KiCad footprints used in the sensor pack development.
- BYTEFSR: First sensor pack used, only FSR for X/Y axis. - BYTEBite: First sensor pack used, only FSR also for the bite. - BYTE_Capacitive: Sensor intended to be used as capacitive feedback for FSR shift error. - ...more to come.
Main components on the BYTE Capacitive
BYTE Capacitive bill of materials (BOM)
13 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AD7147PACPZ-1500R7 | QFN50P400X400X80-25N-D | U1 |
| 1 | DRV2605LDGST | SOP50P490X110-10N | U2 |
| 1 | Motor_DC | VLV041235L | M1 |
| 1 | input | Flex_Connector | J1 |
| 1 | PCB | Capacitive_PCB_NoConnector | T1 |
| 1 | 100nF | C_0402_1005Metric | C1 |
| 1 | 0.1uF | C_0402_1005Metric | C2 |
| 3 | 1uF | C_0402_1005Metric | C3, C4, C5 |
| 3 | 2.2K | R_0402_1005Metric | R1, R2, R3 |
BYTE Capacitive design files
The KiCad project lives in the oneohm/BYTE repository on GitHub; these links point at the commit this page was built from.
BYTE Capacitive: common questions
How big is the BYTE Capacitive PCB?
The BYTE Capacitive measures 18 × 23 mm, has 4 copper layers and is 0.8 mm thick.
How many components are on the BYTE Capacitive?
13 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the BYTE Capacitive design files?
From the oneohm/BYTE repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the BYTE Capacitive design in my own project?
Yes, under the terms of its GPL-3.0 license, which oneohm chose for the repository.
