Cartouche eclair proto
About the Cartouche eclair proto PCB

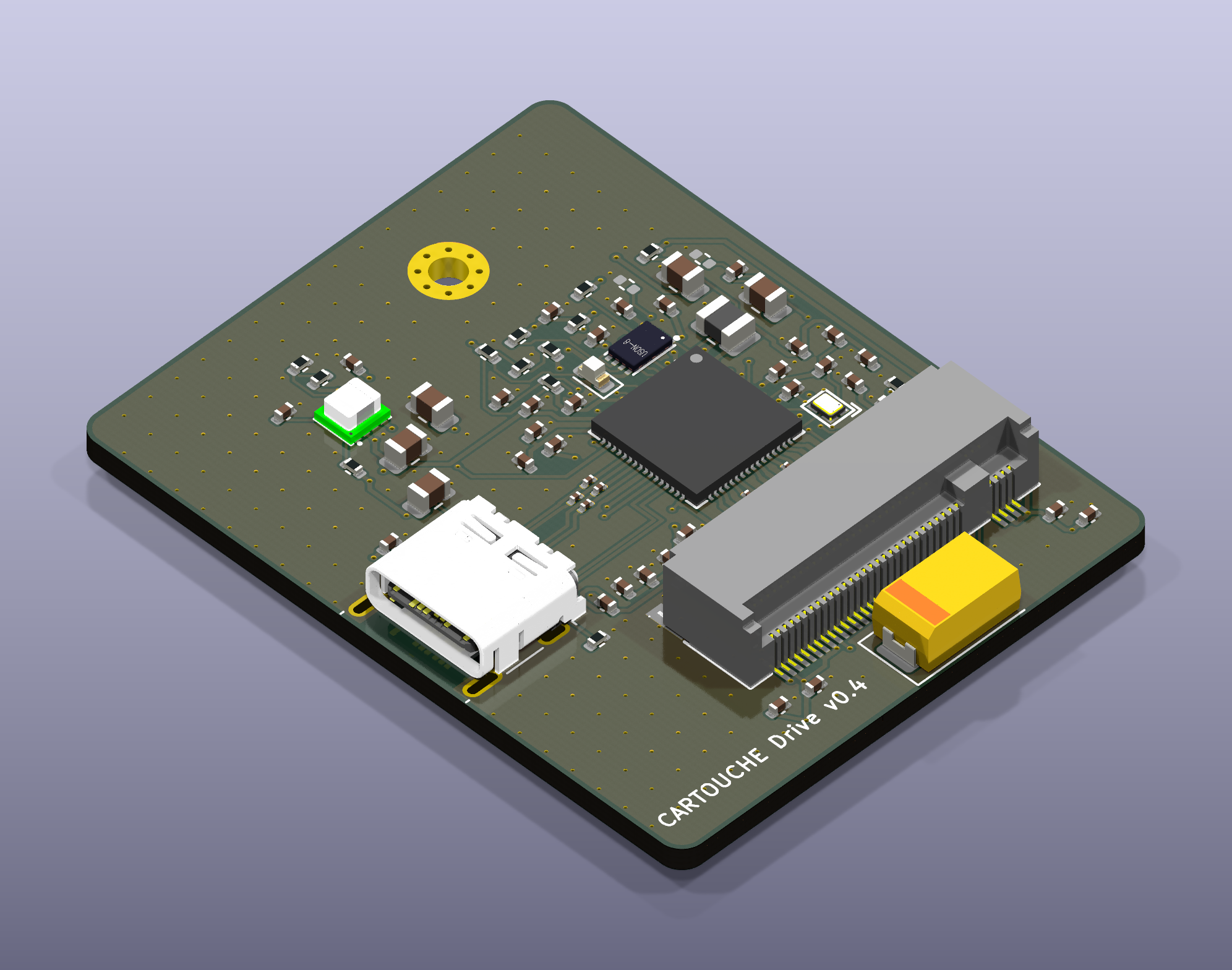

Cartouche eclair proto is an open source PCB design by opencorp2030-ctrl, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 36 × 46 mm, with 70 components from 26 distinct parts.
Other key parts include the JMS583, TPS82130 and ZD25WQ16. By type, the board carries 46 capacitors, 16 resistors, 3 ICs, 2 connectors, 1 crystal and 1 LED.
From the project
CARTOUCHE Drive prototype - USB 3.2 to NVMe 2230 (JMS583). All rights reserved: published for information only, manufacturing forbidden.
A small USB-C drive for an M.2 2230 NVMe SSD, built around the JMicron JMS583 bridge (USB 3.2 Gen 2, 10 Gb/s → PCIe Gen 3 ×2). It is the prototype drive for CARTOUCHE, a local AI that runs from a USB drive.
Status: schematic v0.1 (ERC 0). PCB v0.4 — 36 × 46 mm, 4 layers (In1 GND, In2 GND + 1.0 V island), 9 high-speed pairs as straight coupled pairs. Impedance from a 2D field solver (tools/impedance.py, JLC04161H-7628, with solder mask): USB 3.2 pairs 0.20/0.10 mm ≈ 86 Ω (target 90 Ω ±10 %), PCIe and REFCLK pairs 0.30/0.20 mm ≈ 89 Ω (target 85 Ω ±15 %), GND stitching. DRC: 0 unconnected, 0…
Main components on the Cartouche eclair proto
Cartouche eclair proto bill of materials (BOM)
70 components, 26 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | JMS583 | QFN-64_L8.0-W8.0-P0.40-TL-EP4.5 | U1 |
| 1 | TPS82130 | USIP-8_L3.0-W2.8-P0.65-TL-EP | U2 |
| 1 | ZD25WQ16 | USON-8_L3.0-W2.0-P0.50-BL-EP | U3 |
| 1 | C7301914 25MHz 12pF | CRYSTAL-SMD_4P-L1.6-W1.2-BL | Y1 |
| 1 | C134092 USB-C 105450-0101 | USB_C_Receptacle_Molex_105450-0101 | J1 |
| 1 | C841669 M.2 key M (2230) | CONN-SMD_APCI0113-P001A | J2 |
| 1 | C2286 red | LED_0603_1608Metric | LED1 |
| 1 | 4.7UH 4.7uH | L_1008_2520Metric | L1 |
| 4 | 100NF 100nF | C_0201_0603Metric | C1, C2, C3, C4 |
| 3 | C15850 10uF 25V | C_0805_2012Metric | C5, C28, C38 |
| 21 | 100NF 100nF | C_0402_1005Metric | C6, C9, C10, C11, C12, C13, C14, C15 +13 |
| 2 | 22UF 22uF | C_0805_2012Metric | C7, C40 |
| 6 | 10UF 10uF | C_0402_1005Metric | C8, C22, C43, C44, C45, C46 |
| 2 | 1UF 1uF | C_0402_1005Metric | C21, C30 |
| 2 | 18PF 18pF | C_0402_1005Metric | C31, C32 |
| 4 | 220NF 220nF | C_0201_0603Metric | C34, C35, C36, C37 |
| 1 | 3.3NF 3.3nF | C_0402_1005Metric | C39 |
| 1 | C105408 330uF 10V | CP_EIA-7343-31_Kemet-D | C41 |
| 2 | 5.1K 5.1k | R_0402_1005Metric | R1, R2 |
| 7 | 10K 10k | R_0402_1005Metric | R3, R6, R10, R11, R12, R13, R14 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 20K 20k | R_0402_1005Metric | R4 |
| 1 | C25752 12k 1% | R_0402_1005Metric | R5 |
| 2 | 10k | R_0402_1005Metric | R7, R8 |
| 1 | 1k | R_0402_1005Metric | R9 |
| 1 | C5713272 475k 1% | R_0402_1005Metric | R15 |
| 1 | C2909320 150k 1% | R_0402_1005Metric | R16 |
Cartouche eclair proto design files
The KiCad project lives in the opencorp2030-ctrl/cartouche-eclair-proto repository on GitHub; these links point at the commit this page was built from.
Cartouche eclair proto: common questions
How big is the Cartouche eclair proto PCB?
The Cartouche eclair proto measures 36 × 46 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Cartouche eclair proto?
70 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Cartouche eclair proto design files?
From the opencorp2030-ctrl/cartouche-eclair-proto repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Cartouche eclair proto design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which opencorp2030-ctrl chose for the repository.
