About the QuantumMiniLabs ODMR::ADF Board

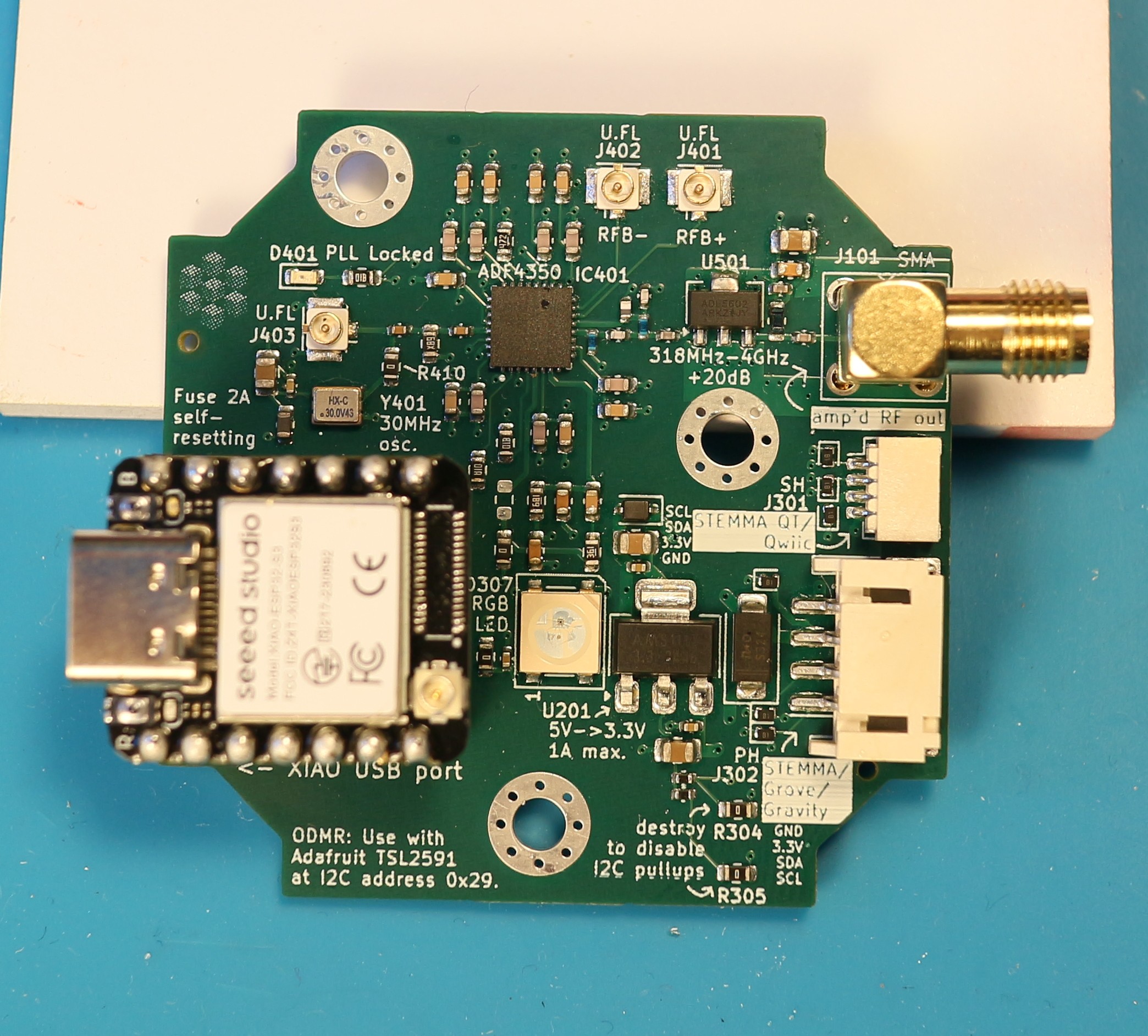

QuantumMiniLabs ODMR::ADF Board is an open source PCB design by openUC2, published on GitHub. It is a 4-layer board measuring 49.2 × 49.2 mm, with 88 components from 52 distinct parts.
Other key parts include the ADF4350BCPZ-RL7, AMS1117-3.3 and ADL5602ARKZ-R7. By type, the board carries 43 capacitors, 15 resistors, 11 diodes, 8 connectors, 6 inductors and 3 ICs.
From the project
ODMR quantum experiment electronics development with UC2 system for QuantumMiniLabs
ODMR quantum experiment development with UC2 system for QuantumMiniLabs
We intend that this repo has CERN OHL-W 2.0 license. To do it properly, we probably have to follow this guide: Guide to the CERN-OHL-W v2
We are developing a low-cost, easy-to-manufacture experiment setup to do quantum experiments. The bigger project is QuantumMiniLabs.
This repo is for electronics development, supply chain/manufacture documentation, software/firmware documentation, mechanical ressources (like 3D-print-files) and experiment design (+documentation).
Main components on the QuantumMiniLabs ODMR::ADF Board
QuantumMiniLabs ODMR::ADF Board bill of materials (BOM)
88 components, 52 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ADF4350BCPZ-RL7 | QFN50P500X500X100-33N | IC401 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U201 |
| 1 | ADL5602ARKZ-R7 | SOT-89-3 | U501 |
| 1 | TG2520SMN 30.000M-MCGNNM0 30MHz_3Y030000VP | TG2520SMN30000MMCGNNM0 | Y401 |
| 1 | C496551 SMA-elbowed_to-NV-diamonds | SMA_BAT_Wireless_BWSMA-KWE-Z001 | J101 |
| 1 | I2C_JST-SH_STEMMA-QT | JUSHUO_AFC10-S04QCA-00 | J301 |
| 1 | I2C_JST-PH_STEMMA | JST_PH_S4B-PH-SM4-TB_1x04-2iMP_P2.00mm_Horizontal | J302 |
| 1 | XIAO_SINGLE-HEADER-1_P1-IS-P1 xiao_single-header-1_p1-is-p1 | PinSocket_1x07_P2.54mm_Vertical | J303 |
| 1 | XIAO_SINGLE-HEADER-2_P1-IS-P8 xiao_single-header-2_p1-is-p8 | PinSocket_1x07_P2.54mm_Vertical | J304 |
| 1 | C496552 IPEX/U.FL_PLL_out_RFBP | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J401 |
| 1 | C496552 IPEX/U.FL_PLL_out_RFBN | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J402 |
| 1 | C496552 IPEX/U.FL_PLL-ref-in | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J403 |
| 1 | BSMD1206-200-16V | Fuse_1206_3216Metric | F201 |
| 1 | SS24 | D_SMA | D201 |
| 1 | TVS_H3V3HD3U | D_SOD-323 | D202 |
| 1 | 1SMA5918A | D_SMA | D203 |
| 6 | H3V3L10B | D_SOD-882D | D301, D302, D303, D304, D305, D306 |
| 1 | WS2812B | LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm | D307 |
| 1 | C72038 yellow_PLL-lock | LED_0603_1608Metric | D401 |
| 1 | GZ2012D101TF | L_0805_2012Metric | FB201 |
Show 32 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GZ1608D601TF | L_0603_1608Metric | FB401 |
| 2 | 3.3NH 3.3nH | L_0402_1005Metric | L401, L402 |
| 1 | 10NH 10nH | L_0402_1005Metric | L403 |
| 1 | LQW18CNR47J00D | L_0603_1608Metric | L501 |
| 7 | 100U/6.3V 100u/6.3V | C_1206_3216Metric | C201, C202, C203, C205, C206, C208, C209 |
| 3 | 1u | C_0805_2012Metric | C204, C418, C501 |
| 2 | 100N 100n | C_0402_1005Metric | C207, C211 |
| 1 | 220N/50V 220n/50V | C_0805_2012Metric | C210 |
| 2 | 100N/16V 100n/16V | C_0402_1005Metric | C212, C301 |
| 1 | 22U 22u | C_0805_2012Metric | C213 |
| 2 | 10P/C0G/50V 10p/C0G/50V | C_0402_1005Metric | C401, C504 |
| 2 | 0.7P/C0G/50V 0.7p/C0G/50V | C_0402_1005Metric | C402, C404 |
| 8 | 100N 100n | C_0603_1608Metric | C403, C406, C409, C414, C416, C419, C420, C425 |
| 7 | 10P 10p | C_0603_1608Metric | C405, C408, C412, C413, C415, C417, C423 |
| 2 | 1.5N 1.5n | C_0603_1608Metric | C407, C502 |
| 1 | 39N 39n | C_0603_1608Metric | C410 |
| 1 | 2.7N 2.7n | C_0603_1608Metric | C411 |
| 1 | 10N 10n | C_0402_1005Metric | C421 |
| 2 | 1n | C_0402_1005Metric | C422, C424 |
| 1 | 68P 68p | C_0402_1005Metric | C503 |
| 1 | 0R/ONBOARD-NEOPIXEL-POWER_NC 0R/onboard-neopixel-power_NC | R_0603_1608Metric | R301 |
| 2 | 2K2 2k2 | R_0402_1005Metric | R302, R303 |
| 1 | 0R/I2C_SCL_PULLUP_NC 0R/I2C_SCL_pullup_NC | R_0603_1608Metric | R304 |
| 1 | 0R/I2C_SDA_PULLUP_NC 0R/I2C_SDA_pullup_NC | R_0603_1608Metric | R305 |
| 1 | 680R | R_0603_1608Metric | R401 |
| 2 | C21189 0R | R_0603_1608Metric | R402, R410 |
| 1 | 360R | R_0603_1608Metric | R403 |
| 1 | DNI | R_0603_1608Metric | R404 |
| 2 | 1k | R_0603_1608Metric | R405, R408 |
| 1 | 100R | R_0603_1608Metric | R406 |
| 1 | 4.7K 4.7k | R_0603_1608Metric | R407 |
| 1 | 49.9 | R_0603_1608Metric | R409 |
QuantumMiniLabs ODMR::ADF Board design files
The KiCad project lives in the openUC2/QuantumMiniLabs_ODMR repository on GitHub; these links point at the commit this page was built from.
QuantumMiniLabs ODMR::ADF Board: common questions
How big is the QuantumMiniLabs ODMR::ADF Board?
The QuantumMiniLabs ODMR::ADF Board measures 49.2 × 49.2 mm, has 4 copper layers and is 1.6165 mm thick.
How many components are on the QuantumMiniLabs ODMR::ADF Board?
88 components, from 52 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the QuantumMiniLabs ODMR::ADF Board design files?
From the openUC2/QuantumMiniLabs_ODMR repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the QuantumMiniLabs ODMR::ADF Board design in my own project?
The repository has no license, so all rights stay with openUC2. Use it as a reference, and ask the author before reusing the design.
