MotCtrl

osannolik·MotCtrl·hw/kicad/MotCtrl.kicad_pcb

MotCtrl PCB layout, top view — open source STM32 board by osannolik
Simulate this board

About the MotCtrl PCB

MotCtrl is an open source STM32 PCB design by osannolik, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 76.7 × 44.5 mm, with 137 components from 55 distinct parts.

Its main chip is the STM32F446R(C-E)Tx, from the STM32 family. Other key parts include the LM5101A, INA240A2, LM22675-5.0 and AZ1117CR-3.3. By type, the board carries 52 capacitors, 43 resistors, 12 diodes, 10 ICs, 6 transistors and 5 test points.

From the project

Inverter for brushless motors

Microcontroller STM32F446, ARM Cortex-M4, 180 MHz, FPU Power MOSFETs 60 V, 300 A, 1.1 mOhm FDBL0110N60 High- and low-side gate drivers LM5101A Inline phase current sensing using INA240 amplifiers Hall-sensor inputs Standard servo (PPM/PWM) input Motor and board temp sensor (NTC) Expansion header for UART/ADC/DAC/SPI/I2C/CAN * PCB size 45x77 mm

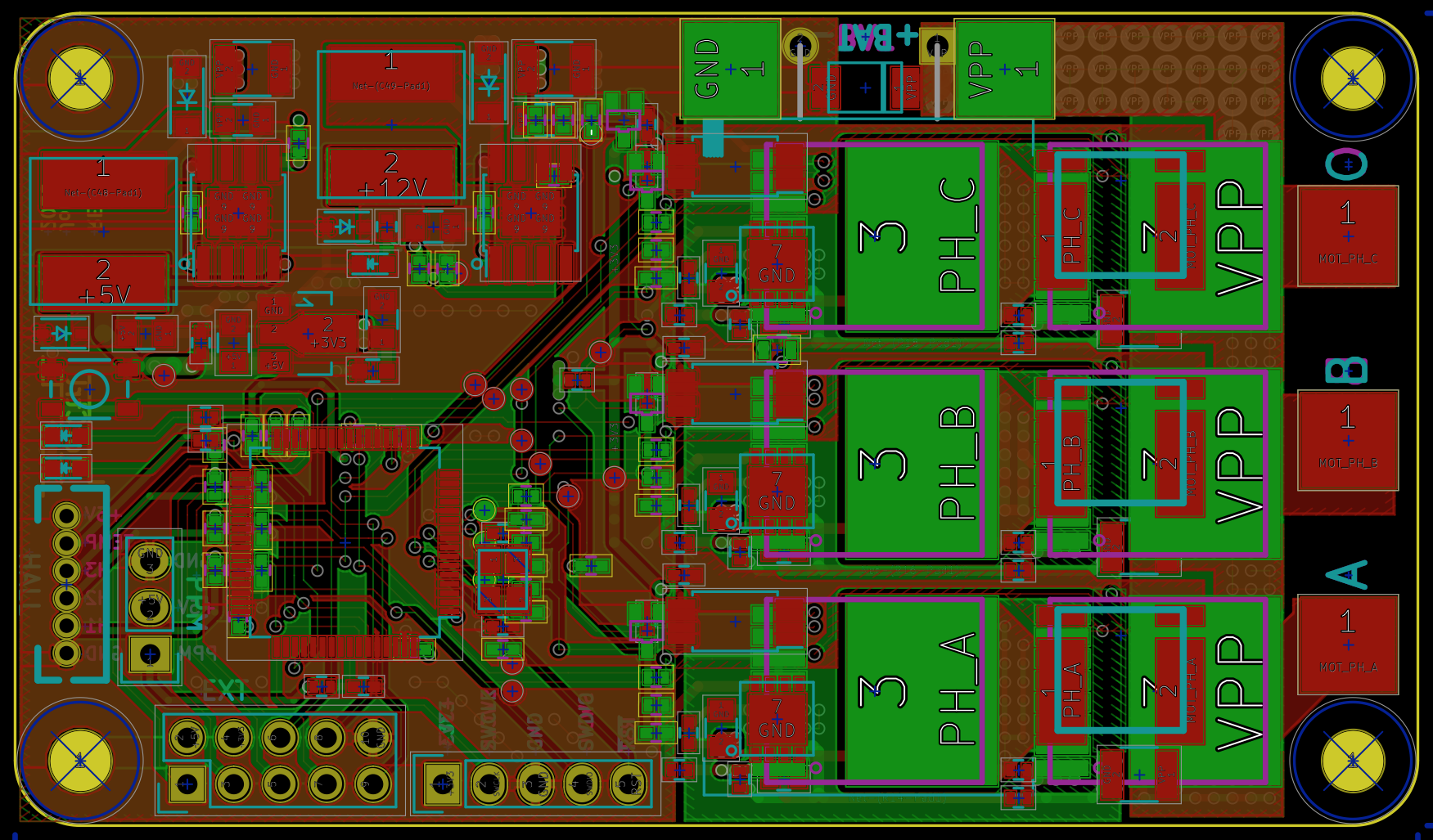

MotCtrl, from the project README
From the project README

Main components on the MotCtrl

STM32F446R(C-E)TxLM5101AINA240A2LM22675-5.0AZ1117CR-3.3

MotCtrl bill of materials (BOM)

137 components, 55 distinct parts.

QtyPartRefs
1
STM32F446R(C-E)Tx
U1
3
LM5101A
U2, U3, U4
3
INA240A2
U5, U6, U7
2
LM22675-5.0
U8, U10
1
AZ1117CR-3.3
U9
6
FDBL0110N60
Q1, Q2, Q3, Q4, Q5, Q6
1
16 MHz
Y1
1
CONN_01X06
P1
1
CONN_01X03
P2
1
CONN_02X05
P3
1
CONN_01X05
P4
1
10k
NTC1
1
PTS810
SW1
1
Phase A
TP1
1
Phase B
TP2
1
Phase C
TP3
1
Bat+
TP4
1
Bat-
TP5
4
BAT854SW
D1, D2, D3, D4
3
LED
D5, D6, D12
Show 35 more
QtyPartRefs
1
PTVS51VP1UP
D7
2
SS26FL
D8, D9
1
SP4023
D10
1
SP4021
D11
1
33u/1A
L1
1
47u/1A
L2
4
10n
C1, C38, C39, C40
5
4n7
C2, C3, C4, C5, C6
3
10u
C7, C27, C28
1
2u2
C8
16
100n
C9, C10, C11, C14, C15, C16, C21, C22 +8
5
np
C12, C13, C35, C36, C37
1
4u7
C17
4
10u
C18, C19, C20, C45
3
220n/24V/X7R
C24, C25, C26
2
10u/50V
C41, C42
2
1u/50V
C43, C44
1
22u
C47
2
10n/50V
C48, C49
1
22u/10V
C50
1
10u/16V
C51
1
2200u/63V1
C52
1
20k
R1
1
1k8
R2
6
10k
R3, R8, R9, R10, R11, R39
4
2k2
R4, R5, R6, R7
2
100R
R12, R13
6
4R7
R14, R15, R16, R17, R18, R19
9
33k
R20, R21, R22, R23, R24, R25, R29, R31 +1
3
WSLP2726 / 0.5 mOhm
R26, R27, R28
4
0R
R30, R32, R34, R43
4
3k9
R35, R36, R37, R42
1
470k
R38
1
787R
R40
1
1k
R41

MotCtrl design files

The KiCad project lives in the osannolik/MotCtrl repository on GitHub; these links point at the commit this page was built from.

MotCtrl: common questions

What microcontroller does the MotCtrl use?

The MotCtrl is built around the STM32F446R(C-E)Tx, from the STM32 family.

How big is the MotCtrl PCB?

The MotCtrl measures 76.7 × 44.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the MotCtrl?

137 components, from 55 distinct parts. The full bill of materials is listed on this page.

Where can I download the MotCtrl design files?

From the osannolik/MotCtrl repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the MotCtrl design in my own project?

Yes, under the terms of its GPL-3.0 license, which osannolik chose for the repository.

Can I test firmware for the MotCtrl without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
