About the Icicle-Alarm-Clock PCB
Icicle-Alarm-Clock is an open source PCB design by oSnwy, published on GitHub. It is a 2-layer board measuring 80.7 × 63.2 mm, with 10 components from 8 distinct parts.
Other key parts include the WEMOS_C3_mini. By type, the board carries 4 switches, 2 resistors, 1 IC, 1 transistor, 1 connector and 1 buzzer.

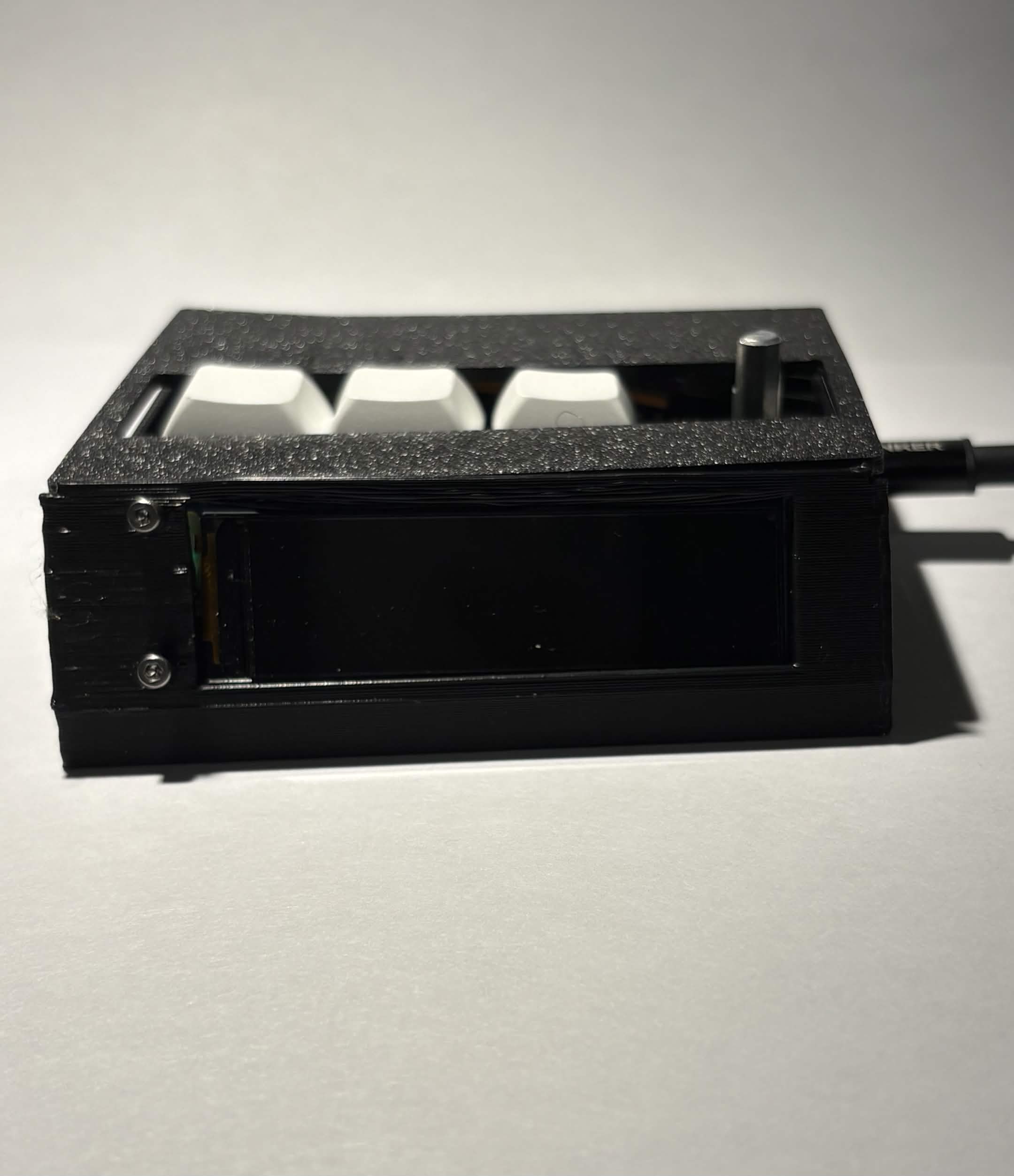

From the project
Keep in mind that the type of microcontroller you are using may affect the firmware.
Keep in mind that the type of microcontroller you are using may affect the firmware.
I used Adafruit and SPI to connect the microcontroller to the THT display, and wifi.h and time.h to get and store the time from pool.ntp.org. You may need to download the libraries before using them.
Defining each pin of the microcontroller makes it easier and more organized. This will change depending on how your microcontroller is wired.
Main components on the Icicle-Alarm-Clock
Icicle-Alarm-Clock bill of materials (BOM)
10 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WEMOS_C3_mini | WEMOS_C3_mini | U2 |
| 1 | S8050 | TO-92_Inline | Q1 |
| 1 | Conn_01x08 | PinHeader_1x08_P2.54mm_Vertical | J1 |
| 1 | Buzzer | Buzzer_12x9.5RM7.6 | BZ1 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW1 |
| 3 | SW_Push | SW_MX_1u | SW2, SW3, SW4 |
| 1 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
