Half bridge

paltatech·half-bridge·pcb design/IGBT_board.kicad_pcb

Half bridge PCB layout, top view — open source board by paltatech
Simulate this board

About the Half bridge PCB

Half bridge is an open source PCB design by paltatech, published on GitHub. It is a 4-layer board measuring 162 × 100 mm, with 249 components from 76 distinct parts.

Other key parts include the ISO5852S, LM5030, LM1117IMP-v.v, SI8710B and OPA2172. By type, the board carries 84 resistors, 80 capacitors, 25 diodes, 20 transistors, 13 test points and 11 ICs.

From the project

TO247 half bridge module for EVs

70kw nominal, 150kw peak TO247 IGBT to allow for easy silicon upgrades and power capabilities. Its also cheaper. Watercooled Embedded security features (desaturation, soft turn off, reinforced isolation)

Will need some cnc milling, components, a pcb, and some spot welding

Made open source with open source tools (kicad, freecad)

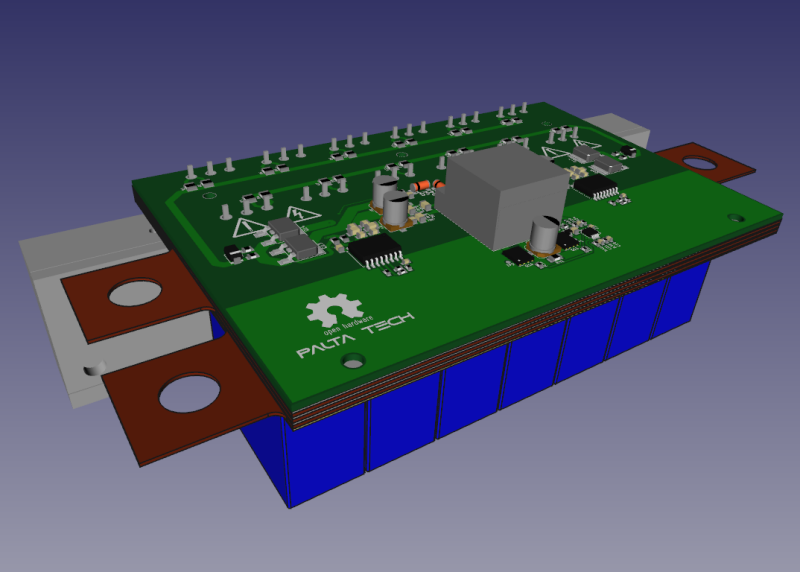

Half bridge, from the project README
From the project README

Main components on the Half bridge

ISO5852SLM5030LM1117IMP-v.vSI8710BOPA2172AMC1301LM3480

Half bridge bill of materials (BOM)

249 components, 76 distinct parts.

QtyPartRefs
2
ISO5852S
U1, U3
1
LM5030
U2
1
LM1117IMP-v.v
U5
2
SI8710B
U8, U11
2
OPA2172
U9, U12
1
AMC1301
U10
2
LM3480
U13, U14
12
IGBT
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +4
2
NPN
Q13, Q17
4
PNP
Q14, Q18, Q19, Q20
2
CSD19533Q5A
Q15, Q16
1
CONN-100MIL-M-2x8
J1
2
DESAT
J2, J3
1
PHASE
J4
1
PHASE CURRENT CONN
J5
3
MM3Z12VB
DZ1, DZ2, DZ3
2
SMCJ440CA
DZ4, DZ5
1
5v
DZ6
1
FUSE
F1
1
TRANS-3-1CT
T1
Show 56 more
QtyPartRefs
1
SW1
TP1
1
SW2
TP2
2
IN
TP3, TP13
4
GND
TP4, TP8, TP11, TP14
1
24v
TP6
2
15v
TP7, TP10
2
-15v
TP9, TP12
1
FAULT
DS1
1
PWR_GOOD
DS2
1
RESET
DS3
4
SK310A-LTP
D1, D11, D16, D18
2
RB168MM-60TR
D2, D12
4
MURS160-13-F
D3, D4, D13, D14
8
RB160MM-60TR
D5, D6, D7, D8, D9, D10, D22, D23
2
1N4148W
D15, D20
2
GSOT03C
D17, D21
1
TVS
D19
2
ES2J-LTP
D24, D25
8
100nF
C8, C36, C60, C68, C78, C80, C83, C84
6
1uF 50v
C9, C10, C11, C37, C38, C39
22
10uF 50v
C12, C13, C22, C23, C24, C25, C26, C27 +14
8
100nF 50v
C14, C15, C28, C29, C30, C31, C42, C43
2
100pF COG
C16, C44
4
1uF
C17, C56, C64, C85
1
22nF
C18
1
22uF 16v
C19
3
1nF
C20, C55, C63
1
470pF
C21
7
47uF 50v
C32, C33, C34, C35, C45, C62, C70
2
10uF
C46, C48
2
5nF 50v
C47, C49
3
100pF
C50, C77, C82
2
4.7uF
C51, C52
6
10nF
C59, C61, C67, C69, C86, C87
1
330pF
C79
1
2.2uF
C81
2
1R
R1, R2
22
20R
R3, R4, R5, R6, R7, R8, R9, R10 +14
10
10k
R25, R26, R42, R43, R70, R71, R72, R76 +2
2
10R
R27, R44
2
4.7k
R28, R45
4
12R
R29, R30, R46, R47
4
3R
R31, R32, R48, R49
2
1k
R33, R50
2
0R
R34, R37
1
26.7k
R35
2
1.15k
R36, R40
6
22R
R38, R39, R54, R56, R59, R61
1
0.22R
R41
7
1k
R51, R52, R53, R57, R58, R85, R88
3
12R
R55, R62, R83
2
4.7k
R60, R67
4
390R
R68, R74, R93, R94
4
NI
R69, R75, R89, R90
2
100R
R73, R79
2
1M
R82, R84

Half bridge design files

The KiCad project lives in the paltatech/half-bridge repository on GitHub; these links point at the commit this page was built from.

Half bridge: common questions

How big is the Half bridge PCB?

The Half bridge measures 162 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Half bridge?

249 components, from 76 distinct parts. The full bill of materials is listed on this page.

Where can I download the Half bridge design files?

From the paltatech/half-bridge repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Half bridge design in my own project?

The repository has no license, so all rights stay with paltatech. Use it as a reference, and ask the author before reusing the design.
