Tripel keyboard
About the Tripel keyboard PCB

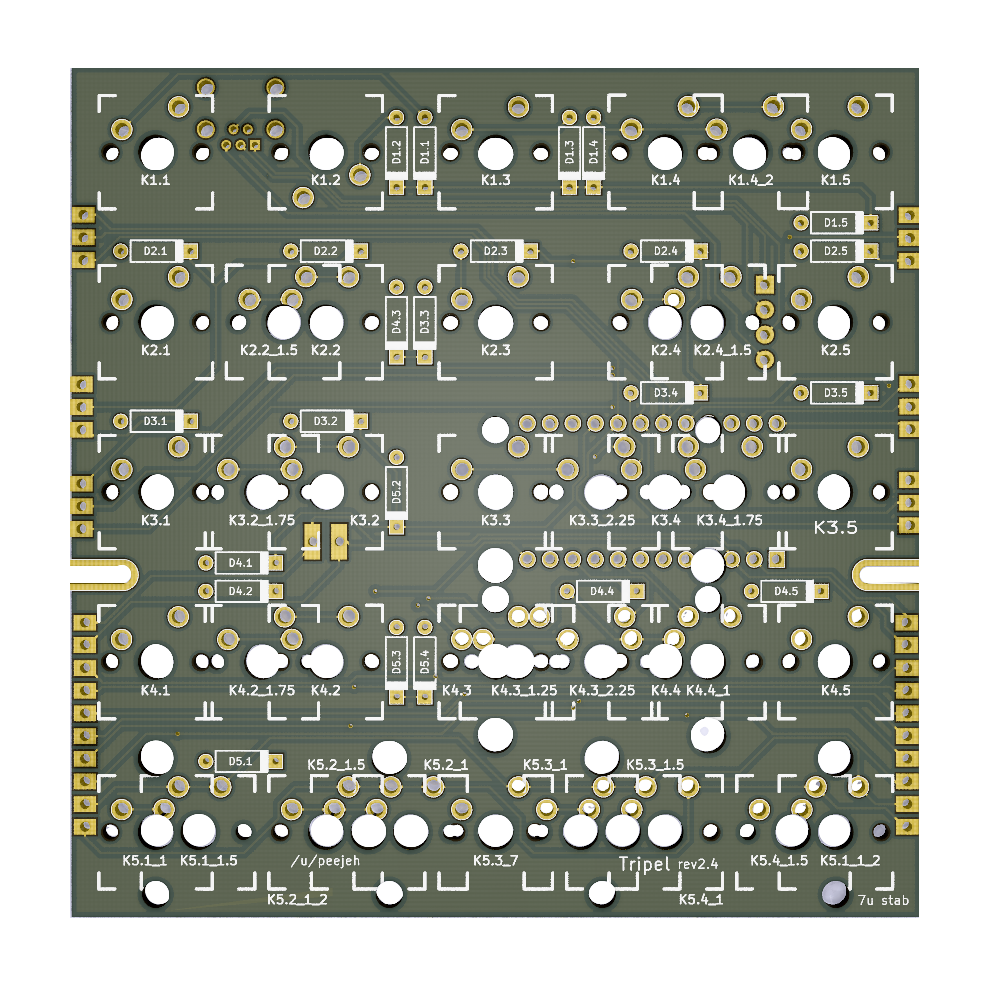

Tripel keyboard is an open source PCB design by peej, published on GitHub. It is a 2-layer board measuring 95 × 95 mm, with 67 components from 9 distinct parts.
Other key parts include the ProMicro_ChipSideDown. By type, the board carries 41 relays, 24 diodes, 1 IC and 1 connector.
It belongs with the keyboards designs in this gallery.
From the project
Ortholinear 60% 3-part keyboard PCB
Tripel is a 15 column ortholinear keyboard PCB.
The goal of this project is to build an all throughhole component, pro-micro powered ortholinear PCB that fits in a standard 60% tray mount case but built from sub-100x100mm PCB boards.
Inspired by the modular PCB projects of 40Percent.club like the Nori.
Designed to be easy to build with minimal soldering experience. Built from 3 of the same PCB. * 7u spacebar bottom row.
Main components on the Tripel keyboard
Tripel keyboard bill of materials (BOM)
67 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ProMicro_ChipSideDown | Pro_Micro_ChipSideDown | U1 |
| 1 | USB_mini_micro_B | USB_Mini-B | J6 |
| 27 | KEYSW | MX | K1.1, K1.2, K1.3, K1.4, K1.5, K2.1, K2.2, K2.3 +19 |
| 2 | KEYSW | MX_PCB_200H | K1.4_2, K5.3_7 |
| 6 | KEYSW | MX_PCB_150H | K2.2_1.5, K2.4_1.5, K5.1_1.5, K5.2_1.5, K5.3_1.5, K5.4_1.5 |
| 3 | KEYSW | MX_PCB_175H | K3.2_1.75, K3.4_1.75, K4.2_1.75 |
| 2 | KEYSW | MX_PCB_225H | K3.3_2.25, K4.3_2.25 |
| 1 | KEYSW | MX_PCB_125H | K4.3_1.25 |
| 24 | D | DIODE | D1.1, D1.2, D1.3, D1.4, D1.5, D2.1, D2.2, D2.3 +16 |
Tripel keyboard design files
The KiCad project lives in the peej/tripel-keyboard repository on GitHub; these links point at the commit this page was built from.
- Layouttripel.kicad_pcb
Tripel keyboard: common questions
How big is the Tripel keyboard PCB?
The Tripel keyboard measures 95 × 95 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Tripel keyboard?
67 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Tripel keyboard design files?
From the peej/tripel-keyboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Tripel keyboard design in my own project?
The repository has no license, so all rights stay with peej. Use it as a reference, and ask the author before reusing the design.
