Volt reg
About the Volt reg PCB
Volt reg is an open source PCB design by penayush-tronics, published on GitHub. It is a 2-layer board measuring 31.5 × 36.5 mm, with 14 components from 9 distinct parts.
Other key parts include the AMS1117-5.0 and AMS1117-3.3. By type, the board carries 5 capacitors, 3 connectors, 2 ICs, 2 switches, 1 diode and 1 resistor.

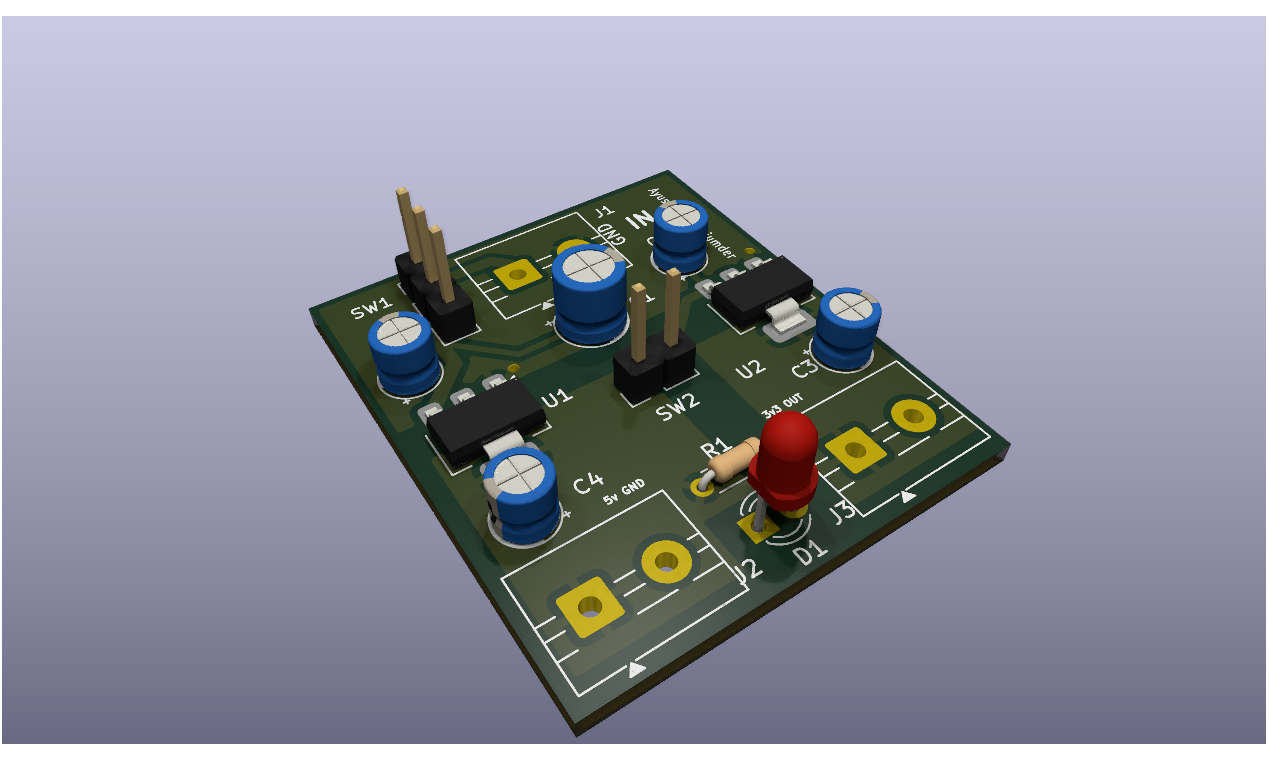

From the project
A Voltage regulator board which converts high voltage input upto 20V , to 5V and 3.3V with upto 1A of max current.
This is a simple voltage regulator board, which takes in between 6.5V and upto 20V input, and outputs both 5V and 3.3V, with a maximum current output of 1A. This project uses the well-known AMS1117 step-down linear voltage regulators, which are Low Dropout Regulators, meaning the voltage drop across them is less than normal linear regulators. Here there are 2 of them, 1 of which steps down (decreases) 6.5V-20V to 5V, and the other one which steps down 5V from the previous LDO, into 3.3V.
Main components on the Volt reg
Volt reg bill of materials (BOM)
14 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-5.0 | SOT-223-3_TabPin2 | U1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U2 |
| 3 | Screw_Terminal_01x02 | TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm | J1, J2, J3 |
| 1 | SW_DPST_x2 | PinHeader_1x03_P2.54mm_Vertical | SW1 |
| 1 | SW_DPST_x2 | PinHeader_1x02_P2.54mm_Vertical | SW2 |
| 1 | LED | LED_D3.0mm | D1 |
| 1 | C_Polarized | CP_Radial_D5.0mm_P2.50mm | C1 |
| 4 | C_Polarized | CP_Radial_D4.0mm_P1.50mm | C2, C3, C4, C5 |
| 1 | R | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1 |
Volt reg design files
The KiCad project lives in the penayush-tronics/Volt_reg repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB files/PCB.kicad_pcb
- BOMBOM.csv
Volt reg: common questions
How big is the Volt reg PCB?
The Volt reg measures 31.5 × 36.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Volt reg?
14 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Volt reg design files?
From the penayush-tronics/Volt_reg repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Volt reg design in my own project?
The repository has no license, so all rights stay with penayush-tronics. Use it as a reference, and ask the author before reusing the design.
