Daedalus keyboard

Perseus333·daedalus-keyboard·hardware/daedalus.kicad_pcb

Daedalus keyboard PCB layout, top view — open source board by Perseus333

Simulate this board

About the Daedalus keyboard PCB

Daedalus keyboard is an open source PCB design by Perseus333, published on GitHub under the AGPL-3.0 license. It is a 2-layer board measuring 267.6 × 99.8 mm, with 80 components from 7 distinct parts.

Other key parts include the Nice_Nano_V2. By type, the board carries 36 switches, 36 diodes, 2 ICs, 2 connectors and 1 capacitor.

It belongs with the keyboards and iot & wireless designs in this gallery.

From the project

An open-source, split, wireless ergonomic keyboard with trackpad and encoder

Daedalus is a compact open-source, split, wireless ergonomic keyboard with trackpad and encoder.

It's a 36 key low-profile, split, wireless, ergonomic keyboard that includes a trackpad and a rotary encoder powered with ZMK on 2 Nice!Nano microcontrollers running on 2 110mAh batteries. It features a key splay inspired from the TOTEM, and a key layout modelled after my hand and inspired by the Corne. It's meant to be portable, silent and unobstrusive thanks to the Ambient Twighlight silent switches and the wireless connectivity.

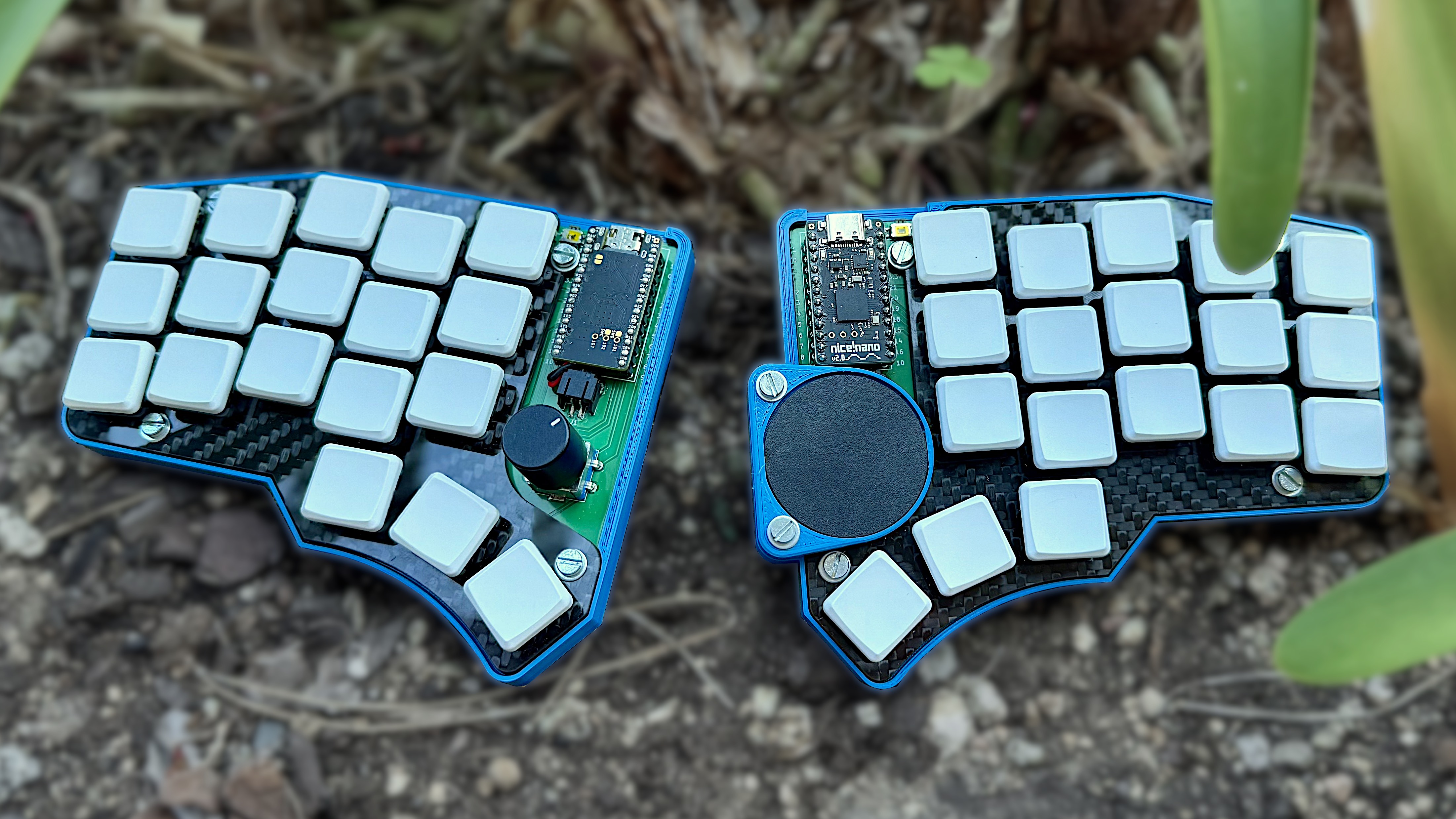

Daedalus keyboard, from the project README — From the project README

Main components on the Daedalus keyboard

Daedalus keyboard bill of materials (BOM)

80 components, 7 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
2	Nice_Nano_V2	Nice_Nano_V2	MCU1, MCU2
2	JST_PH_1x2_Conn	JST_PH_S2B-PH-SM4-TB_1x02-1MP_P2.00mm_Horizontal	J1, J2
1	RotaryEncoder_Switch	RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm	EC11
36	Keyswitch	Choc_V1	S1, S2, S3, S4, S5, S6, S7, S8 +28
2	Switch	SW_SPST_CK_KMS2xxG	SR2, SRL1
36	Diode	Diode_SOD-123	D1, D2, D3, D4, D5, D6, D7, D8 +28
1	Conn_01x12_Pin	Hirose_FH12-12S-0.5SH_1x12-1MP_P0.50mm_Horizontal	C1

Daedalus keyboard design files

The KiCad project lives in the Perseus333/daedalus-keyboard repository on GitHub; these links point at the commit this page was built from.

Daedalus keyboard: common questions

How big is the Daedalus keyboard PCB?

The Daedalus keyboard measures 267.6 × 99.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Daedalus keyboard?

80 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Daedalus keyboard design files?

From the Perseus333/daedalus-keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Daedalus keyboard design in my own project?

Yes, under the terms of its AGPL-3.0 license, which Perseus333 chose for the repository.
