Carrier template
About the Carrier template PCB
Carrier template is an open source PCB design by pinguz97, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 50 × 42 mm, with 23 components from 3 distinct parts.
By type, the board carries 16 test points and 3 connectors.
From the project
Kicad design files for a Zynq 7020 SoM

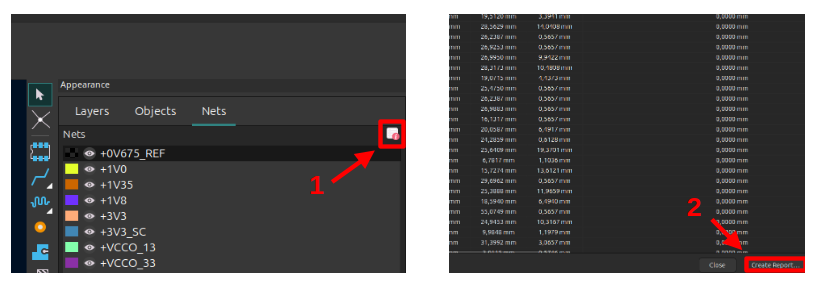

This folder contains: - A python script to add die lengths to the Xilinx SoC footprint - A python script to calculate SoM pcb track propagation delays - A Kicad plugin to create a carrier pcb template - A bash script to generate carrier connector symbols
This script adds die lengths to the Zynq SoC .kicadmod` footprint.
Xilinx provides Die-to-Package delay data by specifying max and min delay values (in ps). Unluckly, Kicad footprints can only store die-length values (in mm).
Carrier template bill of materials (BOM)
23 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | DF40C-100DS-0.4V_51 HRS_DF40C-100DP-0.4V_51_ | HRS_DF40C-100DP-0.4V_51_ | J1, J2, J3 |
| 4 | Standoff_M2.5x3mm__Wurth_9774030151R | Standoff_M2.5x3mm__Wurth_9774030151R | H1, H2, H3, H4 |
| 16 | Pogo_Pin_2mm_Base | Pogo_Pin_2mm_Base | TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8 +8 |
Carrier template design files
The KiCad project lives in the pinguz97/Zynq-SoM repository on GitHub; these links point at the commit this page was built from.
Carrier template: common questions
How big is the Carrier template PCB?
The Carrier template measures 50 × 42 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Carrier template?
23 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Carrier template design files?
From the pinguz97/Zynq-SoM repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Carrier template design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which pinguz97 chose for the repository.
