Pepuino-Split-44 PCB layout, top view — open source board by pipejosh

About the Pepuino-Split-44 PCB

Pepuino-Split-44 is an open source PCB design by pipejosh, published on GitHub. It is a 2-layer board measuring 283.4 × 105.2 mm, with 146 components from 9 distinct parts.

By type, the board carries 48 switches, 44 LEDs, 44 diodes, 4 resistors and 2 connectors.

It belongs with the iot & wireless, keyboards and displays & leds designs in this gallery.

From the project

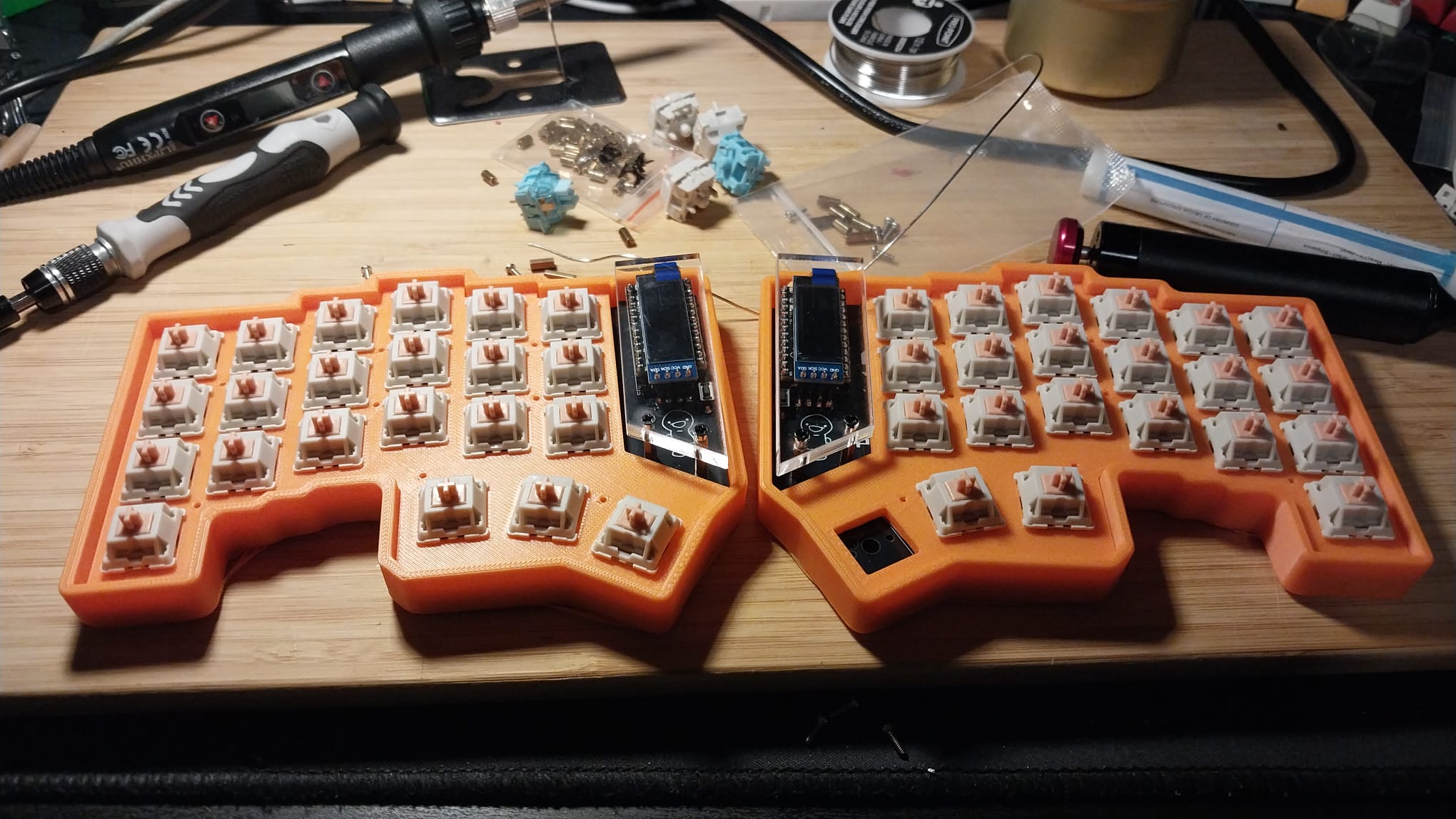

A wireless split keyboard with 44 keys!

This is a custom wireless keyboard inpired in the corne and sofle layout so my wrists arent crippled anymore! A 44 keys keybaord wireless powered by a super mini (the cheapest BT microcontroller I could find) its wirelessssssss btw! Featuring really cool art and bluetooth connectivity!

Grand Total Project Estimate Cost: $94.93

Pepuino-Split-44, from the project README
From the project README

Pepuino-Split-44 bill of materials (BOM)

146 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
OLED_128X32
OLED_128x32
J1, J2
4
DNP
DNP1, DNP2, DNP3, DNP4
2
EG1218
S1, S2
44
Switch
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +36
2
Switch
SW45, SW46
44
YS-SK6812MINI-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +36
44
~
D1, D2, D3, D4, D5, D6, D7, D8 +36
2
806K
R1, R3
2
2M
R2, R4

Pepuino-Split-44 design files

The KiCad project lives in the pipejosh/Pepuino-Split-44 repository on GitHub; these links point at the commit this page was built from.

Pepuino-Split-44: common questions

How big is the Pepuino-Split-44 PCB?

The Pepuino-Split-44 measures 283.4 × 105.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pepuino-Split-44?

146 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pepuino-Split-44 design files?

From the pipejosh/Pepuino-Split-44 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pepuino-Split-44 design in my own project?

The repository has no license, so all rights stay with pipejosh. Use it as a reference, and ask the author before reusing the design.
