About the PCBWay-11th-Design-Contest PCB
PCBWay-11th-Design-Contest is an open source STM32 PCB design by platima, published on GitHub under the MIT license. It is a 2-layer board measuring 58.7 × 98.5 mm, with 44 components from 10 distinct parts.
Its main chip is the STM8S003F3P6, from the STM32 family. By type, the board carries 28 diodes, 10 capacitors, 3 resistors, 1 IC and 1 connector.
It belongs with the power & battery designs in this gallery.
From the project
🏆 My entry for the PCBWay 11th Design Contest: "11 Years of Innovation and Beyond with PCBWay"
🏆 My entry for the PCBWay 11th Design Contest: "11 Years of Innovation and Beyond with PCBWay"

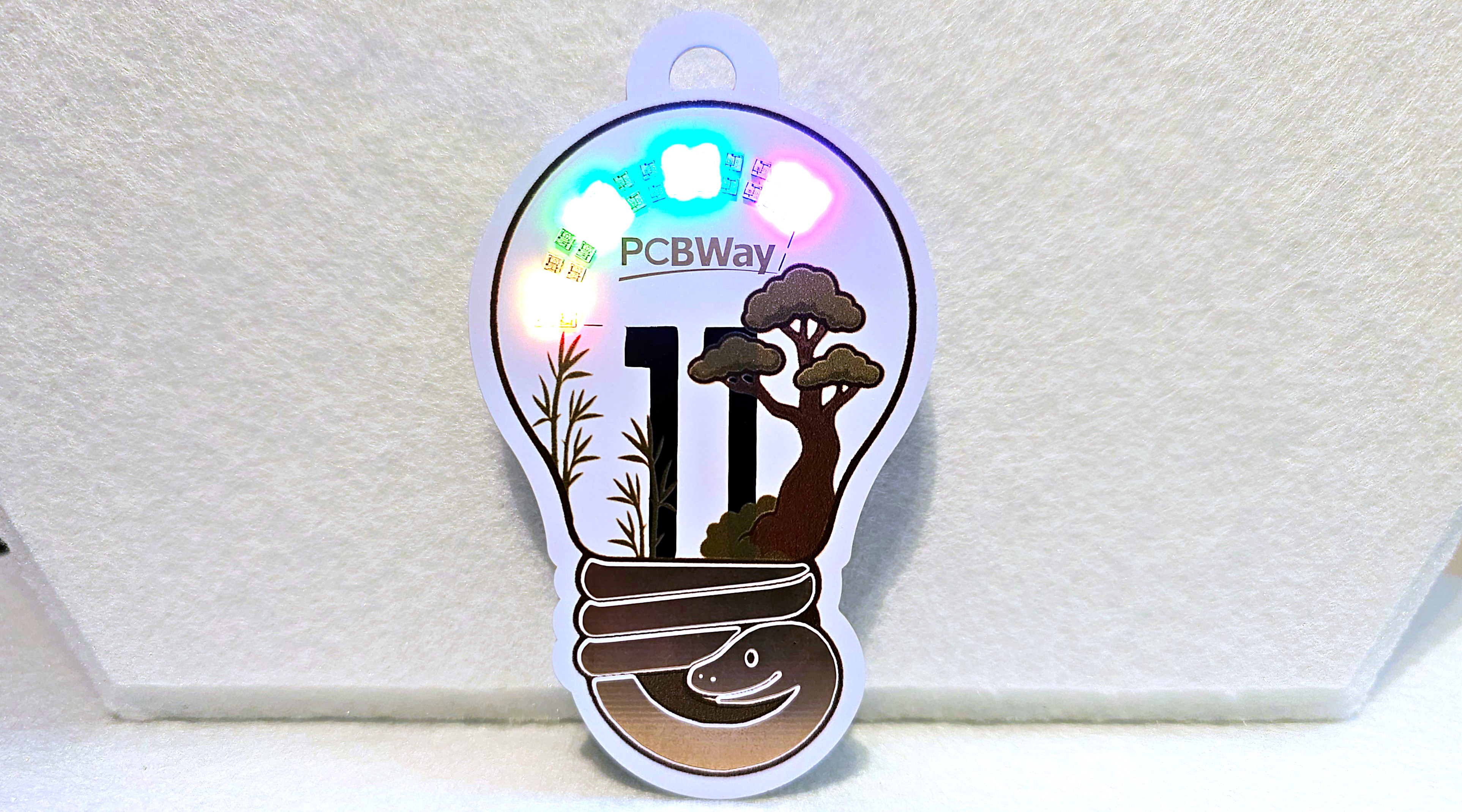

A creative lightbulb-shaped badge featuring touch-activated LED animations, combining PCB art with functional electronics. The badge celebrates PCBWay's 11-year journey with an interactive cog/gear LED pattern that comes to life when you touch the golden snake base.

Main components on the PCBWay-11th-Design-Contest
PCBWay-11th-Design-Contest bill of materials (BOM)
44 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM8S003F3P6 | SOP65P640X120-20N | IC1 |
| 1 | Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | WAFER-PH2.0-2PWB | CONN-SMD_2P-P2.00_XUNPU_WAFER-PH2.0-2PWB | H1 |
| 28 | XL-2020RGBC-WS2812B | LED_XL-2020RGBC-WS2812B_Innerdot | D1, D2, D3, D4, D5, D6, D7, D8 +20 |
| 8 | 100NF 100nF | C_0603_1608Metric | C1, C4, C9, C10, C11, C12, C13, C14 |
| 1 | 10UF 10uF | C_0603_1608Metric | C2 |
| 1 | 1UF 1uF | C_0603_1608Metric | C5 |
| 1 | 330OHM 330Ohm | R_0805_2012Metric | R1 |
| 1 | 10KOHM 10kOhm | R_0805_2012Metric | R2 |
| 1 | 100KOHM 100kOhm | R_0603_1608Metric | R3 |
PCBWay-11th-Design-Contest design files
The KiCad project lives in the platima/PCBWay-11th-Design-Contest repository on GitHub; these links point at the commit this page was built from.
PCBWay-11th-Design-Contest: common questions
What microcontroller does the PCBWay-11th-Design-Contest use?
The PCBWay-11th-Design-Contest is built around the STM8S003F3P6, from the STM32 family.
How big is the PCBWay-11th-Design-Contest PCB?
The PCBWay-11th-Design-Contest measures 58.7 × 98.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCBWay-11th-Design-Contest?
44 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PCBWay-11th-Design-Contest design files?
From the platima/PCBWay-11th-Design-Contest repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the PCBWay-11th-Design-Contest design in my own project?
Yes, under the terms of its MIT license, which platima chose for the repository.
Can I test firmware for the PCBWay-11th-Design-Contest without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
