TMS9118-9128
About the TMS9118-9128 PCB
TMS9118-9128 is an open source PCB design by polpo, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 20.3 × 50.8 mm, with 4 components from 2 distinct parts.
From the project

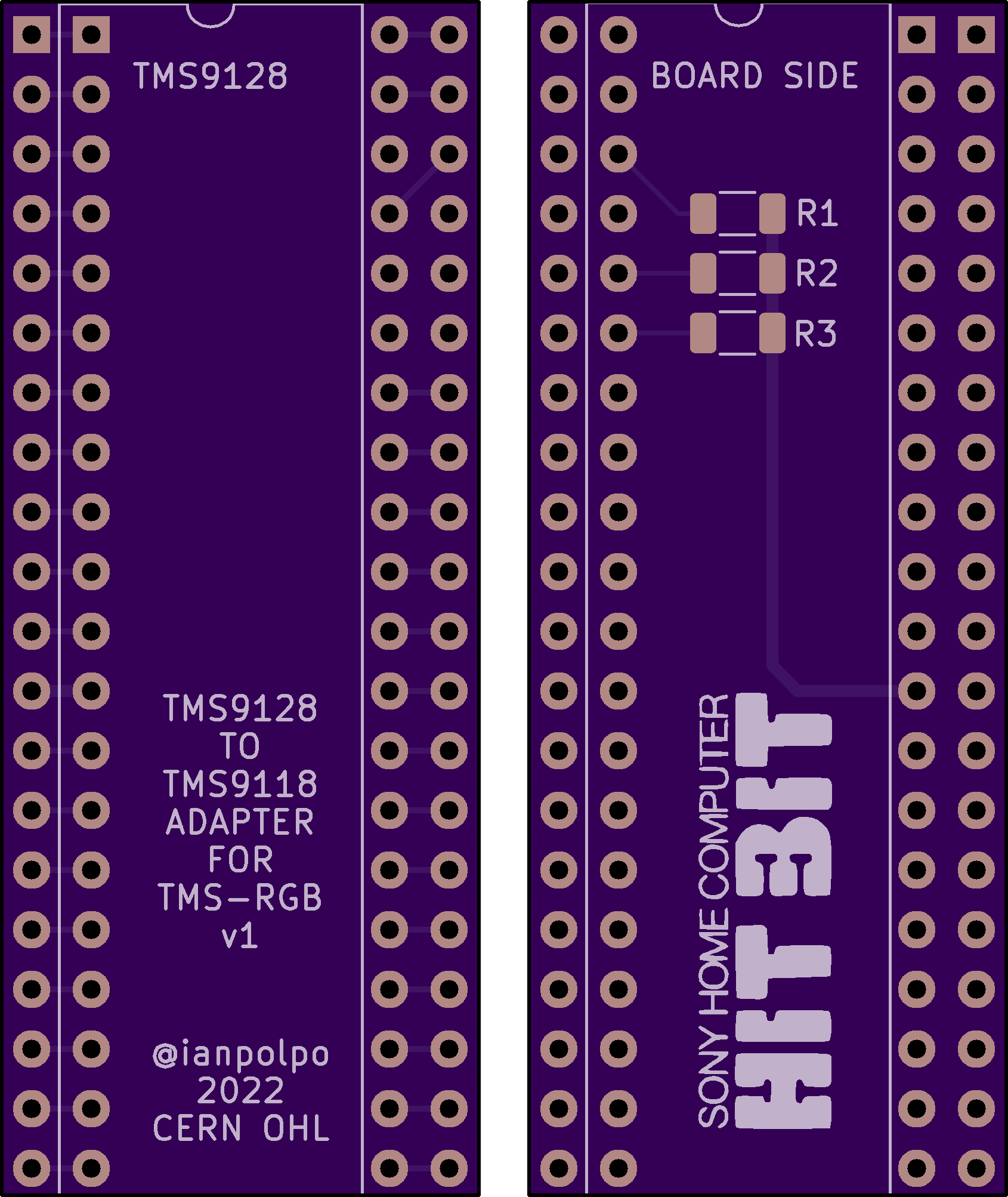

Adapter that allows computers that use the TMS9118 or TMS9918 VDP to use a TMS9128 or TMS9928 and TMS-RGB for RGB output.
This is a PCB that will let you plug a TMS9128 or TMS9928 VDP, along with a TMS-RGB, into a system that uses a TMS9118 or TMS9918 VDP. Such systems include numerous MSX computers, the NABU, and the TI 99/4A.
The adapter is intended to go in the sandwich of: TMS9x28 - socket - TMS-RGB - adapter - pin headers - socket - system motherboard.
There are two versions of the adapter, one for the TMS9128 and one for the TMS9928:
TMS9118-9128 bill of materials (BOM)
4 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DIP-40_W15.24mm | DIP-40_W15.24mm | TMS9128 |
| 3 | 470 R_1206_3216Metric | R_1206_3216Metric | R1, R2, R3 |
TMS9118-9128 design files
The KiCad project lives in the polpo/tms-adapter repository on GitHub; these links point at the commit this page was built from.
TMS9118-9128: common questions
How big is the TMS9118-9128 PCB?
The TMS9118-9128 measures 20.3 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TMS9118-9128?
4 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the TMS9118-9128 design files?
From the polpo/tms-adapter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the TMS9118-9128 design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which polpo chose for the repository.
