HMSensor-FlashStation
About the HMSensor-FlashStation PCB
HMSensor-FlashStation is an open source PCB design by psi-4ward, published on GitHub under the MIT license. It is a 2-layer board measuring 31.2 × 39.4 mm, with 8 components from 8 distinct parts.
By type, the board carries 6 connectors, 1 switch and 1 capacitor.
It belongs with the iot & wireless designs in this gallery.
From the project
Helper PCB to flash Asksin++ HMSensor PCBs
Hilfsplatine um HMSensor PCBs mit Hilfe von PogoPins einzuspannend und zu flashen.
HMSensor versucht eine universelle Hardware-Basis für AskSin++ Sensoren und Aktoren zu sein.
HMSensor PCB from pa-pa HMSensor Documentation on asksinpp.de

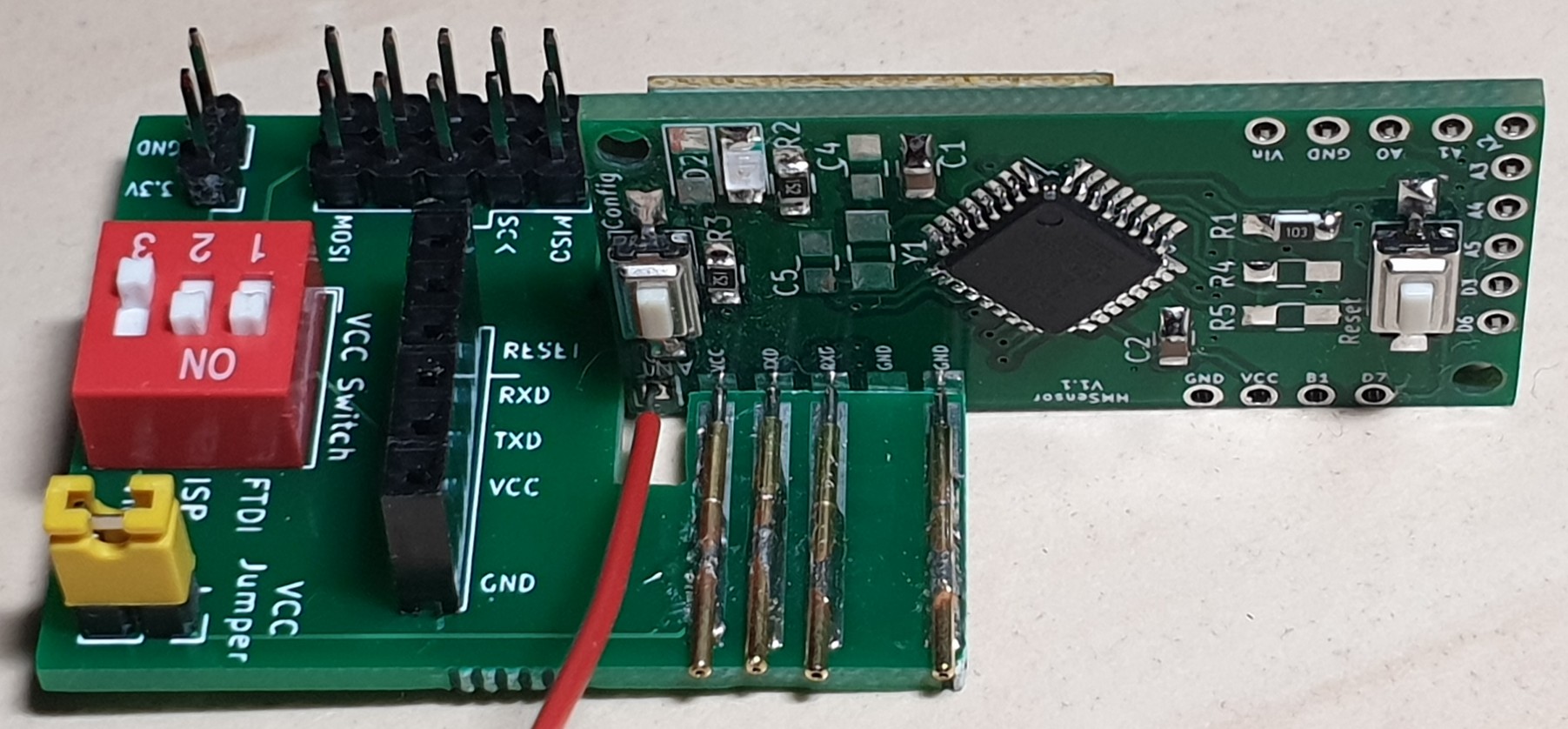

Auf dem Testaufbau sind P75-B1 Pogo Pins verbaut.
RX/TX ist nicht gedreht gegenüber dem USB-UART. Entweder FTDI über JumperWire anschließen und RX/TX drehen oder den Fehler mit Draht auf der Platine beheben. RESET Kondensator fehlt
HMSensor-FlashStation bill of materials (BOM)
8 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Vin 3.3V | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | FTDI | PinHeader_1x06_P2.54mm_Vertical | J2 |
| 1 | ISP | PinHeader_2x05_P2.54mm_Vertical | J3 |
| 1 | HMSensor Pogo 2 | PogoPad_5x | J4 |
| 1 | HMSensor Pogo 1 | PogoPad_5x | J5 |
| 1 | VCC Jumper | PinHeader_2x01_P2.54mm_Vertical | J6 |
| 1 | VCC Switch | SW_DIP_SPSTx03_Slide_9.78x9.8mm_W7.62mm_P2.54mm | SW1 |
| 1 | 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1 |
HMSensor-FlashStation design files
The KiCad project lives in the psi-4ward/HMSensor-FlashStation repository on GitHub; these links point at the commit this page was built from.
- LayoutFlash-Station.kicad_pcb
HMSensor-FlashStation: common questions
How big is the HMSensor-FlashStation PCB?
The HMSensor-FlashStation measures 31.2 × 39.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the HMSensor-FlashStation?
8 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the HMSensor-FlashStation design files?
From the psi-4ward/HMSensor-FlashStation repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the HMSensor-FlashStation design in my own project?
Yes, under the terms of its MIT license, which psi-4ward chose for the repository.
