Usb pd mch hotplate

quasiengineer·usb-pd-mch-hotplate·pcb/usb-pd-mch-hotplate.kicad_pcb

Usb pd mch hotplate PCB layout, top view — open source STM32 board by quasiengineer
Simulate this board

About the Usb pd mch hotplate PCB

Usb pd mch hotplate is an open source STM32 PCB design by quasiengineer, published on GitHub. It is a 2-layer board measuring 62.5 × 62 mm, with 38 components from 24 distinct parts.

Its main chip is the STM32G431CBTx, from the STM32 family. Other key parts include the TLV701. By type, the board carries 13 capacitors, 11 resistors, 5 connectors, 2 ICs, 2 diodes and 2 inductors.

It belongs with the power & battery designs in this gallery.

From the project

Video about this project: [](https://www.youtube.com/watch?v=0ewrXzEZL8w)

Video about this project: [](https://www.youtube.com/watch?v=0ewrXzEZL8w)

Archive with gerber files and drill locations could be found here

Step file for MCH holder. Please note that it's better to adjust model for exact dimensions of MCH plate (plus some tolerance).

- MCH itself, 50x50x2mm, up to 24V, 150W - steel washers, M2x5, 0.2mm thick, 8 pcs - ceramic fiber paper - brass inserts, M2xL4xOD3, 4 pcs - steel standoffs, M2xL25, 4 pcs - bolts for MCH holder mount, M2xL6xOD4, 4pcs - NTC 100k thermistor, 871-B57703M1104A002 - display, DFRobot DFR0647 - bolts for display mount…

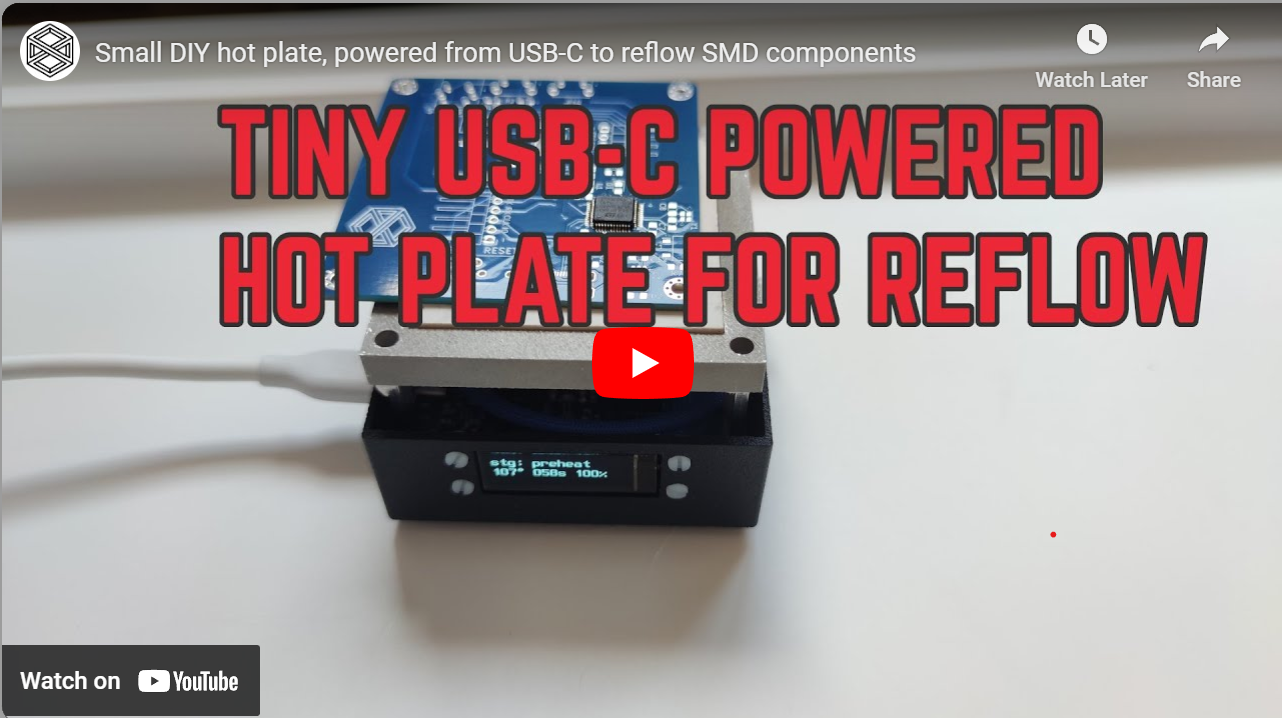

Usb pd mch hotplate, from the project README
From the project README

Main components on the Usb pd mch hotplate

STM32G431CBTxTLV701

Usb pd mch hotplate bill of materials (BOM)

38 components, 24 distinct parts.

QtyPartRefs
1
STM32G431CBTx
U1
1
TLV701
U3
1
IRLR8726
Q1
1
16Mhz, CL=10p
Y1
1
Termosensor
J1
1
Type-C
J2
1
Debug
J4
1
MCH
J6
1
Display
J8
1
BOOT
SW1
1
Red
D1
1
Green
D2
1
500mA
FB1
1
27n
L1
1
4u7
C1
3
1u
C2, C9, C12
7
100n
C3, C4, C5, C6, C10, C11, C13
2
10p
C7, C8
5
10k
R1, R7, R9, R10, R11
2
2k2
R2, R5
Show 4 more
QtyPartRefs
1
8k66
R3
1
4k7
R4
1
50
R6
1
220
R8

Usb pd mch hotplate design files

The KiCad project lives in the quasiengineer/usb-pd-mch-hotplate repository on GitHub; these links point at the commit this page was built from.

Usb pd mch hotplate: common questions

What microcontroller does the Usb pd mch hotplate use?

The Usb pd mch hotplate is built around the STM32G431CBTx, from the STM32 family.

How big is the Usb pd mch hotplate PCB?

The Usb pd mch hotplate measures 62.5 × 62 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Usb pd mch hotplate?

38 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the Usb pd mch hotplate design files?

From the quasiengineer/usb-pd-mch-hotplate repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Usb pd mch hotplate design in my own project?

The repository has no license, so all rights stay with quasiengineer. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Usb pd mch hotplate without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
