SMIQriser
About the SMIQriser PCB
SMIQriser is an open source PCB design by Qw3rtzuiop, published on GitHub. It is a 2-layer board measuring 140.8 × 95 mm, with 2 components from 1 distinct parts.
It belongs with the test & measurement designs in this gallery.
From the project

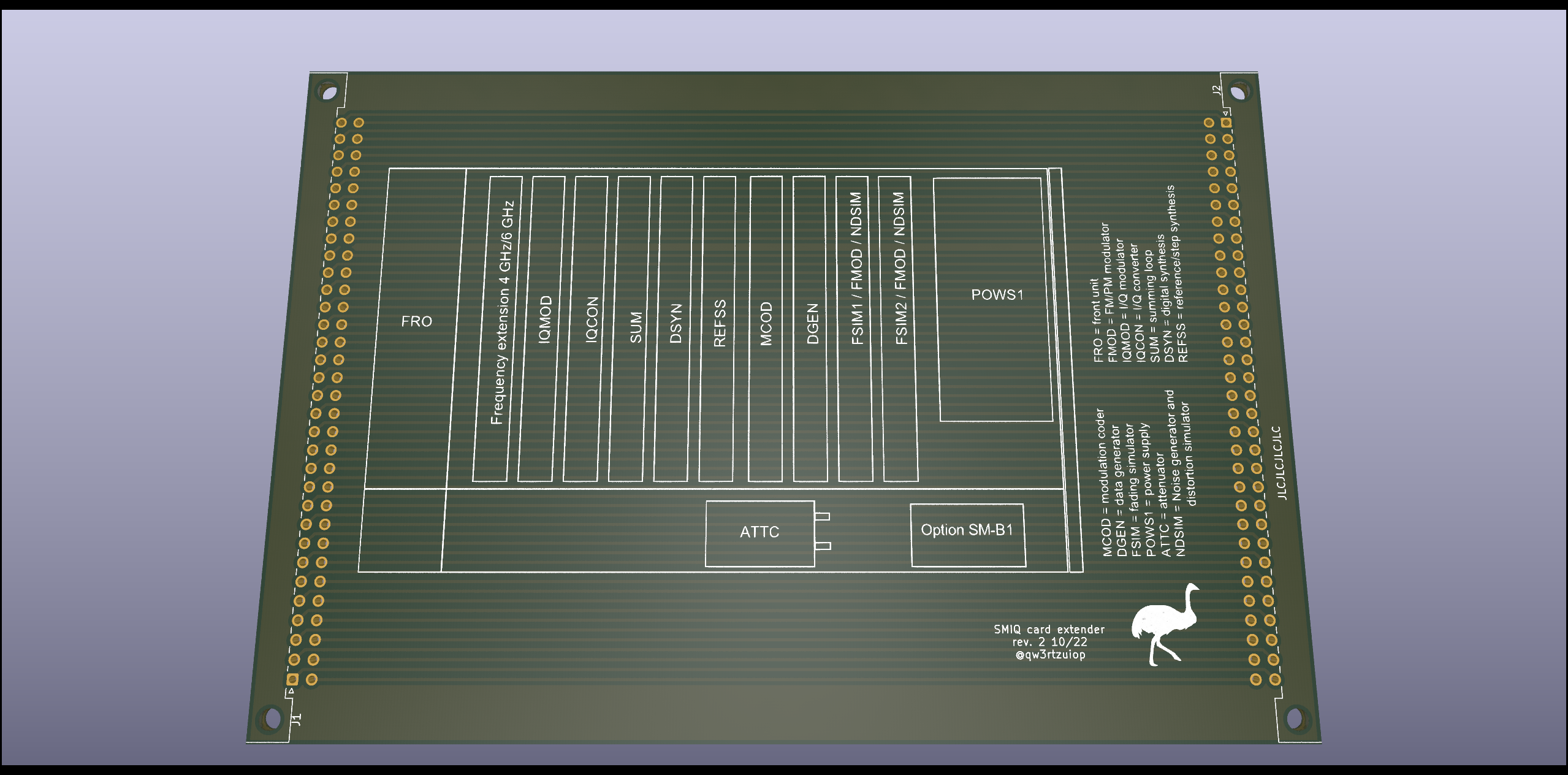

Riser/extender for Rohde & Schwarz SMIQ signal generators
SMIQriser bill of materials (BOM)
2 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | DIN41612_02x32_AB | DIN41612_B_2x32_Male_Horizontal_THT | J1, J2 |
SMIQriser design files
The KiCad project lives in the Qw3rtzuiop/SMIQriser repository on GitHub; these links point at the commit this page was built from.
- Layoutriser/riser.kicad_pcb
- Schematicriser/riser.kicad_sch
SMIQriser: common questions
How big is the SMIQriser PCB?
The SMIQriser measures 140.8 × 95 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SMIQriser?
2 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the SMIQriser design files?
From the Qw3rtzuiop/SMIQriser repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SMIQriser design in my own project?
The repository has no license, so all rights stay with Qw3rtzuiop. Use it as a reference, and ask the author before reusing the design.
