About the Bleachedplusplus PCB

Bleachedplusplus is an open source NXP PCB design by ramphands, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 126 × 46 mm, with 10 components from 2 distinct parts.

Its main chip is the Teensy-LC_minimal, from the NXP family.

From the project

slightly expanded and simplified version of the original Bleached by andr-ew

4x 5mm M2.5 male-female standoffs - to be used between the board and the bottom panel (any length >3mm would be fine)

Gerbers are available as a .zip file in the GBR directory. Simply provide the .zip file to a fabrication house. JLCPCB is perhaps the most inexpensive. If using JLCPCB, be sure to use the "specify a location" option to place the unsightly order code under the Teensy, as seen in the render. The option looks like this:

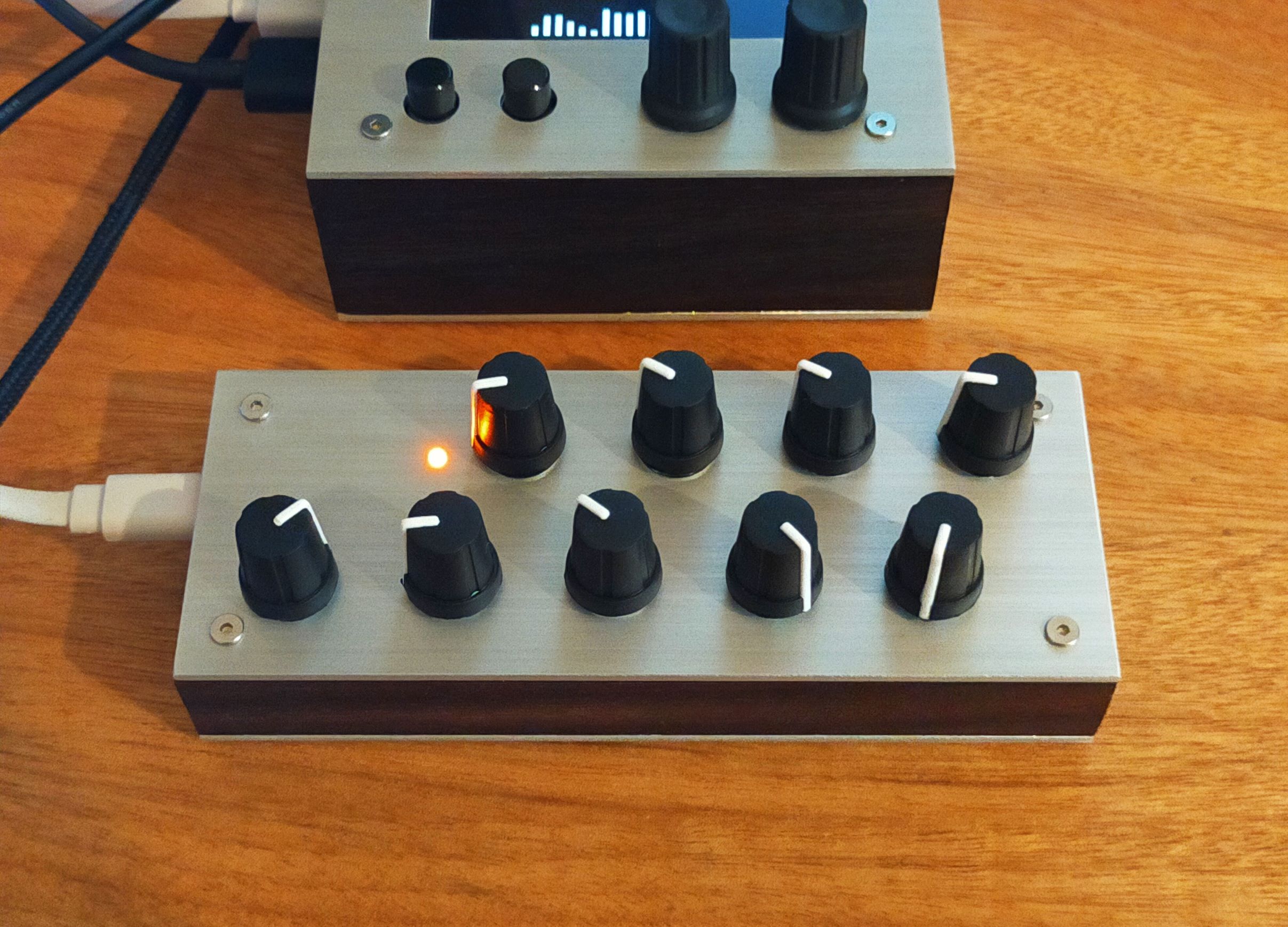

Bleachedplusplus, from the project README
From the project README

Main components on the Bleachedplusplus

Teensy-LC_minimal

Bleachedplusplus bill of materials (BOM)

10 components, 2 distinct parts.

QtyPartRefs
1
Teensy-LC_minimal
U1
9
R_POT
RV1, RV2, RV3, RV4, RV5, RV6, RV7, RV8 +1

Bleachedplusplus design files

The KiCad project lives in the ramphands/bleachedplusplus repository on GitHub; these links point at the commit this page was built from.

Bleachedplusplus: common questions

What microcontroller does the Bleachedplusplus use?

The Bleachedplusplus is built around the Teensy-LC_minimal, from the NXP family.

How big is the Bleachedplusplus PCB?

The Bleachedplusplus measures 126 × 46 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bleachedplusplus?

10 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bleachedplusplus design files?

From the ramphands/bleachedplusplus repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Bleachedplusplus design in my own project?

Yes, under the terms of its GPL-3.0 license, which ramphands chose for the repository.

Can I test firmware for the Bleachedplusplus without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
