About the PCB Business Card

PCB Business Card is an open source PCB design by Raziz1, published on GitHub. It is a 2-layer board measuring 88.9 × 50.8 mm, with 5 components from 5 distinct parts.

Other key parts include the NT3H1101W0FTTJ. By type, the board carries 2 capacitors, 1 IC, 1 diode and 1 resistor.

It belongs with the iot & wireless designs in this gallery.

From the project

A PCB business card with NFC capabilities designed in KiCad

The figure below shows the equivalent electrical circuits of the dynamic NFC tag and its antenna.

The above circuit can be simplified into an equivalent RLC circuit.

We know that for an NFC tag, the desired frequency is 13.56 MHz. We also know that the IC's parallel capacitance is 50 pF (from the datasheet). Ignore the parasitic capacitance of the antenna for now; we will come back to that. Based on this information, we can work backwards to determine the required inductance of the antenna.

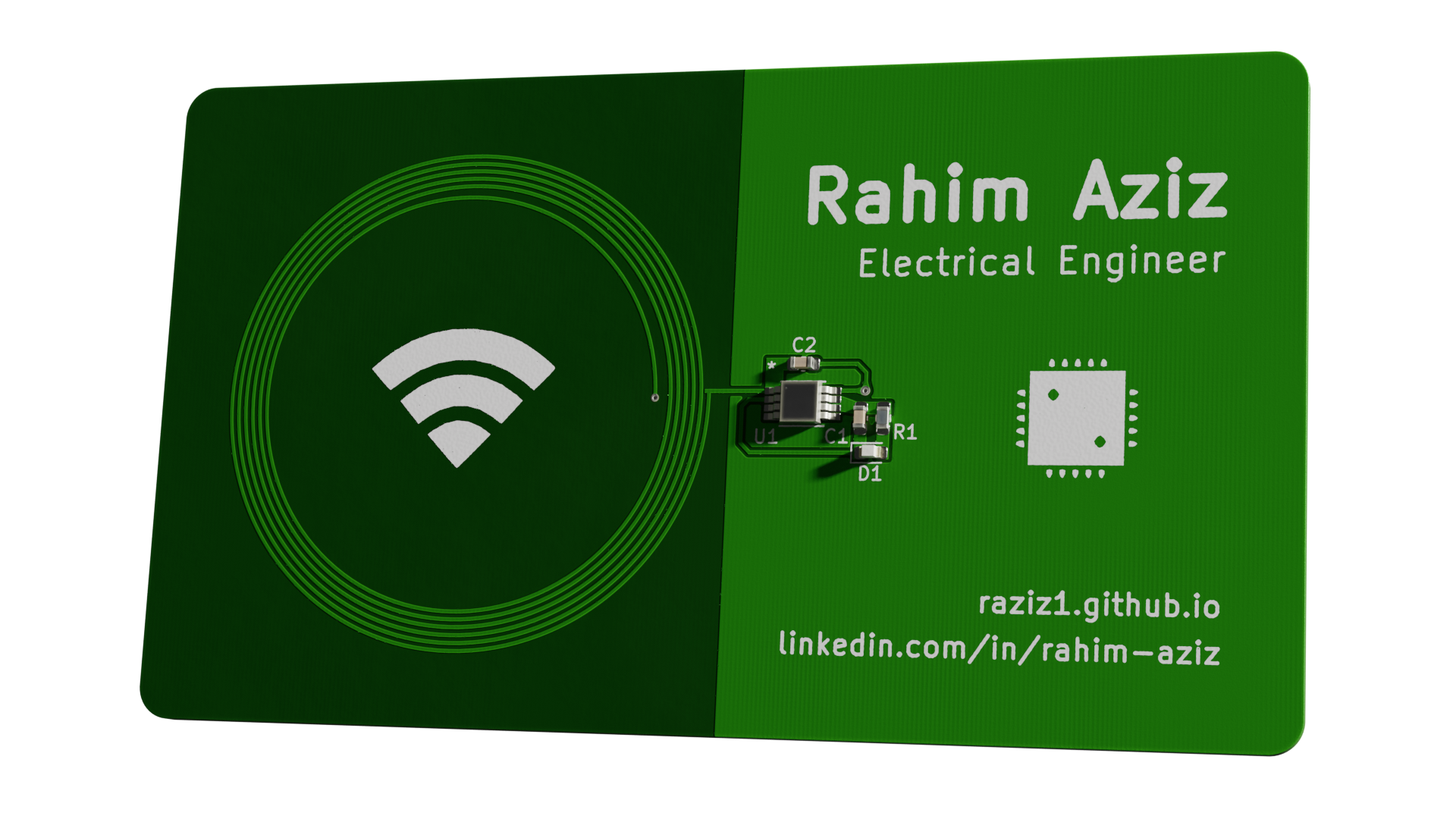

PCB Business Card, from the project README
From the project README

Main components on the PCB Business Card

NT3H1101W0FTTJ

PCB Business Card bill of materials (BOM)

5 components, 5 distinct parts.

QtyPartRefs
1
NT3H1101W0FTTJ
U1
1
RED
D1
1
220n
C1
1
2p
C2
1
47
R1

PCB Business Card design files

The KiCad project lives in the Raziz1/PCB_Business_Card repository on GitHub; these links point at the commit this page was built from.

PCB Business Card: common questions

How big is the PCB Business Card?

The PCB Business Card measures 88.9 × 50.8 mm, has 2 copper layers and is 1.600198 mm thick.

How many components are on the PCB Business Card?

5 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the PCB Business Card design files?

From the Raziz1/PCB_Business_Card repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PCB Business Card design in my own project?

The repository has no license, so all rights stay with Raziz1. Use it as a reference, and ask the author before reusing the design.
