About the Pswcls PCB

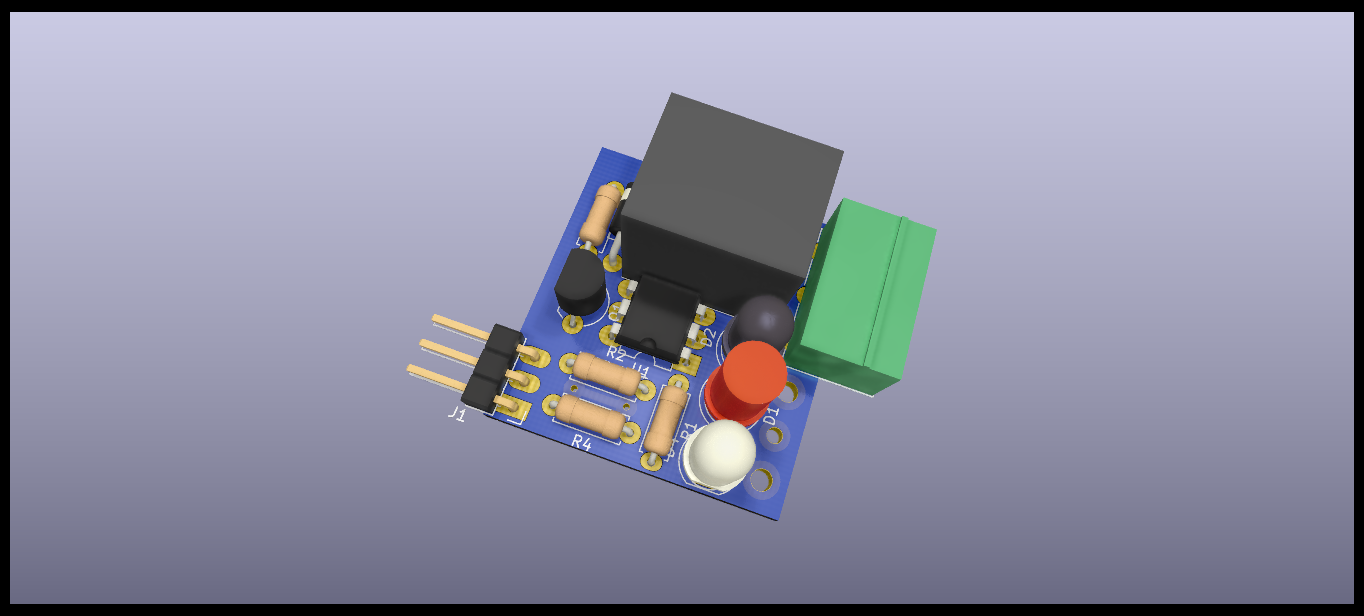

Pswcls is an open source PCB design by rick0x00, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 28.6 × 30.1 mm, with 13 components from 11 distinct parts.
Other key parts include the 4N35. By type, the board carries 4 diodes, 4 resistors, 2 connectors, 1 IC, 1 transistor and 1 relay.
From the project
Isolated power switch with relay and electrical protection commanded by logic signal
Isolated power switch with relay and electrical protection commanded by logic signal!
Main components on the Pswcls
Pswcls bill of materials (BOM)
13 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 4N35 | DIP-6_W7.62mm | U1 |
| 1 | BC549 | TO-92_Inline_Wide | Q1 |
| 1 | CONN | PinHeader_1x03_P2.54mm_Horizontal | J1 |
| 1 | RELAY_TERMINAL | PhoenixContact_MC_1,5_3-G-5.08_1x03_P5.08mm_Horizontal | J3 |
| 1 | SRA-12VDC-CL-REMIX | SRA12VDCCL | K1 |
| 1 | LED | LED_D5.0mm_FlatTop | D1 |
| 1 | LED | LED_D5.0mm_IRGrey | D2 |
| 1 | 1N47xxA | D_DO-41_SOD81_P10.16mm_Horizontal | D3 |
| 1 | LED | LED_D5.0mm_Clear | D4 |
| 3 | 330R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R3, R4 |
| 1 | 12K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
