About the USG PCB
USG is an open source STM32 PCB design by robertfisk, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 71 × 25 mm, with 60 components from 19 distinct parts.
Its main chip is the STM32F401xB, from the STM32 family. Other key parts include the NUP4114 and AZ1117CH-3.3. By type, the board carries 28 capacitors, 16 resistors, 5 ICs, 3 connectors, 2 crystals and 1 diode.

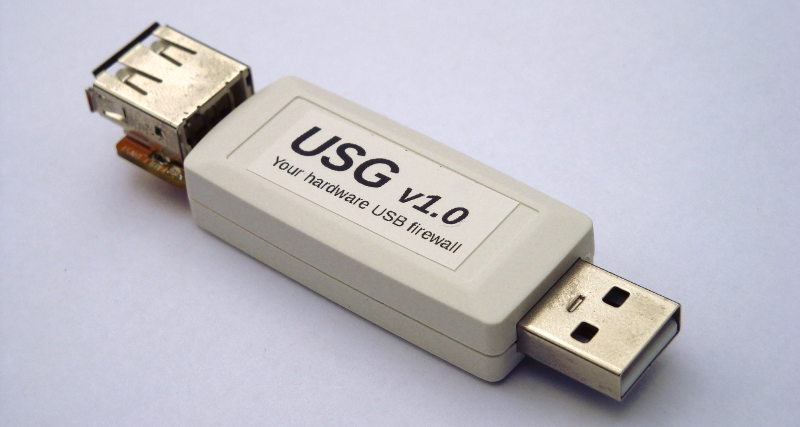

From the project
The USG is Good, not Bad

Main components on the USG
USG bill of materials (BOM)
60 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | NUP4114 | SC-70-6 | U1, U5 |
| 2 | STM32F401xB | LQFP-64_10x10mm_Pitch0.5mm | U2, U4 |
| 1 | AZ1117CH-3.3 | SOT-223 | U3 |
| 2 | 8MHz | Crystal_HC49-SD_SMD | Y1, Y2 |
| 1 | USB_A_PLUG | USB_A_PLUG | P1 |
| 1 | USB_A_SOCKET | USB_A_SOCKET | P2 |
| 1 | USB_OTG | USB_Micro-B | P3 |
| 4 | Jumper_NC_Small | J_NC_0402 | ID_BOARD0, ID_BOARD1, ID_BOARD2, ID_DNST1 |
| 1 | Jumper_NO_Small | J_NO_0402 | ID_UPST1 |
| 1 | DOUBLE_DIODE_CCOM | SOT-23 | D1 |
| 18 | 0.1u | C_0603 | C1, C4, C6, C7, C9, C10, C11, C12 +10 |
| 4 | 18p | C_0603 | C2, C3, C17, C18 |
| 4 | 4.7u | C_0603 | C5, C8, C19, C20 |
| 1 | 10u | C_0805 | C14 |
| 1 | 22u | C_0805 | C15 |
| 4 | 220 | R_0603 | R1, R5, R12, R16 |
| 4 | 1k | R_0603 | R2, R3, R9, R10 |
| 4 | 10k | R_0603 | R4, R6, R11, R13 |
| 4 | 22 | R_0603 | R7, R8, R14, R15 |
USG design files
The KiCad project lives in the robertfisk/USG repository on GitHub; these links point at the commit this page was built from.
- LayoutHardware/USG.kicad_pcb
USG: common questions
What microcontroller does the USG use?
The USG is built around the STM32F401xB, from the STM32 family.
How big is the USG PCB?
The USG measures 71 × 25 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the USG?
60 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the USG design files?
From the robertfisk/USG repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the USG design in my own project?
Yes, under the terms of its BSD-3-Clause license, which robertfisk chose for the repository.
Can I test firmware for the USG without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
