About the CANBurner PCB

CANBurner is an open source PCB design by rootiest, published on GitHub. It is a 2-layer board measuring 33.8 × 30 mm, with 1 components from 1 distinct parts.

It belongs with the wearables designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

CANBurner is an adaptation of hartk's 2-piece StealthBurner PCB.

CANBurner is an adaptation of hartk's 2-piece StealthBurner PCB.

CANBurner adapts this concept for use on printers with a CANbus toolhead like the BigTreeTech EBB or the Mellow FLY-SHT.

Version 3 introduces a new single-connector interface to the toolboard. There is also a solder-bridge for bypassing the onboard LED and a header for directly-attaching i2c devices.

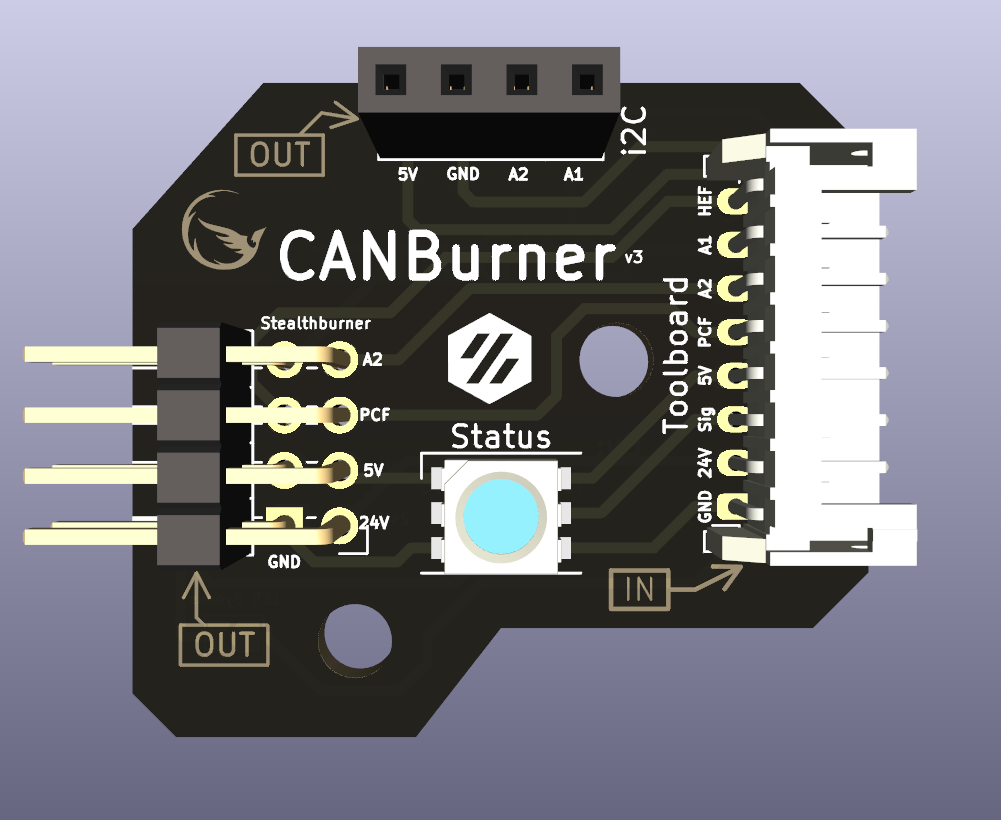

CANBurner, from the project README
From the project README

CANBurner bill of materials (BOM)

1 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
i2C Addon
i2C

CANBurner design files

The KiCad project lives in the rootiest/CANburner repository on GitHub; these links point at the commit this page was built from.

CANBurner: common questions

How big is the CANBurner PCB?

The CANBurner measures 33.8 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CANBurner?

1 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the CANBurner design files?

From the rootiest/CANburner repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the CANBurner design in my own project?

The repository has no license, so all rights stay with rootiest. Use it as a reference, and ask the author before reusing the design.

Earlier revisions in the repo: CANBurner
