Ultrasound
About the Ultrasound PCB
Ultrasound is an open source PCB design by rosalyntg, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 165 × 113 mm, with 343 components from 46 distinct parts.
Other key parts include the AS78L05RTR-E1, MCP1755ST-1802E/DB, HV7321K6-G, AD8332ARUZ and ADC34J22IRGZ25. By type, the board carries 221 capacitors, 84 resistors, 16 ICs, 9 diodes, 6 connectors and 4 transistors.
From the project
Hobby Ultrasound Machine

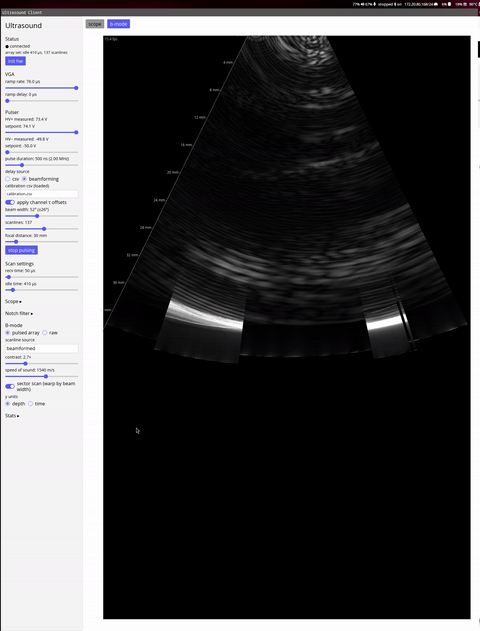

This repository contains the PCB design files, FPGA firmware files, and host software for a hobby 8 channel ultrasound system. It can do phased array operation. Here's an example of the pulse in my forearm:
Picture of the functioning ultrasound system:
The parts of the ultrasound consist of: - The probe, which is a Acuvision 4V1c probe bought off ebay - As far as I can tell, it has 112 elements. I think a bunch of them are broken for this unit, so I've atttempted to work around as best as possible - The power board - This provides a variable voltage positive and negative rails for the…
Main components on the Ultrasound
Ultrasound bill of materials (BOM)
343 components, 46 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AS78L05RTR-E1 | SOT89_B8D_DIO-M | U1 |
| 1 | MCP1755ST-1802E/DB MCP1755ST | SOT-223-3_TabPin2 | U2 |
| 2 | HV7321K6-G | QFN50P900X900X100-65N-D | U5, U9 |
| 4 | AD8332ARUZ | RU_28_ADI-M | U6, U12, U13, U14 |
| 2 | ADC34J22IRGZ25 | RGZ0048D_TEX | U7, U8 |
| 1 | MAX6018BEUR12+T | 21-0051H_MXM-M | U10 |
| 1 | SI5338Q-B-GM | SI5338QBGM | U11 |
| 1 | LM1085IT-5.0/NOPB LM1085IT-5.0 Texas Instruments | TO-220-3_Vertical | U15 |
| 1 | MIC39300-1.8WT | TO-220-3_Vertical | U16 |
| 1 | MCP4017T-103E/LTY MCP4017-103E/LTY | SOT-363_SC-70-6 | U17 |
| 1 | TS507CLT | SOT95P280X145-5N | U18 |
| 4 | MMBF170-7-F BS170F | SOT-23_Handsoldering | Q1, Q2, Q3, Q4 |
| 1 | SIT9121AC-2D2-33E156.250000 | Oscillator_SMD_SiTime_PQFD-6L_7x5mm | Y1 |
| 1 | FA-238 25.0000MB-C3 | XTAL_FA-238_25.0000MB50X-C0 | Y2 |
| 1 | B2B-XH-A | JST_XH_B2B-XH-AM_1x02_P2.50mm_Vertical | J1 |
| 1 | SBH11-PBPC-D05-ST-BK AVR-JTAG-10 | IDC-Header_2x05_P2.54mm_Vertical | J3 |
| 1 | UE76A202000T | Connector_SFP_and_Cage | J4 |
| 1 | 5051101692 | CON_5051101692_MOL | J5 |
| 1 | TFM-107-02-L-D Conn_02x07_Counter_Clockwise | SAMTEC_TFM-107-02-L-D | J6 |
| 1 | PRPC012DBAN-M71RC Conn_02x12_Odd_Even | PinHeader_2x12_P2.54mm_Horizontal | J7 |
Show 26 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PTS647SK38SMTR2 LFS SW_SPST | SW_SPST_PTS647_Sx38 | SW1 |
| 2 | BAT54SDW_R1_00001 BAT54SDW | SOT-363_SC-70-6 | D1, D2 |
| 4 | 1N914BWT 1N914WT | D_SOD-523 | D3, D4, D5, D6 |
| 3 | LTST-C171KRKT LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D10, D11, D12 |
| 6 | GRM21BR61E106KA73K 10u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C8, C124, C125, C231 |
| 1 | GRM31C5C1E334JE01L 330n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 126 | GCM21BR71E104KA37L 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4, C6, C14, C27, C28, C29, C48, C49 +118 |
| 1 | 860010372006 100u | CP_Radial_D5.0mm_P2.00mm | C11 |
| 2 | GRM21BR71E334KA01L 22u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C12, C13 |
| 10 | GCM155R71H104KE02J 100n | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C15, C16, C17, C18, C19, C20, C21, C22 +2 |
| 6 | GRM21BD72A225KE01L 2.2u 100V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C31, C32, C33, C107, C108, C109 |
| 18 | GRM21BR71E225KE11K 2.2u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C34, C35, C37, C38, C39, C40, C41, C44 +10 |
| 8 | GRJ21BC72A105KE11K 1u 100V | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C42, C43, C46, C47, C118, C119, C122, C123 |
| 8 | GRM2165C2A182JA01D 18n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C51, C63, C158, C170, C179, C191, C207, C219 |
| 24 | GRM2165C2A102JA01D 1n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C58, C61, C64, C165, C168, C171, C186, C189 +16 |
| 1 | GRM2165C1H302JA01D 3n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C137 |
| 5 | GRM31CR61A107MEA8L 100u | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C197, C198, C199, C200, C202 |
| 2 | ECA-2DHG100 10u 100V | CP_Radial_D10.0mm_P5.00mm | C201, C203 |
| 3 | TPSB476K006R0500 47u Tantalum | CP_EIA-3528-15_AVX-H_HandSolder | C246, C247, C249 |
| 16 | RC0805FR-0749R9L 0 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5, R6, R22, R23, R38, R39, R45, R46 +8 |
| 16 | RC0805FR-0749R9L 150 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7, R8, R24, R25, R40, R41, R47, R48 +8 |
| 16 | RC0805FR-07187RL 68 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R11, R61, R66, R71, R82, R83, R84, R85 +8 |
| 8 | RC0805FR-07280RL 280 1% | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R14, R15, R64, R65, R69, R70, R74, R75 |
| 4 | RC0805JR-07100RL 100 1% | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R16, R17, R19, R20 |
| 8 | RC0805FR-07374RL 374 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R94, R95, R96, R97, R98, R99, R100, R101 |
| 16 | RC0805FR-0724R9L 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R102, R103, R104, R105, R106, R107, R108, R109 +8 |
