Switch plate with trackball

ryoo14·rhyn47·low-profile-with-trackball/plate/switch_plate_with_trackball.kicad_pcb

Switch plate with trackball PCB layout, top view — open source board by ryoo14
Simulate this board

About the Switch plate with trackball PCB

Switch plate with trackball is an open source PCB design by ryoo14, published on GitHub. It is a 2-layer board measuring 237.5 × 76.5 mm, with 47 components from 1 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

mechanical keyboard I designed.

This is low-profile model of rhyn47 with trackball.

The case is the same as the low-profile version.

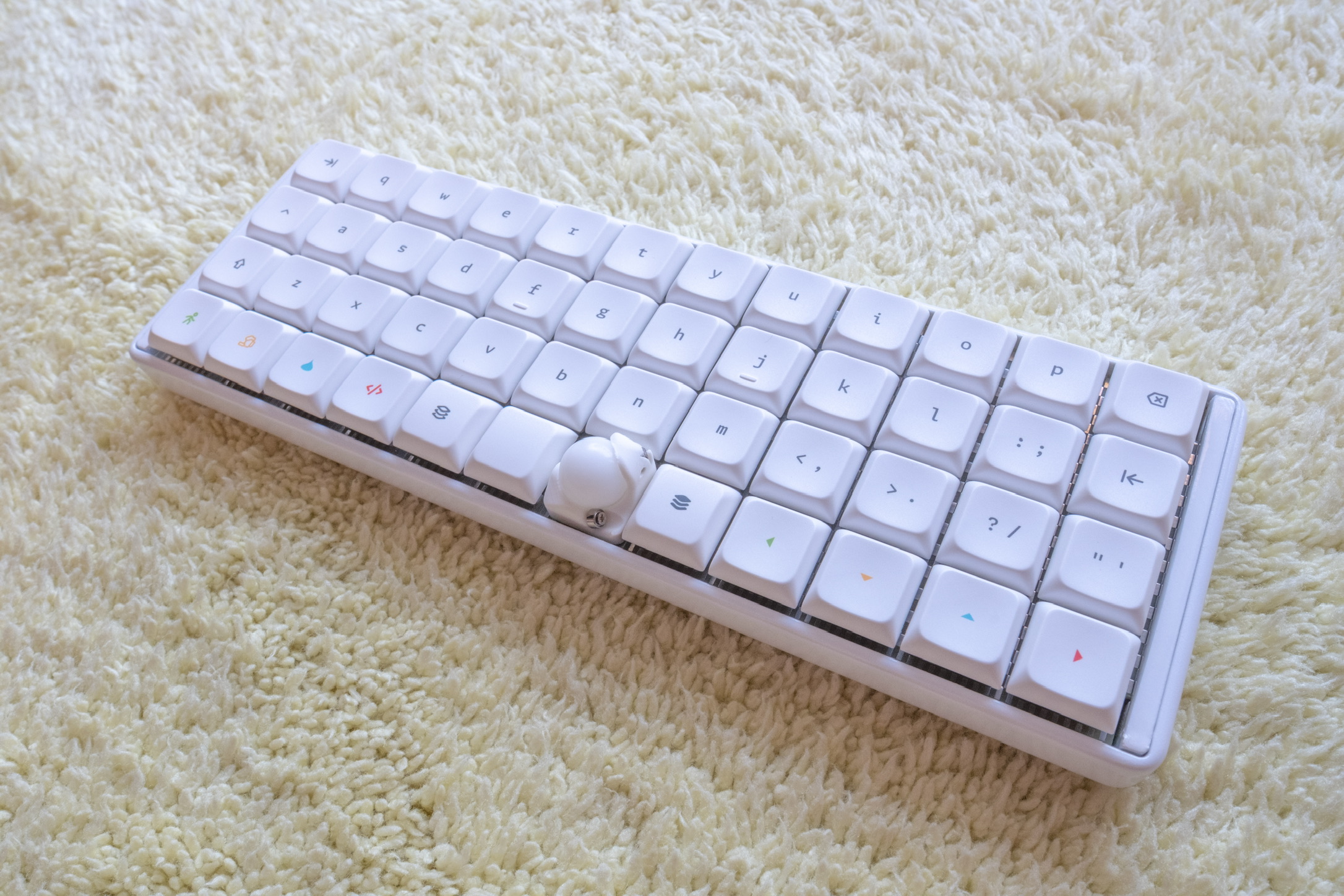

Switch plate with trackball, from the project README
From the project README

Switch plate with trackball bill of materials (BOM)

47 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
47
SW_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +39

Switch plate with trackball design files

The KiCad project lives in the ryoo14/rhyn47 repository on GitHub; these links point at the commit this page was built from.

Switch plate with trackball: common questions

How big is the Switch plate with trackball PCB?

The Switch plate with trackball measures 237.5 × 76.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Switch plate with trackball?

47 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Switch plate with trackball design files?

From the ryoo14/rhyn47 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Switch plate with trackball design in my own project?

The repository has no license, so all rights stay with ryoo14. Use it as a reference, and ask the author before reusing the design.
