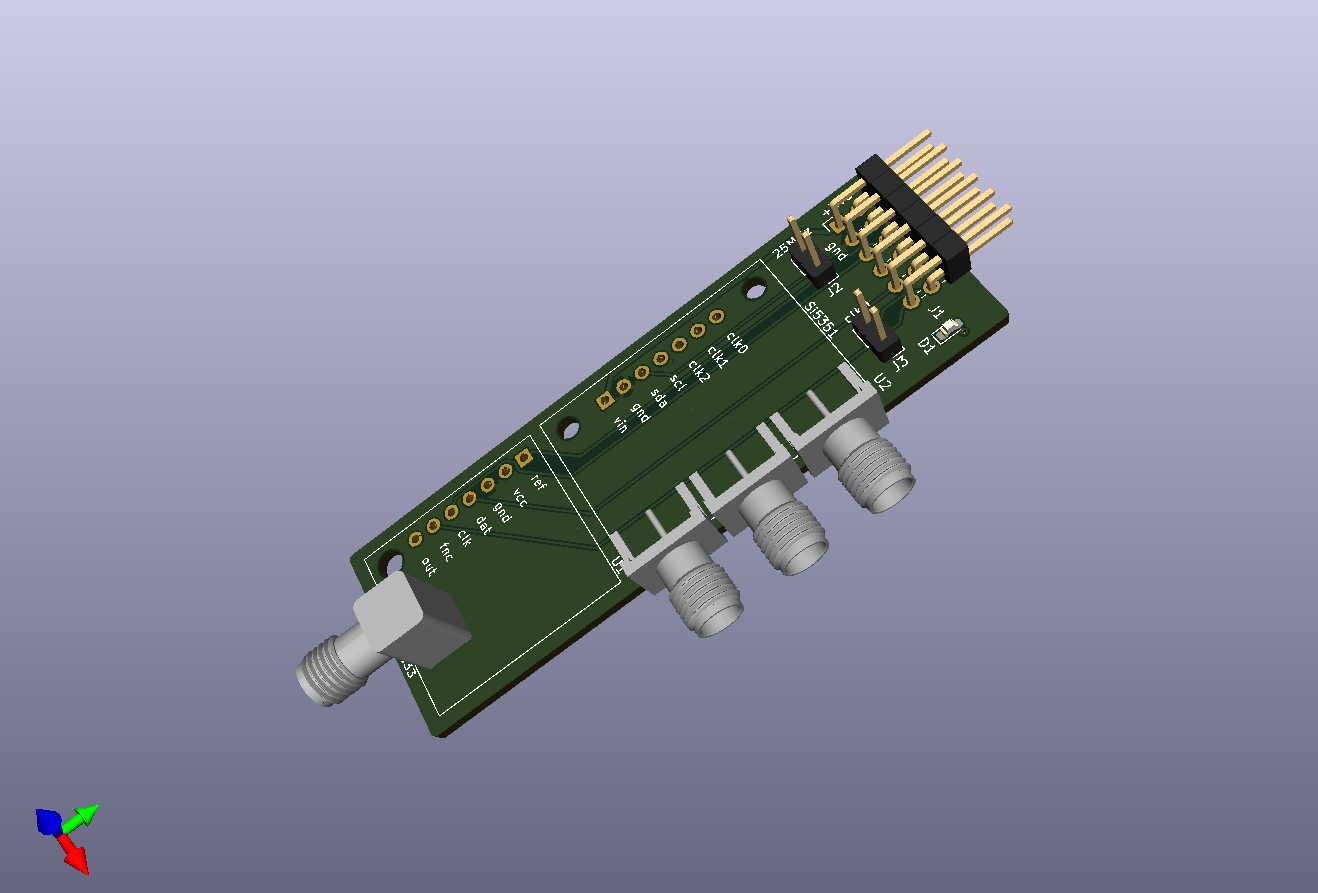

Kicad clocks pmod
About the Kicad clocks pmod PCB
Kicad clocks pmod is an open source PCB design by s59mz, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 24.1 × 72.4 mm, with 13 components from 9 distinct parts.
Other key parts include the cjmcu-9833 and Si5351. By type, the board carries 5 resistors, 3 connectors, 2 ICs, 2 capacitors and 1 diode.
From the project
Pmod module for Si5351 and CJMCU-9833 Clock Synchronizer modules
Main components on the Kicad clocks pmod
Kicad clocks pmod bill of materials (BOM)
13 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | cjmcu-9833 | cjmcu-9833 | U1 |
| 1 | Si5351 | Si5351 | U2 |
| 1 | pmod | PinHeader_2x06_P2.54mm_Horizontal | J1 |
| 1 | 25Mhz | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | clk | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 1 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 2 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2 |
| 1 | 330E | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 4 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3, R4, R5 |
Kicad clocks pmod design files
The KiCad project lives in the s59mz/kicad-clocks-pmod repository on GitHub; these links point at the commit this page was built from.
- Layoutclocks_pmod.kicad_pcb
- Schematicclocks_pmod.kicad_sch
Kicad clocks pmod: common questions
How big is the Kicad clocks pmod PCB?
The Kicad clocks pmod measures 24.1 × 72.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kicad clocks pmod?
13 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Kicad clocks pmod design files?
From the s59mz/kicad-clocks-pmod repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Kicad clocks pmod design in my own project?
Yes, under the terms of its GPL-3.0 license, which s59mz chose for the repository.
