PCB Ruler
About the PCB Ruler
PCB Ruler is an open source PCB design by samanbeer, published on GitHub. It is a 2-layer board measuring 304.9 × 35 mm, with 18 components from 16 distinct parts.
Other key parts include the 2EDL23N06PJXUMA1, iC-HTG and 74LVC1G11. By type, the board carries 11 resistors, 4 capacitors and 3 ICs.
From the project
Why: - Is is cool, the schooll is coming :O and i dont have a ruler :)
Why: - Is is cool, the schooll is coming :O and i dont have a ruler :)
Schematic is randomly connected so it looks good on PCB (not supposed to work :D):

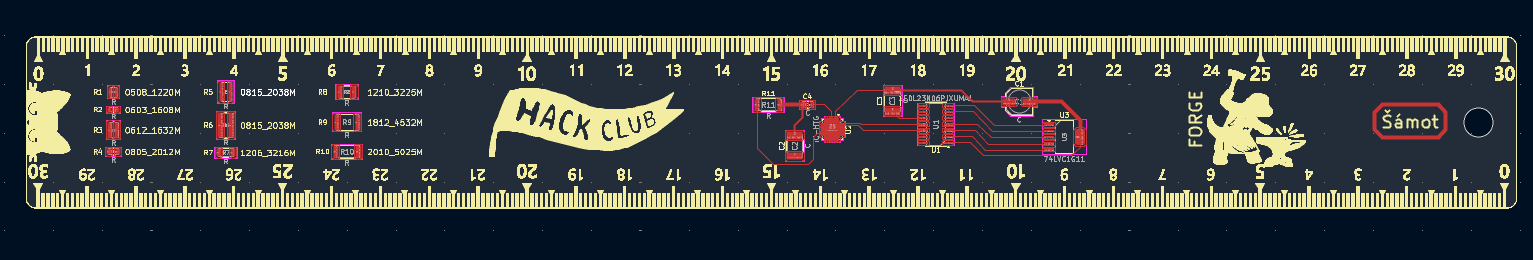

This is a Ruler made as PCB in KiCAD and InkScape(for .svg editing).
- Every design file is in /images folder. - And anyone can modify the PCB Ruler by opening This KiCad project in KiCAD v10+ - For direct manufacturing, the gerber files .zip is in /gerbers folder - Cost around 10 US Dollars :)
Main components on the PCB Ruler
PCB Ruler bill of materials (BOM)
18 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2EDL23N06PJXUMA1 | SOIC-14_3.9x8.7mm_P1.27mm | U1 |
| 1 | iC-HTG | HVQFN-24-1EP_4x4mm_P0.5mm_EP2.5x2.5mm | U2 |
| 1 | 74LVC1G11 | SOT-223-6 | U3 |
| 1 | C | C_Elec_5x5.4 | C1 |
| 2 | C | C_1812_4532Metric_Pad1.57x3.40mm_HandSolder | C2, C3 |
| 1 | C | C_0805_2012Metric | C4 |
| 1 | R | R_0508_1220Metric | R1 |
| 1 | R | R_0603_1608Metric | R2 |
| 1 | R | R_0612_1632Metric | R3 |
| 1 | R | R_0805_2012Metric | R4 |
| 1 | R | R_0815_2038Metric | R5 |
| 1 | R | R_1020_2550Metric | R6 |
| 1 | R | R_1206_3216Metric | R7 |
| 1 | R | R_1210_3225Metric | R8 |
| 1 | R | R_1812_4532Metric | R9 |
| 2 | R | R_2010_5025Metric | R10, R11 |
PCB Ruler design files
The KiCad project lives in the samanbeer/PCB_Ruler repository on GitHub; these links point at the commit this page was built from.
- Layoutruler_kicad.kicad_pcb
- Schematicruler_kicad.kicad_sch
PCB Ruler: common questions
How big is the PCB Ruler?
The PCB Ruler measures 304.9 × 35 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCB Ruler?
18 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the PCB Ruler design files?
From the samanbeer/PCB_Ruler repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PCB Ruler design in my own project?
The repository has no license, so all rights stay with samanbeer. Use it as a reference, and ask the author before reusing the design.
