MyIMX233
About the MyIMX233 PCB
MyIMX233 is an open source PCB design by samarjit, published on GitHub. It is a 2-layer board measuring 74.1 × 92 mm, with 101 components from 50 distinct parts.
Other key parts include the iMX233 and DDR_SDRAM_MT46_x16. By type, the board carries 42 capacitors, 27 resistors, 10 diodes, 8 connectors, 2 ICs and 2 jumpers.

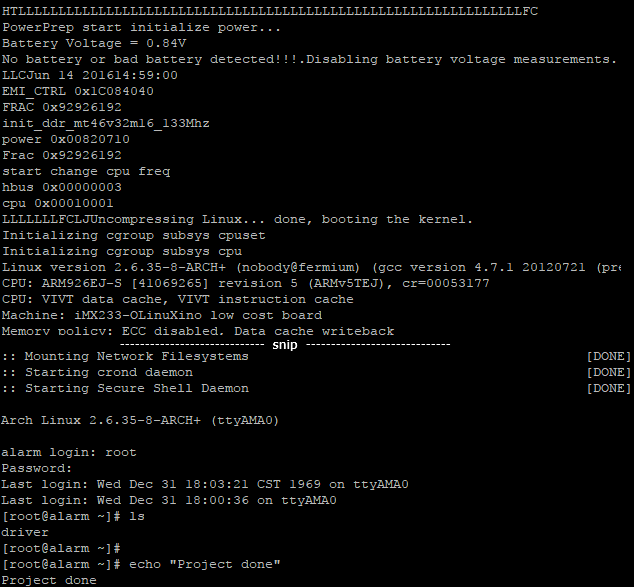

From the project
MyIMX233 will be a homemade Single board computer based on Freescale iMX233 and 64MB DDR2 RAM built with KiCad
I am starting to build a single board computer with freescale microprocessor iMX233 128 LQFP and 64MB DDR2 SDRAM in 66TSOP. This single board computer will be bare bones with lots of GPIO exposed. There is no special goal for this project. I am just curious to see if it works. In future I might add an LCD. The PCB is two layered only and can be manufactured cheap.
Main components on the MyIMX233
MyIMX233 bill of materials (BOM)
101 components, 50 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | iMX233 | LQFP-128_14x14mm_Pitch0.4mm | IC1 |
| 1 | DDR_SDRAM_MT46_x16 | TSOP66_JEDEC_DDR_SDRAM | IC2 |
| 1 | 24Mhz | Crystal_HC49-4H_Vertical | Y1 |
| 1 | USB_OTG | USB_Micro-B_MOLEX_105017-0001 | J1 |
| 1 | CONN_01X01 | 1pin | J2 |
| 1 | 4p2 | GOGO_TESTPAD2 | P1 |
| 1 | 1v2 | GOGO_TESTPAD2 | P2 |
| 1 | VDDA1v8 | GOGO_TESTPAD2 | P3 |
| 1 | 2v5 | GOGO_TESTPAD2 | P4 |
| 1 | 3v3 | GOGO_TESTPAD2 | P5 |
| 1 | 1v | GOGO_TESTPAD2 | P6 |
| 1 | Battery | JST_XH_B02B-XH-A_02x2.50mm_Straight | BT1 |
| 2 | CONN_01X04 | Pin_Header_Straight_1x04_Pitch2.54mm | DEBUG_UART1, I2C1 |
| 1 | CONN_01X05 | Pin_Header_Straight_1x05_Pitch2.54mm | GPIO1 |
| 1 | WithBatt | Pin_Header_Straight_1x02_Pitch2.54mm | JP1 |
| 1 | WithoutBatt | Pin_Header_Straight_1x02_Pitch2.54mm | JP2 |
| 1 | USB_boot | Pin_Header_Straight_1x02_Pitch2.54mm | JP_USB_boot1 |
| 1 | CONN_01X30 | Pin_Header_Straight_1x30_Pitch2.54mm | LCD1 |
| 1 | SWITCH_PUSHBUTTON | SW_PUSH_6mm | SW1 |
| 1 | SD_ebay-uSD-push/push_SMD | uSDcard | XS1 |
Show 30 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LED | LED_D4.0mm | D1 |
| 1 | D_Batt | D_SOD-323_HandSoldering | D2 |
| 1 | LED | LED_0603 | D3 |
| 3 | 5.1v | D_SOD-323_HandSoldering | D4, D5, D10 |
| 1 | 3.3v | D_SOD-123 | D6 |
| 2 | 5.1v | D_DO-35_SOD27_P7.62mm_Horizontal | D7, D9 |
| 1 | 3.3v | D_DO-35_SOD27_P7.62mm_Horizontal | D8 |
| 1 | 22uH | Bourns22uh6x6mm | L1 |
| 2 | 10p | C_0402 | C1, C2 |
| 21 | 100n | C_0402 | C3, C6, C8, C9, C10, C12, C14, C15 +13 |
| 4 | 22u | C_0805_HandSoldering | C4, C5, C11, C25 |
| 1 | 1u | C_0805_HandSoldering | C7 |
| 4 | 1u | C_0603_HandSoldering | C13, C36, C37, C41 |
| 2 | 1u | C_0402 | C26, C27 |
| 3 | 10n | C_0402 | C28, C34, C40 |
| 2 | 47u | C_0805_HandSoldering | C29, C30 |
| 1 | 4.7uf | C_0603_HandSoldering | C32 |
| 1 | 10uF | CP_Radial_D5.0mm_P2.50mm | C38 |
| 1 | 22uF | CP_Radial_D5.0mm_P2.50mm | C42 |
| 3 | 1k | R_0603_HandSoldering | R1, R5, R7 |
| 2 | 1K1% | R_0603 | R2, R3 |
| 4 | 100k | R_0603_HandSoldering | R4, R21, R22, R23 |
| 2 | 4.7k | R_0603_HandSoldering | R6, R8 |
| 6 | 47k | R_0603_HandSoldering | R9, R10, R11, R12, R13, R14 |
| 2 | 1K | R_0603 | R15, R16 |
| 2 | 47K | R_0603 | R17, R18 |
| 3 | 0.1ohm | R_0603_HandSoldering | R19, R25, R26 |
| 1 | 470k | R_0603_HandSoldering | R20 |
| 1 | 10k | R_0603_HandSoldering | R24 |
| 1 | 120R | R_0603 | R27 |
MyIMX233 design files
The KiCad project lives in the samarjit/MyIMX233 repository on GitHub; these links point at the commit this page was built from.
MyIMX233: common questions
How big is the MyIMX233 PCB?
The MyIMX233 measures 74.1 × 92 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MyIMX233?
101 components, from 50 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MyIMX233 design files?
From the samarjit/MyIMX233 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the MyIMX233 design in my own project?
The repository has no license, so all rights stay with samarjit. Use it as a reference, and ask the author before reusing the design.
