MEZ68008

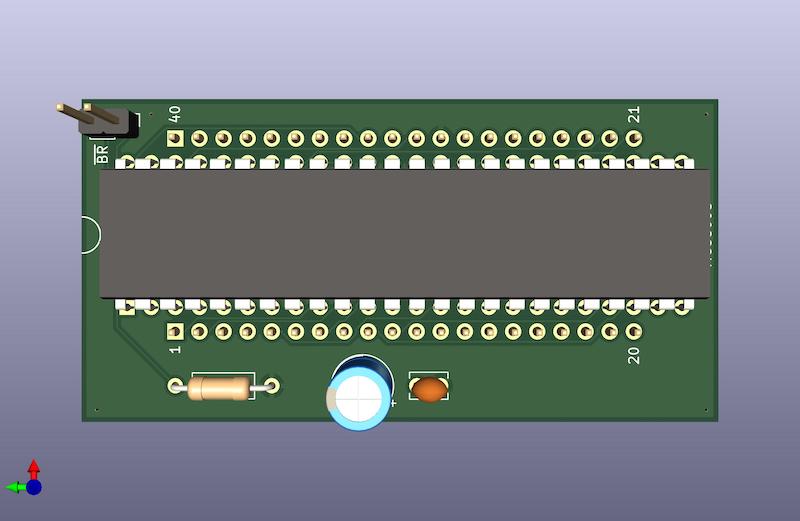

About the MEZ68008 PCB
MEZ68008 is an open source PCB design by satoshiokue, published on GitHub under the MIT license. It is a 2-layer board measuring 34 × 67 mm, with 7 components from 6 distinct parts.
Other key parts include the 68008D. By type, the board carries 3 connectors, 2 capacitors, 1 IC and 1 resistor.
From the project
68008 Mezzanine board for EMUZ80
https://github.com/satoshiokue/EMUZ80-68008
MEZ68008専用プリント基板 - オレンジピコショップ https://store.shopping.yahoo.co.jp/orangepicoshop/pico-a-061.html
Main components on the MEZ68008
MEZ68008 bill of materials (BOM)
7 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 68008D | DIP-48_W15.24mm | U1 |
| 2 | Conn_01x20 | PinHeader_1x20_P2.54mm_Vertical | J1, J2 |
| 1 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 1 | 0.1uF | C_Disc_D3.8mm_W2.6mm_P2.50mm | C1 |
| 1 | 47uF | CP_Radial_D6.3mm_P2.50mm | C2 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
MEZ68008 design files
The KiCad project lives in the satoshiokue/MEZ68008 repository on GitHub; these links point at the commit this page was built from.
- LayoutMEZ68008.kicad_pcb
- SchematicMEZ68008.kicad_sch
MEZ68008: common questions
How big is the MEZ68008 PCB?
The MEZ68008 measures 34 × 67 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MEZ68008?
7 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the MEZ68008 design files?
From the satoshiokue/MEZ68008 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MEZ68008 design in my own project?
Yes, under the terms of its MIT license, which satoshiokue chose for the repository.
