LED driver
About the LED driver PCB
LED driver is an open source PCB design by SBC-Collaboration, published on GitHub. It is a 2-layer board measuring 82.6 × 44.5 mm, with 11 components from 9 distinct parts.
Other key parts include the OPA462 and BUK7S2R5-40H. By type, the board carries 5 resistors, 2 ICs, 2 connectors and 2 capacitors.
From the project

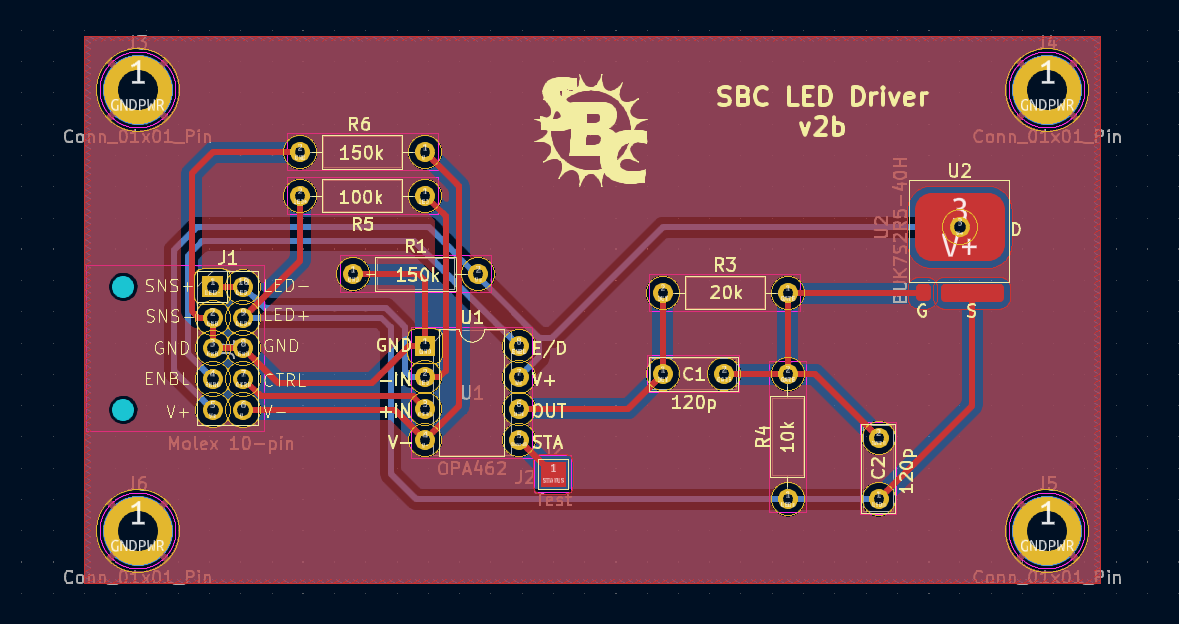

KiCAD model of SBC LED driver PCB, and accompanying wiring schematics
This repository contains KiCAD drawings for the LED driver PCB design, LED driver box connections, and DIO box connections. It also has the SolidWorks drawings for the panel cutouts in those boxes for CNC machining.
Main components on the LED driver
LED driver bill of materials (BOM)
11 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | OPA462 | SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.62x3.51mm_ThermalVias | U1 |
| 1 | BUK7S2R5-40H | BUK7S2R5-40H_footprint | U2 |
| 1 | Conn_01x05_Male | PinHeader_1x05_P2.54mm_Vertical | J1 |
| 1 | Conn_01x04_Male | PinHeader_1x04_P2.54mm_Vertical | J2 |
| 2 | 120p | CP_Radial_D5.0mm_P2.50mm | C1, C2 |
| 2 | 150k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R6 |
| 1 | 20k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
| 1 | 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R5 |
LED driver design files
The KiCad project lives in the SBC-Collaboration/SBC-ElectronicsBoxes repository on GitHub; these links point at the commit this page was built from.
- Layoutv1a/LED Driver.kicad_pcb
- Schematicv1a/LED Driver.kicad_sch
LED driver: common questions
How big is the LED driver PCB?
The LED driver measures 82.6 × 44.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LED driver?
11 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the LED driver design files?
From the SBC-Collaboration/SBC-ElectronicsBoxes repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the LED driver design in my own project?
The repository has no license, so all rights stay with SBC-Collaboration. Use it as a reference, and ask the author before reusing the design.
