Displayport switch
About the Displayport switch PCB
Displayport switch is an open source PCB design by Scottapotamas, published on GitHub under the MIT license. It is a 4-layer board measuring 60 × 45 mm, with 43 components from 11 distinct parts.
Other key parts include the HD3SS215IRTQT and AP2112K-3.3. By type, the board carries 19 capacitors, 15 resistors, 4 connectors, 3 fuses and 2 ICs.
From the project

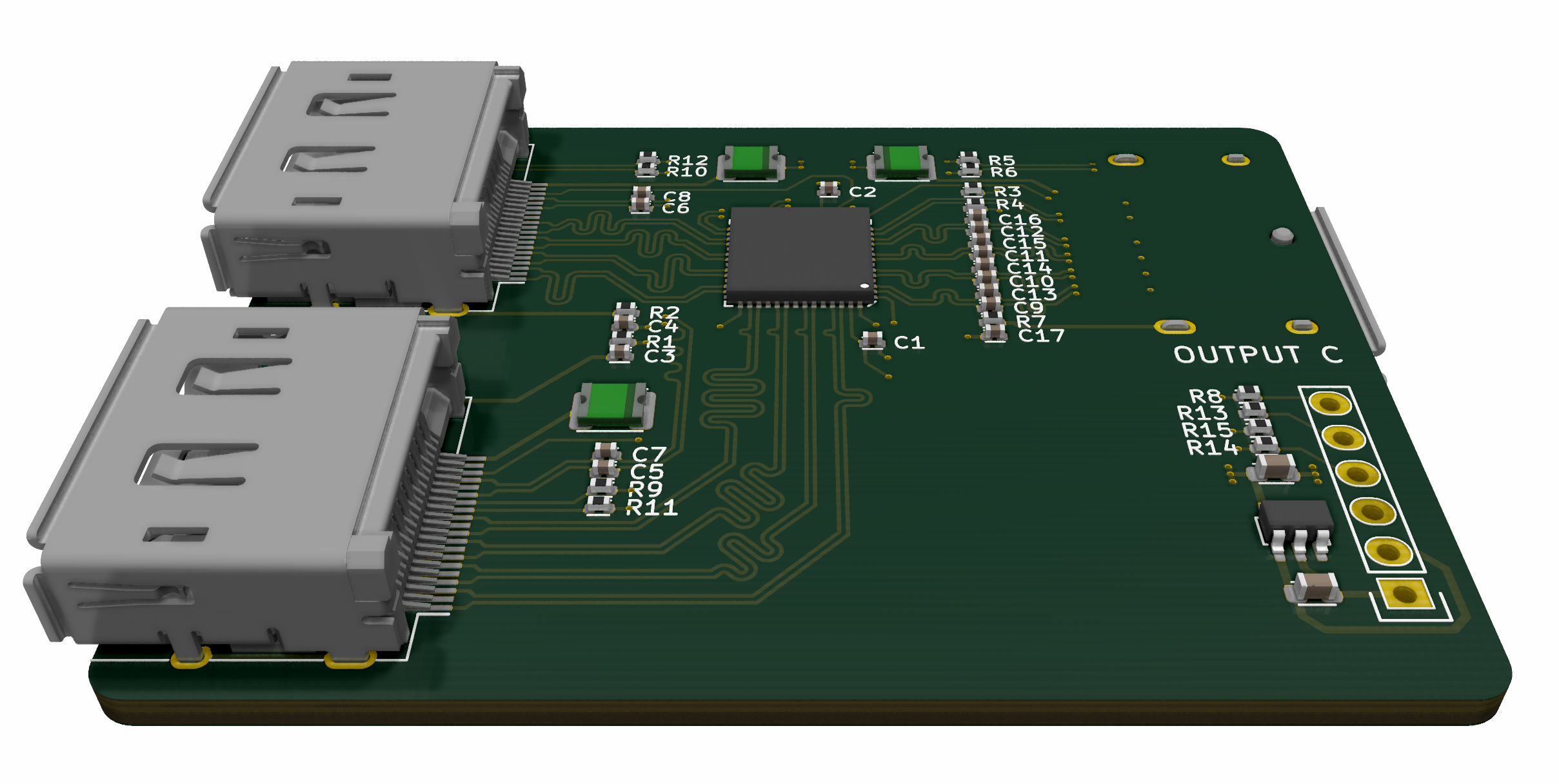

Displayport 1.2 two-way switch
Simple board to provide DisplayPort >1.2 source selection control.
While not explicitly designed for a particular direction, the intent is usage with 2 video sources (different computers) and a single sink (one monitor).
- Switching is provided externally through the header. - As this board is a prototype, there's no guarantee of stability or reliability.
- The planned enclosure method is to wrap the board with heatshrink and let it 'hang' in the display cable bundle.
Main components on the Displayport switch
Displayport switch bill of materials (BOM)
43 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | HD3SS215IRTQT | QFN50P800x800x090-56T560x560N | U1 |
| 1 | AP2112K-3.3 | SOT95P280X145-5L30N | U2 |
| 3 | MOLEX_47272-0001 | MOLEX_47272-0001 | P1, P2, P3 |
| 1 | CONN_01X06 | 61300611121 | P5 |
| 3 | 0.5A_1210L_PTC | FUSC3225X85L50N | F1, F2, F3 |
| 14 | 100n_X7R_1005M | CAPC1005X60N | C1, C2, C5, C6, C7, C8, C9, C10 +6 |
| 3 | 1u_X5R_1005M | CAPC1005X60N | C3, C4, C17 |
| 2 | 4u7_X5R_1608M | CAPC1608X90N | C18, C19 |
| 9 | 1M_1005M | RESC1005X40N | R1, R2, R5, R6, R7, R9, R10, R11 +1 |
| 4 | 100K_1005M | RESC1005X40N | R3, R4, R14, R15 |
| 2 | 10K0_1005M | RESC1005X40N | R8, R13 |
Displayport switch design files
The KiCad project lives in the Scottapotamas/displayport-switch repository on GitHub; these links point at the commit this page was built from.
Displayport switch: common questions
How big is the Displayport switch PCB?
The Displayport switch measures 60 × 45 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Displayport switch?
43 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the Displayport switch design files?
From the Scottapotamas/displayport-switch repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Displayport switch design in my own project?
Yes, under the terms of its MIT license, which Scottapotamas chose for the repository.
