G935F-PWR
About the G935F-PWR PCB
G935F-PWR is an open source PCB design by sensorable, published on GitHub. It is a 2-layer board measuring 17.4 × 21.5 mm, with 5 components from 3 distinct parts.
From the project

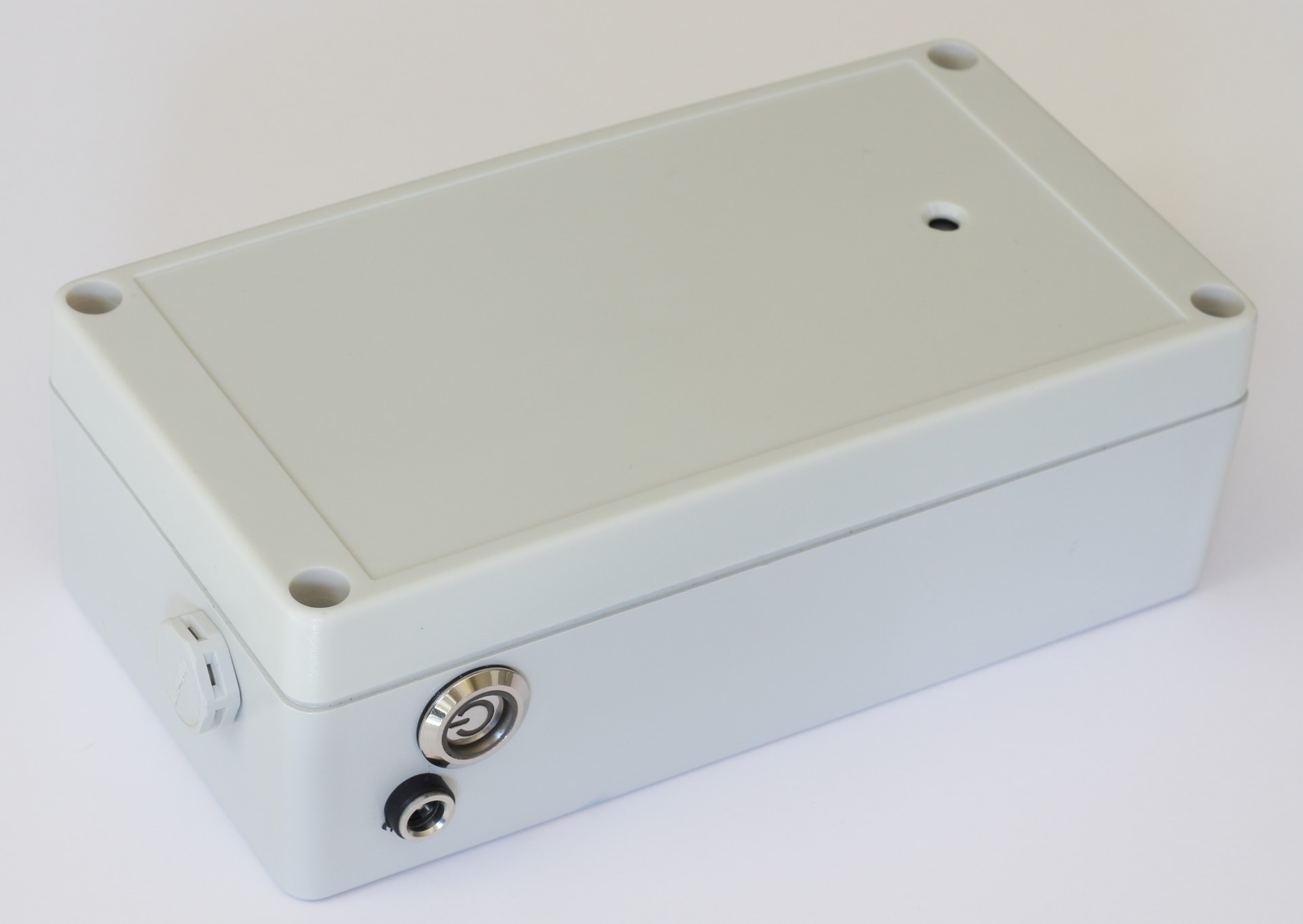

Electronics for Sensorable Open Source Camera
Sensorable camera is a low power edge computer for smart applications with limited power and bandwidth. It is based on Samsung G935F smartphone board with auxiliary chassis and electronics.
Applications: outdoor security remote site monitoring beach / nature cams traffic monitoring vehicle counting ALPR / ANPR * speed control and monitoring
The camera can be assembled, programmed, tested and deployed by a sufficiently skilled technician.
G935F-PWR bill of materials (BOM)
5 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 8PIN_2X4_INLINE 8Pin_2x4_inline | 8pin_molex_s7BatteryConn_5050040810 | P1 |
| 2 | PAD | NPTH_1.5mm | P2, P3 |
| 2 | PAD | PAD_2.1mm_circle | P4, P5 |
G935F-PWR design files
The KiCad project lives in the sensorable/g935-electronics repository on GitHub; these links point at the commit this page was built from.
G935F-PWR: common questions
How big is the G935F-PWR PCB?
The G935F-PWR measures 17.4 × 21.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the G935F-PWR?
5 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the G935F-PWR design files?
From the sensorable/g935-electronics repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the G935F-PWR design in my own project?
The repository has no license, so all rights stay with sensorable. Use it as a reference, and ask the author before reusing the design.
