About the Tanuki PCB
Tanuki is an open source PCB design by SethSenpai, published on GitHub under the MIT license. It is a 2-layer board measuring 224 × 72 mm, with 94 components from 10 distinct parts.
By type, the board carries 42 relays, 42 diodes, 5 LEDs, 3 connectors, 1 switch and 1 resistor.
It belongs with the keyboards designs in this gallery.
From the project

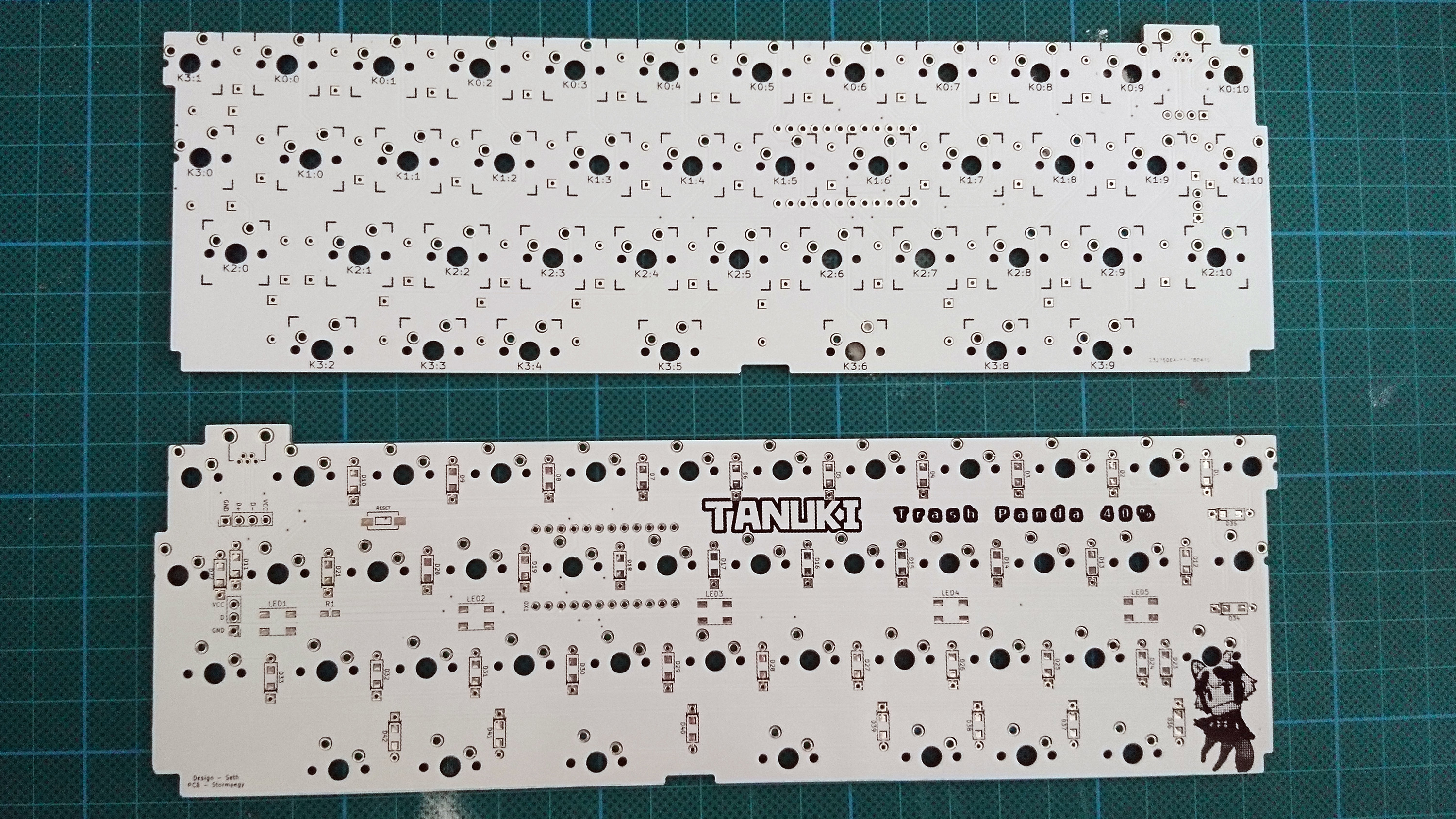

An open source 40% keyboard
Special thanks to StormPegy for making the pcb.
Tanuki bill of materials (BOM)
94 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_mini_micro_B | 54819-0519fix2 | J1 |
| 1 | CONN_04 | Pin_Header_Straight_1x04_Pitch2.54mm | J2 |
| 1 | Conn_01x03 | Pin_Header_Straight_1x03_Pitch2.54mm | J3 |
| 36 | KEYSW | MX_PCB_100H | K0:0, K0:1, K0:2, K0:3, K0:4, K0:5, K0:6, K0:7 +28 |
| 5 | KEYSW | MX_PCB_125H | K0:10, K2:10, K3:0, K3:2, K3:9 |
| 1 | KEYSW | MX_PCB_150H | K2:0 |
| 1 | RESET | TACTILE_SWITCH_SMD_6.0X3.5MM | SW1 |
| 5 | WS2812B | LED_WS2812B-PLCC4 | LED1, LED2, LED3, LED4, LED5 |
| 42 | D | D_SOD123_axial | D1, D2, D3, D4, D5, D6, D7, D8 +34 |
| 1 | 500o | R_0603_HandSoldering | R1 |
Tanuki design files
The KiCad project lives in the SethSenpai/Tanuki repository on GitHub; these links point at the commit this page was built from.
Tanuki: common questions
How big is the Tanuki PCB?
The Tanuki measures 224 × 72 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Tanuki?
94 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Tanuki design files?
From the SethSenpai/Tanuki repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Tanuki design in my own project?
Yes, under the terms of its MIT license, which SethSenpai chose for the repository.
