AC to DC converter
About the AC to DC converter PCB
AC to DC converter is an open source PCB design by shruti-dorge18, published on GitHub. It is a 2-layer board measuring 39 × 32 mm, with 10 components from 6 distinct parts.
By type, the board carries 5 diodes, 2 connectors, 2 resistors and 1 capacitor.
From the project
KiCad-based PCB design projects covering schematic, PCB layout, footprint integration, and 3D view. PCB designs are also uploaded on Boardrepo (Refer to the link provided)
A PCB design for an AC to DC converter, created using KiCad.

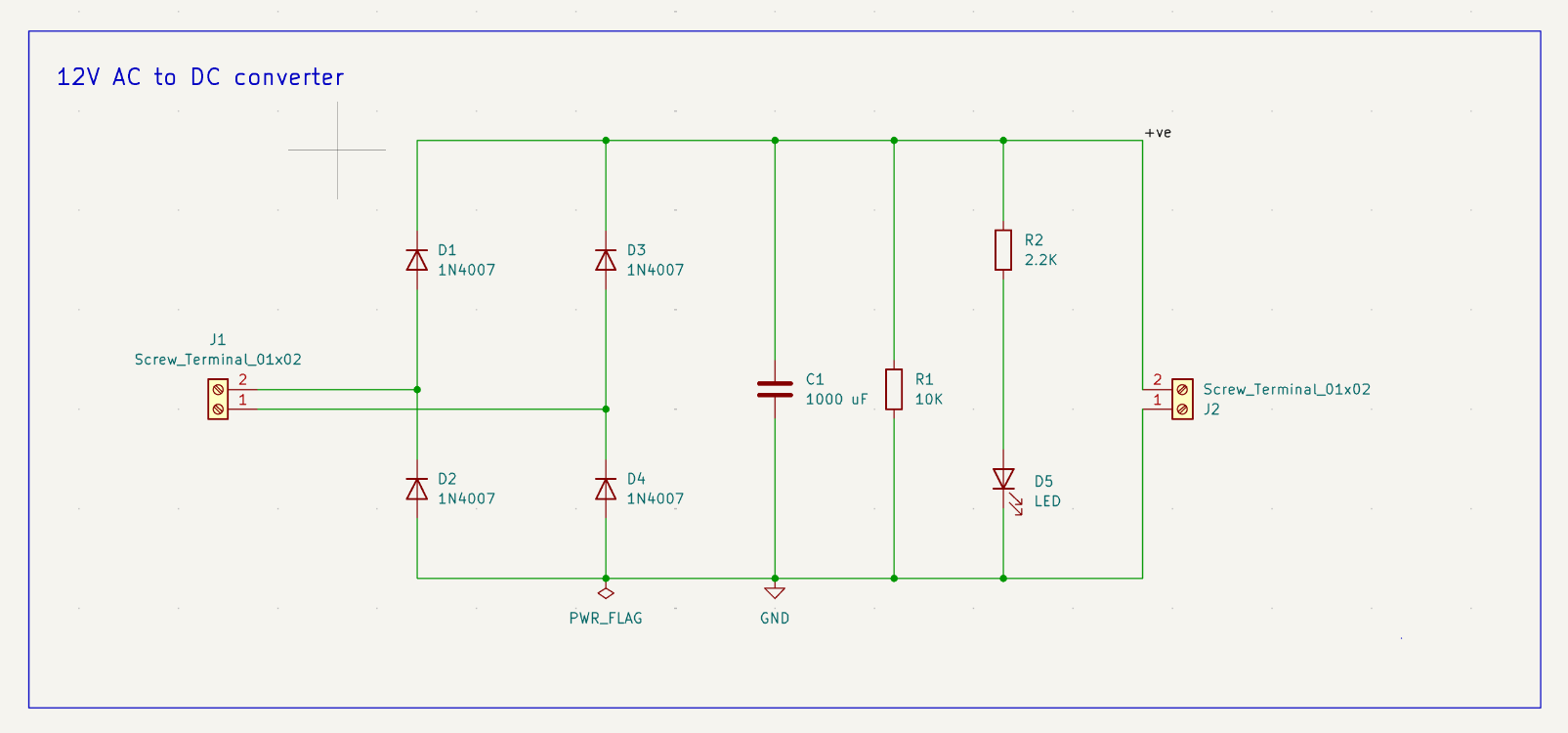

Designed an AC–DC conversion circuit to convert AC input into regulated DC output ;
using a bridge rectifier (1N4007), filtering capacitor, current-limiting resistors, and LED power indication.
The project was developed to practice pcb designing
This project was created while following this YouTube tutorial for learning and reference:
AC to DC converter bill of materials (BOM)
10 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Screw_Terminal_01x02 | TerminalBlock_CUI_TB007-508-02_1x02_P5.08mm_Horizontal | J1, J2 |
| 4 | 1N4007 | D_DO-41_SOD81_P10.16mm_Horizontal | D1, D2, D3, D4 |
| 1 | LED | LED_D5.0mm | D5 |
| 1 | 1000 uF | C_Radial_D8.0mm_H11.5mm_P3.50mm | C1 |
| 1 | 10K | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
| 1 | 2.2K | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R2 |
AC to DC converter design files
The KiCad project lives in the shruti-dorge18/KiCad repository on GitHub; these links point at the commit this page was built from.
AC to DC converter: common questions
How big is the AC to DC converter PCB?
The AC to DC converter measures 39 × 32 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AC to DC converter?
10 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the AC to DC converter design files?
From the shruti-dorge18/KiCad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the AC to DC converter design in my own project?
The repository has no license, so all rights stay with shruti-dorge18. Use it as a reference, and ask the author before reusing the design.
