Servo motor tester

shruti-dorge18·KiCad·Servo motor tester/Servo motor tester.kicad_pcb

Servo motor tester PCB layout, top view — open source board by shruti-dorge18

About the Servo motor tester PCB

Servo motor tester is an open source PCB design by shruti-dorge18, published on GitHub. It is a 2-layer board measuring 27.5 × 35 mm, with 10 components from 10 distinct parts.

Other key parts include the NE555P. By type, the board carries 3 resistors, 2 connectors, 2 diodes, 1 IC and 1 capacitor.

It belongs with the robotics & motion designs in this gallery.

From the project

KiCad-based PCB design projects covering schematic, PCB layout, footprint integration, and 3D view. PCB designs are also uploaded on Boardrepo (Refer to the link provided)

A PCB design for a servo motor tester circuit, created using KiCad.

Designed a 555-timer-based PWM servo motor tester with an adjustable potentiometer for varying the PWM signal to sweep it through its range of motion.

The project was developed to practice PCB designing.

KiCad Snapmagic : for downloading footprint & 3D model of potentiometer

This project was created while following this YouTube tutorial by Ampnics, for learning and reference:

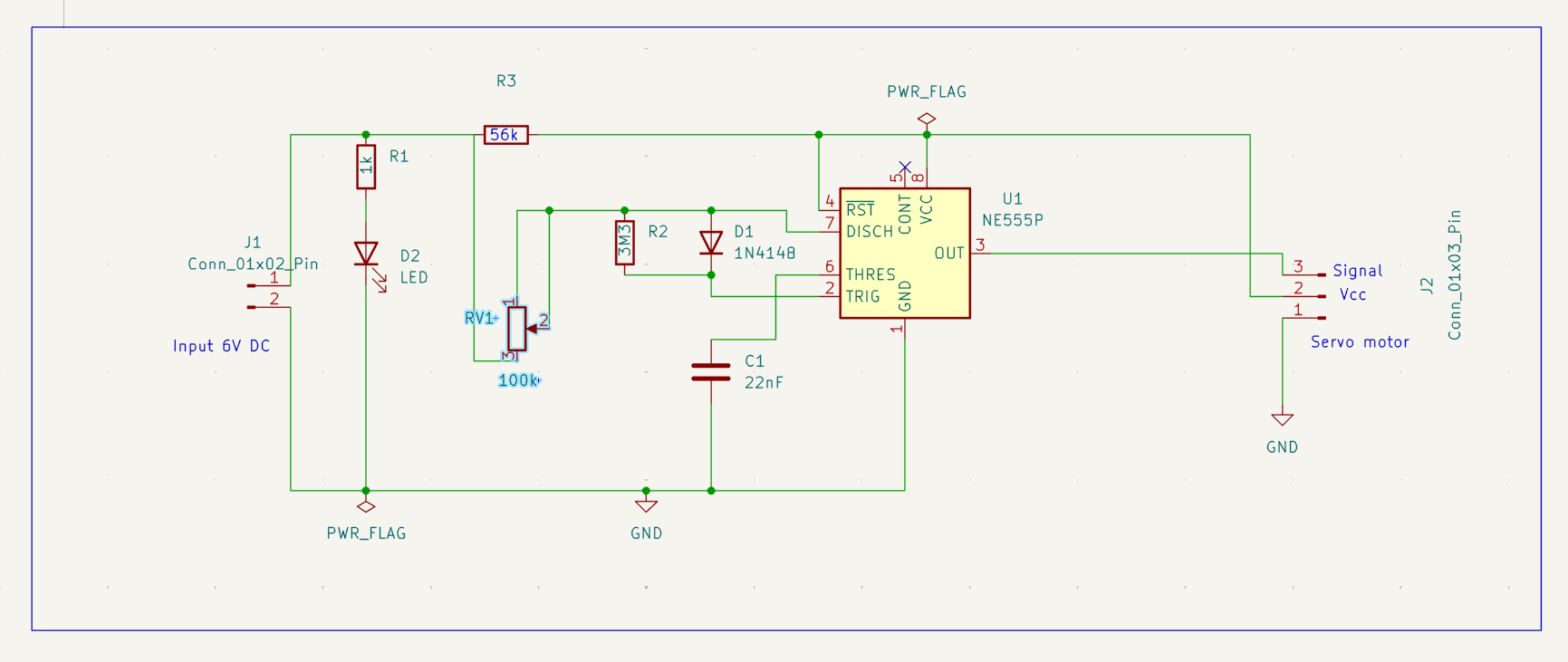

Servo motor tester, from the project README — From the project README

Main components on the Servo motor tester

Servo motor tester bill of materials (BOM)

10 components, 10 distinct parts.

Qty	Part	Footprint	Refs
1	NE555P	DIP-8_W7.62mm	U1
1	Conn_01x02_Pin	PinHeader_1x02_P2.54mm_Horizontal	J1
1	Conn_01x03_Pin	PinHeader_1x03_P2.54mm_Horizontal	J2
1	100k	POT_RD901F-40-15R1-B100K-00DL1	RV1
1	1N4148	D_DO-35_SOD27_P7.62mm_Horizontal	D1
1	LED	LED_D3.0mm	D2
1	22nF	C_Disc_D4.3mm_W1.9mm_P5.00mm	C1
1	1k	R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal	R1
1	3M3	R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal	R2
1	56k	R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal	R3

Servo motor tester design files

The KiCad project lives in the shruti-dorge18/KiCad repository on GitHub; these links point at the commit this page was built from.

Servo motor tester: common questions

How big is the Servo motor tester PCB?

The Servo motor tester measures 27.5 × 35 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Servo motor tester?

10 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Servo motor tester design files?

From the shruti-dorge18/KiCad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Servo motor tester design in my own project?

The repository has no license, so all rights stay with shruti-dorge18. Use it as a reference, and ask the author before reusing the design.
