Plate PCB layout, top view — open source board by sini6a

About the Plate PCB

Plate is an open source PCB design by sini6a, published on GitHub. It is a 2-layer board measuring 286.3 × 133.4 mm, with 50 components from 1 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

PHNX is an ergonomic keyboard featuring 54 MX compatible switches. It is inspired by the Miryoku layout and includes one additional row at the top along with macro keys on both sides. Powered by the famous ATMega32U4 microcontroller, it features a Type C connector with ESD protection.

PHNX is an ergonomic keyboard featuring 54 MX compatible switches. It is inspired by the Miryoku layout and includes one additional row at the top along with macro keys on both sides. Powered by the famous ATMega32U4 microcontroller, it features a Type C connector with ESD protection.

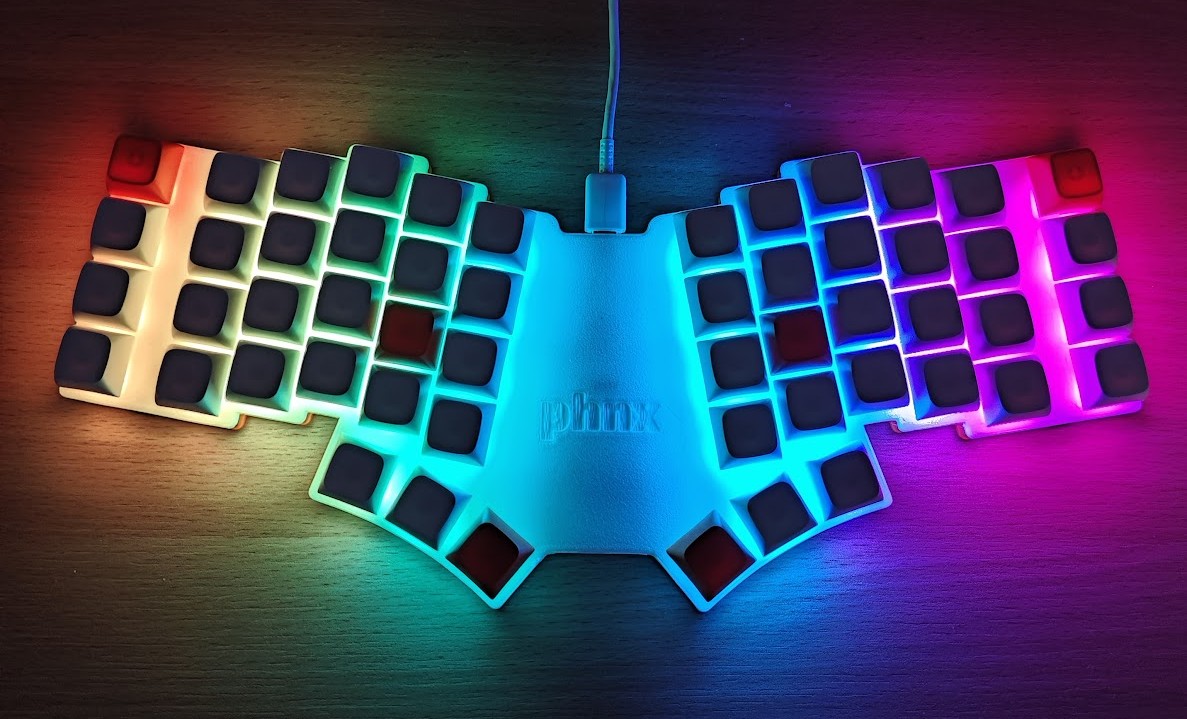

The keyboard is using QMK software and features an addressable LED on each key. Designed using KiCad 8, the boards were sponsored by PCBWay, known for their excellent PCB manufacturing capabilities.

Plate, from the project README
From the project README

Plate bill of materials (BOM)

50 components, 1 distinct parts.
