About the Bitcrane PCB

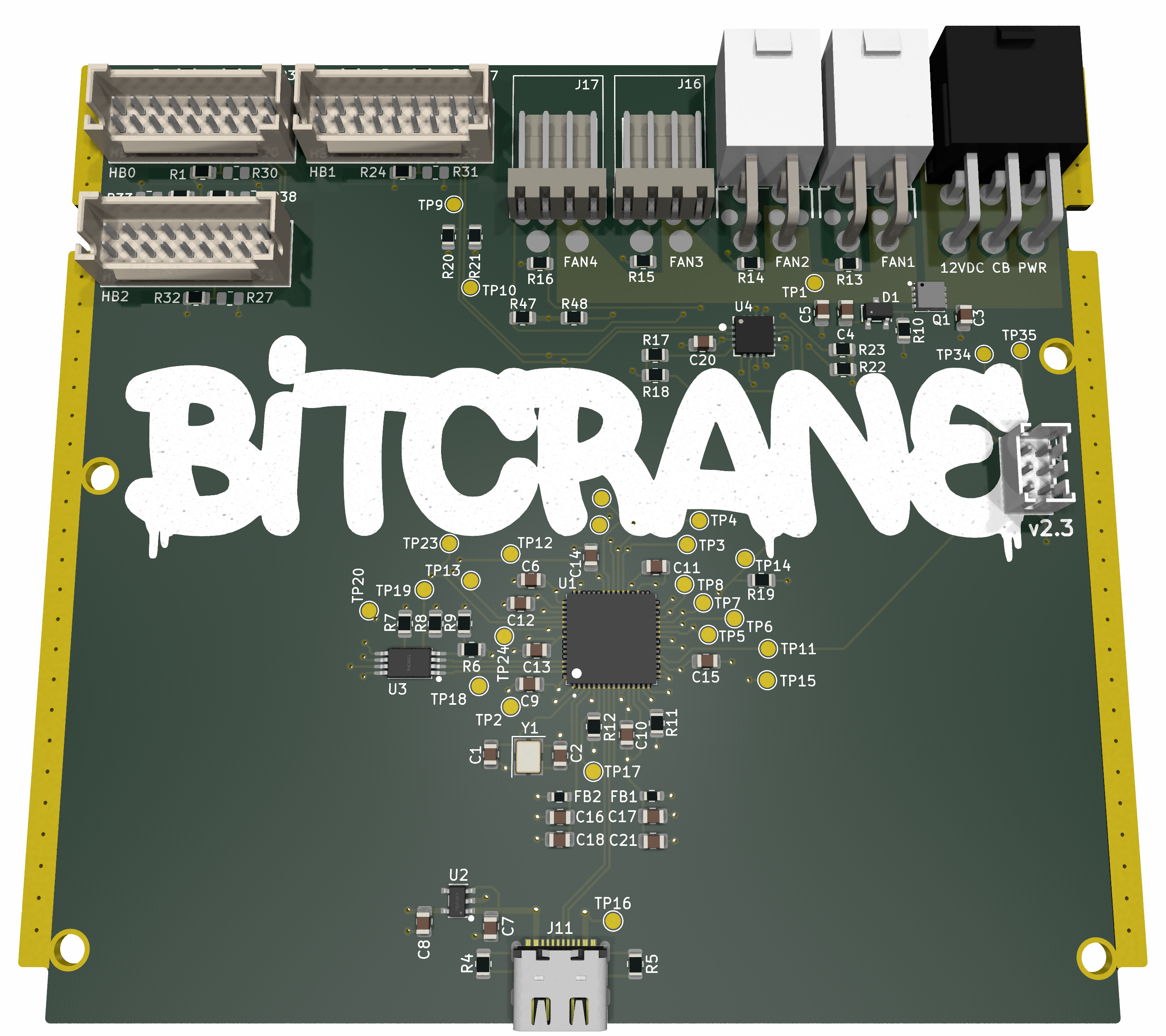

Bitcrane is an open source PCB design by skot, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 110 × 100 mm, with 70 components from 29 distinct parts.
Other key parts include the C2651882, C841192, C616741 and EMC2305. By type, the board carries 31 resistors, 20 capacitors, 10 connectors, 4 ICs, 2 inductors and 1 transistor.
From the project
a USB controlboard for Antminers
introducing the bitcrane. a quick tool to spit bytes at an Antminer hashboard over USB (and control fans & PSU).
- Updated the BOM (and some parts) to make this compatible with PCBA from jlcpcb.com. - Send them bitcrane BOM JLCPCB.csv and bitcrane-all-pos.csv from the Manufacturing Files folder. - JLCPCB Doesn't stock the EMC2305 (U4) and has a terrible price on the FT4232HQ (U1), so you should prolly assemble these yourself.
Main components on the Bitcrane
Bitcrane bill of materials (BOM)
70 components, 29 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2651882 FT4232HQ | QFN50P900X900X105-65N | U1 |
| 1 | C841192 RT9080-33GJ5 | TSOT-23-5_L2.9-W1.6-P0.95-LS2.8-BL | U2 |
| 1 | C616741 M93C46-WDW6TP | TSSOP-8_L4.4-W3.0-P0.65-LS6.4-BL | U3 |
| 1 | EMC2305 | QFN16_4x4MC_MCH | U4 |
| 1 | C264098 DMP3013SFV-7 | POWERPAK-1212-8_L3.1-W3.1-P0.65-LS3.3-BL | Q1 |
| 1 | C251626 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | C2845614 PSU Comm | CONN-TH_6P-P2.00_PHD-2X3A | J1 |
| 3 | C437089 2x9P 2mm | CONN-TH_X2026WV-2-09D-46SN | J2, J9, J10 |
| 1 | C492365 0455580003 | CONN-TH_50362462 | J3 |
| 2 | C2982043 61900411021 | CONN-TH_4P-P2.54_HCTL_HC-2510-4AW | J6, J7 |
| 1 | C2988369 USB_C_Receptacle_USB2.0 | USB-C-SMD_G-SWITCH_GT-USB-7010ASV | J11 |
| 2 | C54909 0353180420 | CONN-TH_4P-P4.20_5557-2X2AW | J14, J15 |
| 1 | C12773 LBZX84C12LT1G | SOT-23-3_L2.9-W1.6-P1.90-LS2.8-BR | D1 |
| 2 | C19330 FerriteBead_Small | R_0603_1608Metric | FB1, FB2 |
| 2 | C107113 27pf | C_0805_2012Metric | C1, C2 |
| 12 | C28233 0.1uF | C_0805_2012Metric | C3, C4, C9, C10, C11, C12, C13, C14 +4 |
| 1 | C440198 10uF 35V | C_0805_2012Metric | C5 |
| 1 | C159781 3.3uF | C_0805_2012Metric | C6 |
| 2 | C28323 1uF | C_0805_2012Metric | C7, C8 |
| 2 | C1746 47uF | C_0805_2012Metric | C18, C21 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 12 | C17673 4.7k | R_0805_2012Metric | R1, R2, R3, R19, R20, R21, R24, R26 +4 |
| 2 | C27834 5.1k | R_0805_2012Metric | R4, R5 |
| 1 | C17520 2.2k | R_0805_2012Metric | R6 |
| 7 | C17414 10k | R_0805_2012Metric | R7, R8, R9, R22, R23, R47, R48 |
| 2 | C17444 12k | R_0805_2012Metric | R10, R12 |
| 1 | C17513 1k | R_0805_2012Metric | R11 |
| 4 | C114527 36k | R_0805_2012Metric | R13, R14, R15, R16 |
| 1 | C17633 33k | R_0805_2012Metric | R17 |
| 1 | C17560 22k | R_0805_2012Metric | R18 |
Bitcrane design files
The KiCad project lives in the skot/bitcrane repository on GitHub; these links point at the commit this page was built from.
Bitcrane: common questions
How big is the Bitcrane PCB?
The Bitcrane measures 110 × 100 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Bitcrane?
70 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Bitcrane design files?
From the skot/bitcrane repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Bitcrane design in my own project?
Yes, under the terms of its GPL-3.0 license, which skot chose for the repository.
