AIOC PCB layout, top view — open source STM32 board by skuep
Simulate this board

About the AIOC PCB

AIOC is an open source STM32 PCB design by skuep, published on GitHub under the MIT license. It is a 2-layer board measuring 21 × 31.5 mm, with 47 components from 19 distinct parts.

Its main chip is the STM32F373CBTX, from the STM32 family. Other key parts include the MIC5330-SSYML. By type, the board carries 19 resistors, 16 capacitors, 4 diodes, 2 ICs, 2 connectors and 2 inductors.

It belongs with the rf & radio designs in this gallery.

From the project

Ham Radio All-in-one-Cable

You can watch the videos of the Temporarily Offline and HAM RADIO DUDE YouTube channels below.

There is also a German 4-part article with instructions here.

This gives you 5 (or more) SMD assembled AIOC. The only thing left to do is soldering on the TRS connectors (see here). The total bill should be around 60$ US for 5 pieces plus tax and shipping from China.

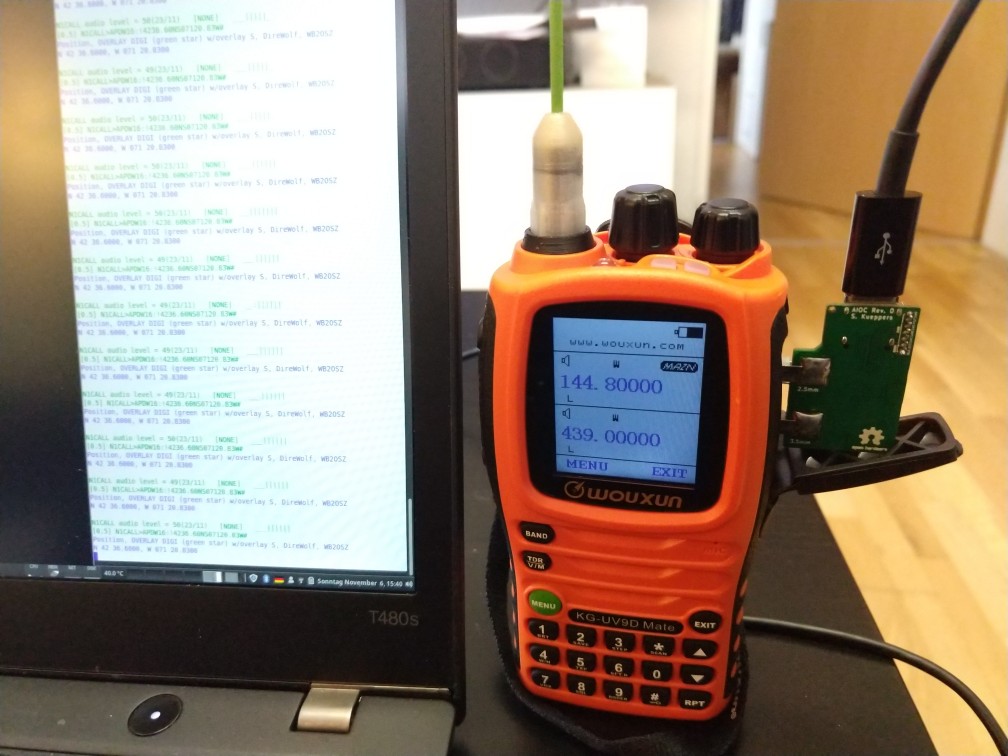

AIOC, from the project README
From the project README

Main components on the AIOC

MIC5330-SSYMLSTM32F373CBTX

AIOC bill of materials (BOM)

47 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MIC5330-SSYML
U1
1
STM32F373CBTX
STM32F373CBTx
U2
1
BC847BS
Q1
1
8MHZ/20PF
8MHz/20pF
Y1
1
USB4105-GF-A
J1
1
CONN_01X07_MALE
Conn_01x07_Male
J2
1
C72043
GREEN
D1
1
C2286
RED
D2
2
N.M.
D3, D4
2
C1002
600R@100MHz
FB1, FB2
2
22P/NP0
22p/NP0
C1, C2
6
100N
100n
C3, C8, C9, C12, C15, C16
7
4.7U/10V/X5R
4.7u/10V/X5R
C4, C5, C6, C7, C10, C13, C14
1
4.7N/NP0
4.7n/NP0
C11
6
1.5K
R1, R4, R10, R11, R18, R19
1
4.7K
R2
5
100R
R3, R8, R9, R15, R17
5
5.1K
R5, R6, R7, R14, R16
2
22R
R12, R13

AIOC design files

The KiCad project lives in the skuep/AIOC repository on GitHub; these links point at the commit this page was built from.

AIOC: common questions

What microcontroller does the AIOC use?

The AIOC is built around the STM32F373CBTX, from the STM32 family.

How big is the AIOC PCB?

The AIOC measures 21 × 31.5 mm, has 2 copper layers and is 1.2 mm thick.

How many components are on the AIOC?

47 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AIOC design files?

From the skuep/AIOC repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AIOC design in my own project?

Yes, under the terms of its MIT license, which skuep chose for the repository.

Can I test firmware for the AIOC without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
