Heatbed-007-03b
About the Heatbed-007-03b PCB

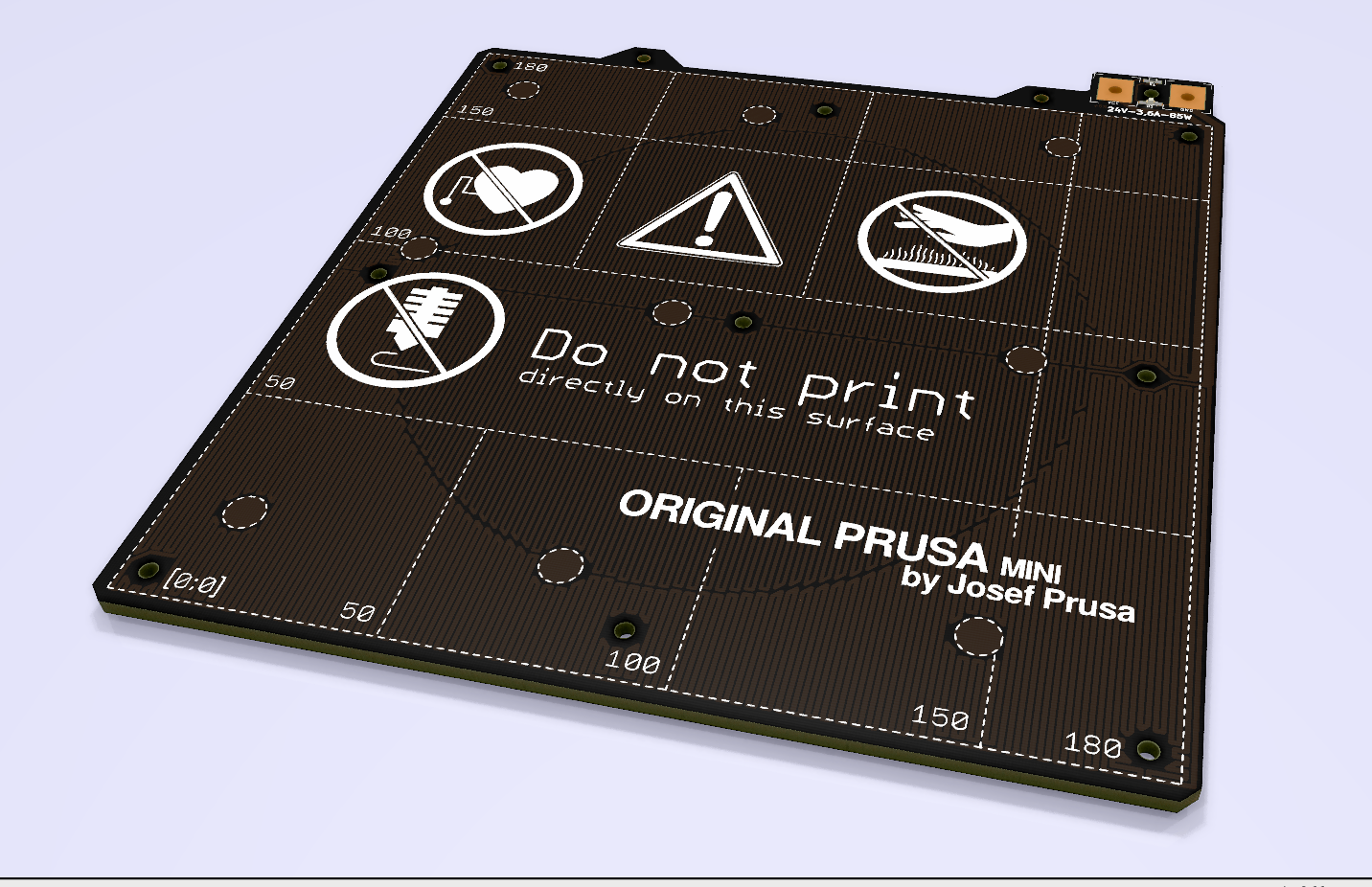

Heatbed-007-03b is an open source PCB design by sl1pkn07, published on GitHub. It is a 2-layer board measuring 186 × 202.4 mm, with 4 components from 4 distinct parts.
By type, the board carries 2 connectors, 1 diode and 1 resistor.
From the project
My Prusas. Official STLs for my Prusas printers. and other stuff
Heatbed-007-03b bill of materials (BOM)
4 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | HDR10 VCC On Shore | PCB-Large-pad | P1 |
| 1 | HDR10 GND On Shore | PCB-Large-pad | P2 |
| 1 | BAT54 LTST-C170CKT Diodes Incorporated | LED_0805 | D1 |
| 1 | 22R 2k2 Yageo | R_0805_HandSoldering | R1 |
Heatbed-007-03b design files
The KiCad project lives in the sl1pkn07/Prusa repository on GitHub; these links point at the commit this page was built from.
Heatbed-007-03b: common questions
How big is the Heatbed-007-03b PCB?
The Heatbed-007-03b measures 186 × 202.4 mm, has 2 copper layers and is 3 mm thick.
How many components are on the Heatbed-007-03b?
4 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Heatbed-007-03b design files?
From the sl1pkn07/Prusa repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Heatbed-007-03b design in my own project?
The repository has no license, so all rights stay with sl1pkn07. Use it as a reference, and ask the author before reusing the design.
