GyroLed2
About the GyroLed2 PCB
GyroLed2 is an open source STM32 PCB design by smariel, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 24.5 × 29.4 mm, with 22 components from 13 distinct parts.
Its main chip is the STM32L031G6Ux, from the STM32 family. Other key parts include the LSM6DS3 and NCP5623DTBR2G. By type, the board carries 10 capacitors, 5 resistors, 3 ICs, 1 connector, 1 battery holder and 1 switch.
It belongs with the sensors and power & battery designs in this gallery.

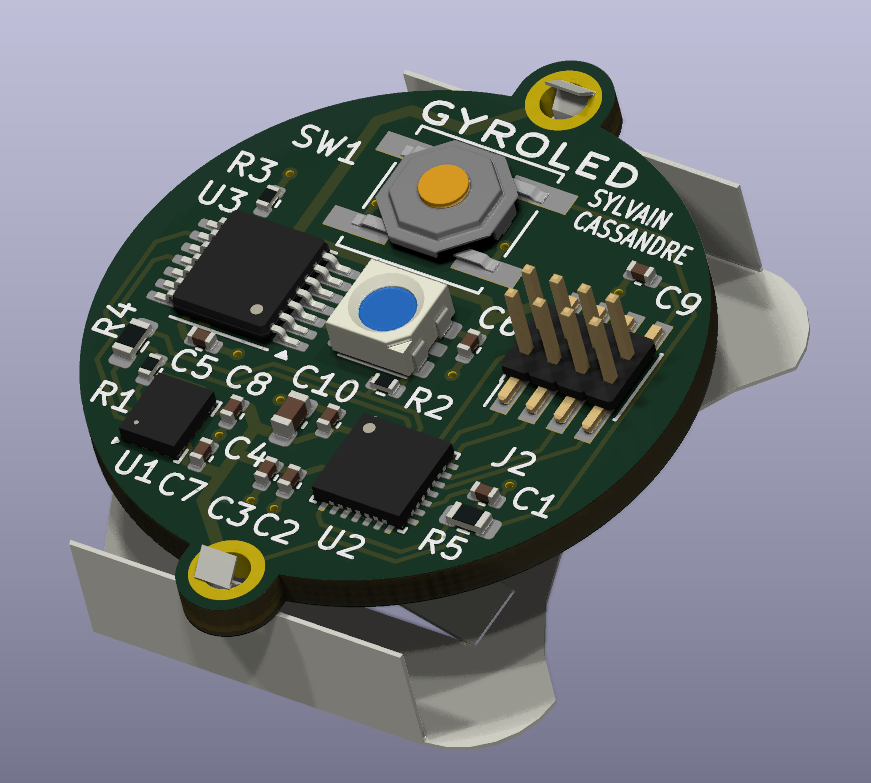

From the project
LED + GYRO + BATTERY
Main components on the GyroLed2
GyroLed2 bill of materials (BOM)
22 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LSM6DS3 | LGA-14_3x2.5mm_P0.5mm_LayoutBorder3x4y | U1 |
| 1 | STM32L031G6Ux | QFN-28_4x4mm_P0.5mm | U2 |
| 1 | NCP5623DTBR2G | TSSOP-14_4.4x5mm_P0.65mm | U3 |
| 1 | Conn_02x04_Odd_Even | PinHeader_2x04_P1.27mm_Vertical_SMD | J2 |
| 1 | Battery_Cell | BatteryHolder_Keystone_3009_1x2450 | BT1 |
| 1 | SW_Push | SW_Push_1P1T_NO_CK_KSC7xxJ | SW1 |
| 1 | LED_RGB | LED_ROHM_SMLVN6 | D1 |
| 6 | 100n | C_0402_1005Metric | C1, C2, C7, C8, C9, C10 |
| 3 | 1u | C_0402_1005Metric | C3, C5, C6 |
| 1 | 10u | C_0603_1608Metric | C4 |
| 2 | 10k | R_0402_1005Metric | R1, R2 |
| 1 | 72k | R_0402_1005Metric | R3 |
| 2 | 0 | R_0603_1608Metric | R4, R5 |
GyroLed2 design files
The KiCad project lives in the smariel/GyroLed2 repository on GitHub; these links point at the commit this page was built from.
- Layoutgyroled2/gyroled2.kicad_pcb
- Schematicgyroled2/gyroled2.kicad_sch
GyroLed2: common questions
What microcontroller does the GyroLed2 use?
The GyroLed2 is built around the STM32L031G6Ux, from the STM32 family.
How big is the GyroLed2 PCB?
The GyroLed2 measures 24.5 × 29.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the GyroLed2?
22 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the GyroLed2 design files?
From the smariel/GyroLed2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the GyroLed2 design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which smariel chose for the repository.
Can I test firmware for the GyroLed2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
