Battery switch

SolidEva·btrfld·btrfld_pcb/battery_switch.kicad_pcb

Battery switch PCB layout, top view — open source board by SolidEva
Simulate this board

About the Battery switch PCB

Battery switch is an open source PCB design by SolidEva, published on GitHub under the MIT license. It is a 2-layer board measuring 15.2 × 15.2 mm, with 3 components from 2 distinct parts.

By type, the board carries 2 connectors and 1 switch.

It belongs with the keyboards, iot & wireless and power & battery designs in this gallery.

From the project

a folding, tenting wireless keyboard

A foldable, portable sibling of the btrfly keyboard https://github.com/SolidHal/btrfly-keyboard

and a variant, the btrfld ulp (ultra low profile)

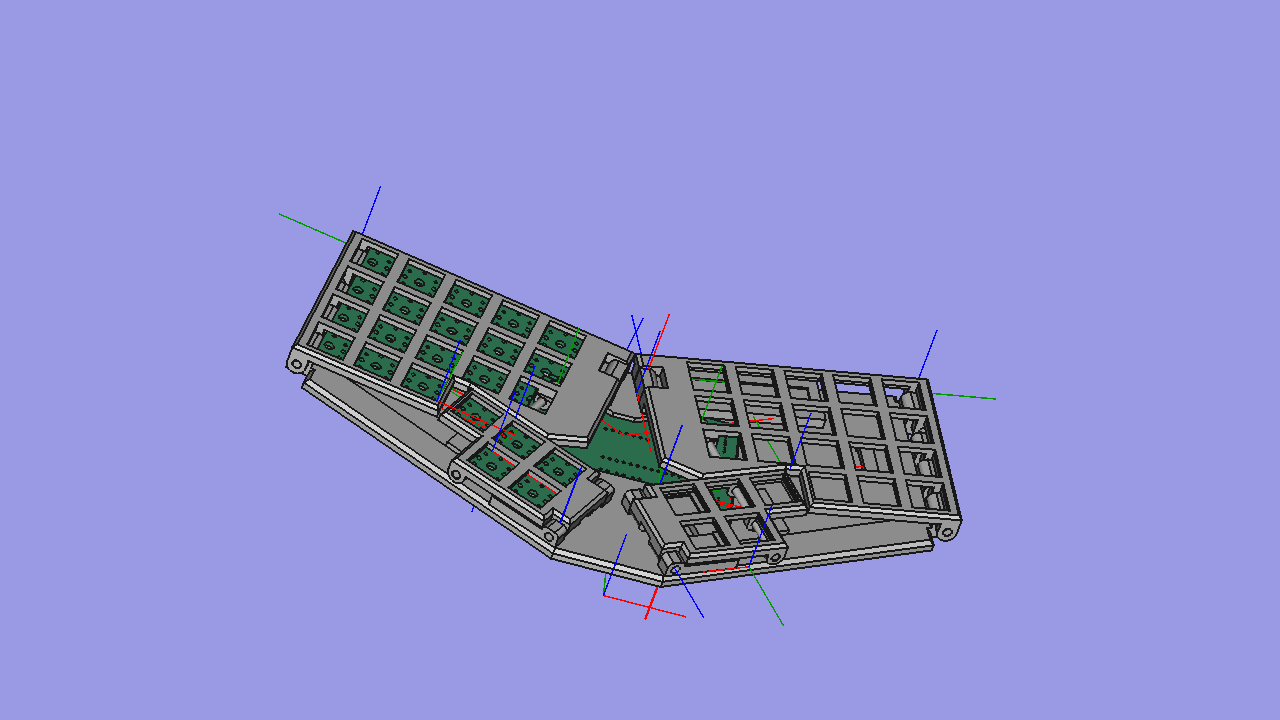

More images available in "FinishedPictures" folder the btrfld folding and unfolding

- btrfld - choc switches - ~22.5 mm thick

- btrfld ulp - cherry mx ulp switches - ~15.5 mm thick

- 15.5mm thick (btrfld ulp) - 22.5mm thick (btrfld)

Battery switch, from the project README
From the project README

Battery switch bill of materials (BOM)

3 components, 2 distinct parts.

QtyPartRefs
2
Conn_01x02
J1, J2
1
SW_SPDT
SW1

Battery switch design files

The KiCad project lives in the SolidEva/btrfld repository on GitHub; these links point at the commit this page was built from.

Battery switch: common questions

How big is the Battery switch PCB?

The Battery switch measures 15.2 × 15.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Battery switch?

3 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Battery switch design files?

From the SolidEva/btrfld repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Battery switch design in my own project?

Yes, under the terms of its MIT license, which SolidEva chose for the repository.
