ZXUnCore
About the ZXUnCore PCB
ZXUnCore is an open source PCB design by spark2k06, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 85.7 × 57.4 mm, with 26 components from 16 distinct parts.
Other key parts include the 6SLX9TQG144, FLASH SPI 2, AS7C34096A-10TCN, FLASH SPI 1 and 50MHz. By type, the board carries 10 capacitors, 8 ICs, 3 connectors, 2 inductors and 2 resistors.

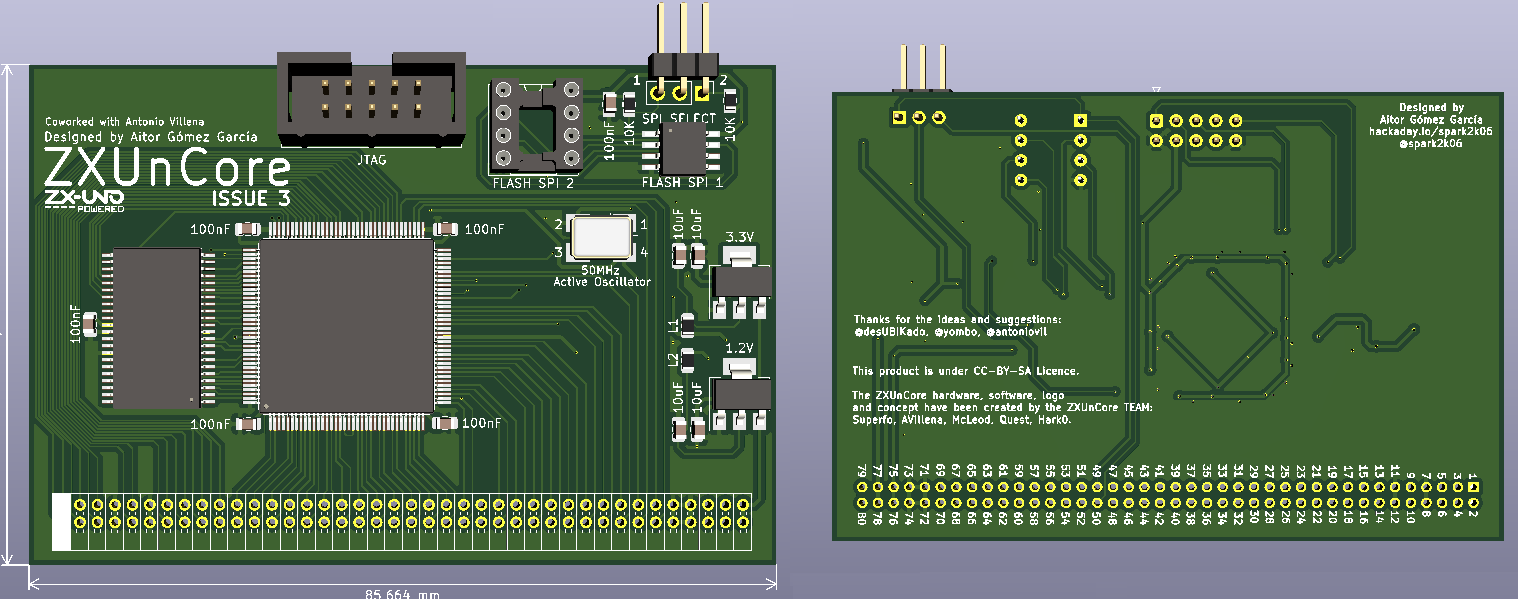

From the project
PINOUT (ZXUNO RGB666) / GRAPHICS GREMLIN ----------------------------------------
PINOUT (ZXUNO RGB666) / GRAPHICS GREMLIN ----------------------------------------
Se trata de un proyecto que hace uso de la FPGA Xilinx Spartan XC6SLX9-2TQG144C y ha sido desarrollado con la finalidad de ser 100% compatible con los cores desarrollados para el ZXUno. Los esquemáticos están basados en éste, gracias al trabajo previo que llevó a cabo K_Mirror con la migración del proyecto del ZXUno 4.1 a KiCad.
Main components on the ZXUnCore
ZXUnCore bill of materials (BOM)
26 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 6SLX9TQG144 | TQ144 | U1 |
| 1 | FLASH SPI 2 | DIP-8_W7.62mm_Socket | U2 |
| 1 | AS7C34096A-10TCN | TSOP44-II | U3 |
| 1 | FLASH SPI 1 | SO08-EIAJ | U4 |
| 1 | 50MHz | Crystal_SMD_0603-4Pin_6.0x3.5mm_HandSoldering | U5 |
| 1 | 3.3V | SOT-223 | U6 |
| 1 | 1.2V | SOT-223 | U7 |
| 1 | 50MHz | TSX-3225 | U8 |
| 1 | Conn_02x40_Counter_Clockwise | PinSocket_2x40_P2.00mm_Horizontal_Custom | J1 |
| 1 | SPI SELECT | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 1 | JTAG | IDC-Header_2x05_P2.54mm_Vertical | J3 |
| 1 | LOGO | PoweredByZXUno | G1 |
| 2 | 1K | R_0805_2012Metric | L1, L2 |
| 6 | 100nF | C_0805_2012Metric | C1, C3, C4, C5, C6, C7 |
| 4 | 10uF | C_0805_2012Metric | C8, C9, C10, C11 |
| 2 | 10K | R_0805_2012Metric | R1, R2 |
ZXUnCore design files
The KiCad project lives in the spark2k06/ZXUno4ALL repository on GitHub; these links point at the commit this page was built from.
ZXUnCore: common questions
How big is the ZXUnCore PCB?
The ZXUnCore measures 85.7 × 57.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ZXUnCore?
26 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the ZXUnCore design files?
From the spark2k06/ZXUno4ALL repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the ZXUnCore design in my own project?
Yes, under the terms of its GPL-3.0 license, which spark2k06 chose for the repository.
