BlenderMacroBoard PCB layout, top view — open source board by SpectralVectors
Simulate this board

About the BlenderMacroBoard PCB

BlenderMacroBoard is an open source PCB design by SpectralVectors, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 69.3 × 115.4 mm, with 14 components from 2 distinct parts.

It belongs with the keyboards designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

Open Hardware Controller for Blender (contains KiCAD, Gerber, CircuitPython, and Addon files)

An open-source, customizable hardware control surface for Blender.

KiCAD Gerber Files contains all the design files for KiCAD if you wish to modify the original design, as well as pregenerated Gerber files if you wish to have PCBs made from the existing design.

Pico contains all the files needed for the Raspberry Pi Pico. Drag and drop code.py and the lib folder onto your Pico at any time and replace the existing code.py and lib folder in order to update the board, then press the Reset button to complete the update. (This assumes you have already flashed your Pico with a .uf2, if not, check…

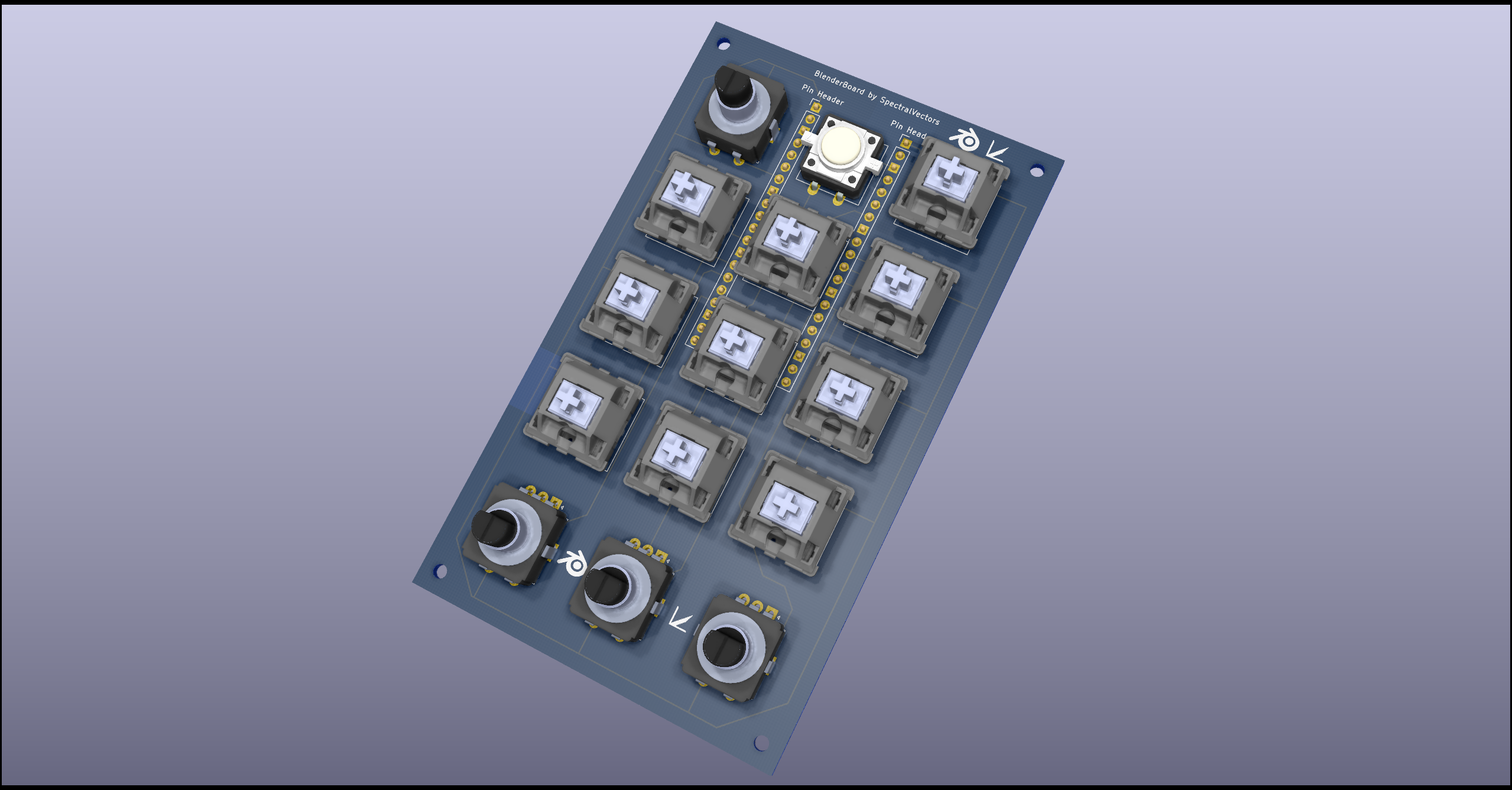

BlenderMacroBoard, from the project README
From the project README

BlenderMacroBoard bill of materials (BOM)

14 components, 2 distinct parts.

QtyPartRefs
10
SW_Cherry_MX_1.00u_PCB
Button0, Button1, Button2, Button3, Button4, Button5, Button6, Button7 +2
4
RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm
Rotary 0, Rotary 1, Rotary 2, Rotary 3

BlenderMacroBoard design files

The KiCad project lives in the SpectralVectors/BlenderMacroBoard repository on GitHub; these links point at the commit this page was built from.

BlenderMacroBoard: common questions

How big is the BlenderMacroBoard PCB?

The BlenderMacroBoard measures 69.3 × 115.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BlenderMacroBoard?

14 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the BlenderMacroBoard design files?

From the SpectralVectors/BlenderMacroBoard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the BlenderMacroBoard design in my own project?

Yes, under the terms of its GPL-3.0 license, which SpectralVectors chose for the repository.

Earlier revisions in the repo: BlenderMacroBoardPCB
