About the Mini synthesizer kicad PCB
Mini synthesizer kicad is an open source STM32 PCB design by SpeedUp-Tech, published on GitHub. It is a board, with 39 components from 13 distinct parts.
Its main chip is the STM32F411CEU6, from the STM32 family.
It belongs with the audio designs in this gallery.
From the project
Editable four-sheet KiCad schematic for a compact STM32-based synthesizer with USB-C power, controls, and an audio codec path, generated with SpeedUp for engineering review.

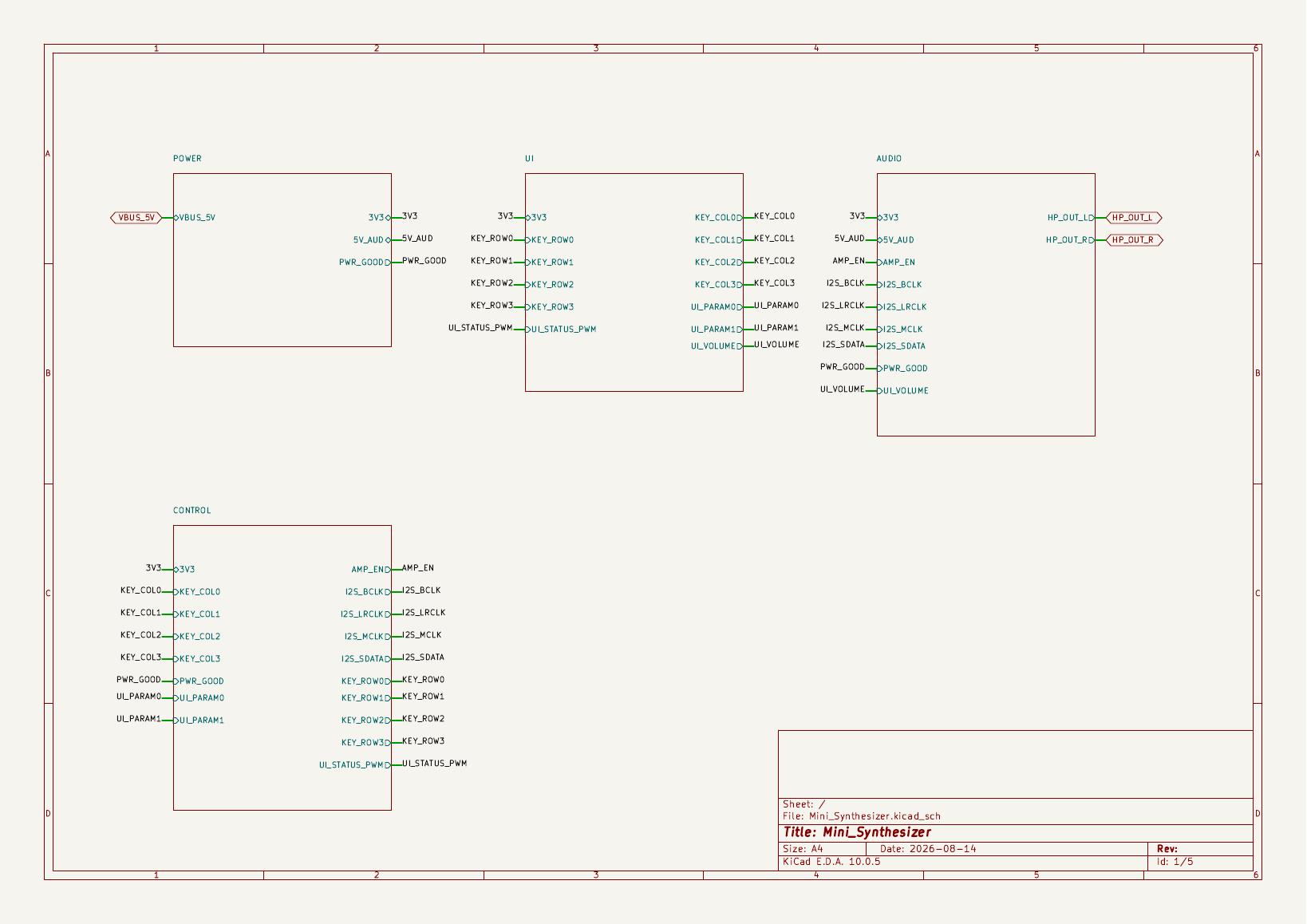

Generated with SpeedUp from the available project requirements, this repository contains an editable KiCad 10 schematic for a compact STM32-based synthesizer prepared for engineering review. The design is organized into four sheets covering USB-C power, the main controller, the key and potentiometer interface, and the audio path.
Download v0.1.2 · Open the live demo · Read the project case study
Mini synthesizer kicad bill of materials (BOM)
39 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 7 | 100n | C_0603_1608Metric | CTL_C1, CTL_C2, CTL_C3, CTL_C6, CTL_C8, CTL_C9, CTL_C12 |
| 2 | 4.7u | C_0805_2012Metric | CTL_C4, CTL_C5 |
| 1 | 1u | C_0603_1608Metric | CTL_C7 |
| 2 | 15p | C_0603_1608Metric | CTL_C10, CTL_C11 |
| 1 | PH1.27-03-05PWD | HDR-SMD_PH1.27-03-05PWD | CTL_J1 |
| 1 | 600ohm@100MHz | L_0603_1608Metric | CTL_L1 |
| 5 | 10k | R_0603_1608Metric | CTL_R1, CTL_R15, CTL_R16, CTL_R17, CTL_R18 |
| 8 | 100k | R_0603_1608Metric | CTL_R2, CTL_R11, CTL_R12, CTL_R13, CTL_R14, CTL_R21, CTL_R22, CTL_R23 |
| 4 | 33 | R_0603_1608Metric | CTL_R3, CTL_R4, CTL_R5, CTL_R6 |
| 4 | 100 | R_0603_1608Metric | CTL_R7, CTL_R8, CTL_R9, CTL_R10 |
| 2 | 1k | R_0603_1608Metric | CTL_R19, CTL_R20 |
| 1 | STM32F411CEU6 | UFQFPN-48_L7.0-W7.0-P0.50-BL-EP | CTL_U1 |
| 1 | 3225 8M 12PF 10PPM | CRYSTAL-SMD_4P-L3.2-W2.5-BL | CTL_Y1 |
Mini synthesizer kicad design files
The KiCad project lives in the SpeedUp-Tech/mini-synthesizer-kicad-schematic repository on GitHub; these links point at the commit this page was built from.
Mini synthesizer kicad: common questions
What microcontroller does the Mini synthesizer kicad use?
The Mini synthesizer kicad is built around the STM32F411CEU6, from the STM32 family.
How many components are on the Mini synthesizer kicad?
39 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Mini synthesizer kicad design files?
From the SpeedUp-Tech/mini-synthesizer-kicad-schematic repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.
Can I use the Mini synthesizer kicad design in my own project?
The repository has no license, so all rights stay with SpeedUp-Tech. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Mini synthesizer kicad without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
